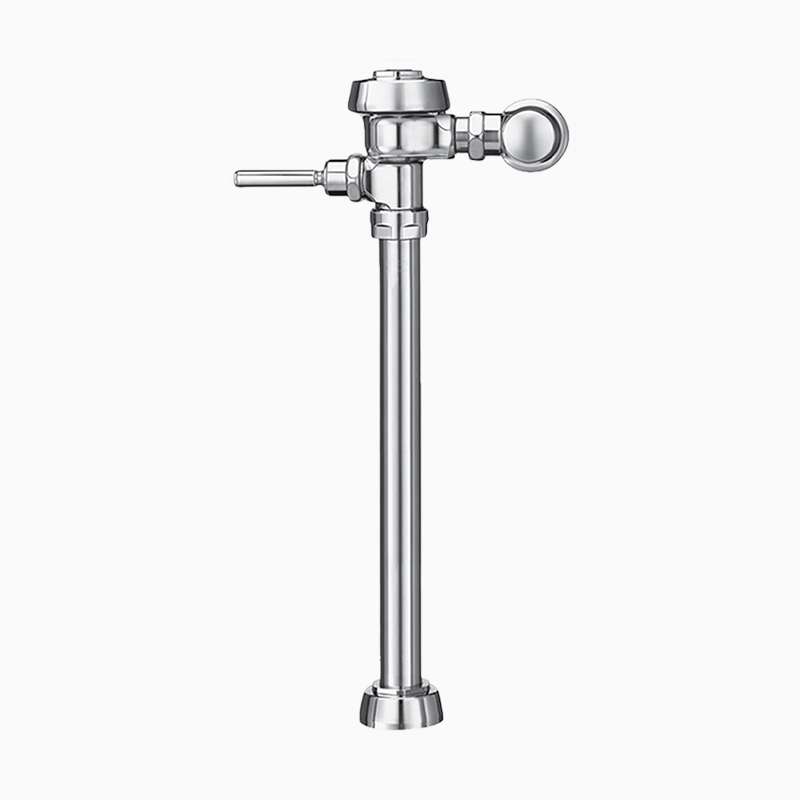

Sloan ROYAL 117 3010533 Exposed Manual Service Sink Flushometer
ROYAL 117-6.5-H-1-1/2-OFST-O
Code 3010533
6.5 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Front of Valve Handle, 1.5 Offset, Offset Vacuum Breaker
CODE NUMBER
3010533
DESCRIPTION
6.5 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single
Flush, Front of Valve Handle, 1.5 Offset, Offset Vacuum Breaker,
Royal® Exposed Manual Service Sink Flushometer.
DETAILS
Flush Volume: 6.5 gpf (24.6 Lpf)
Finish: Polished Chrome (CP)
Valve: Diaphragm
Valve Body Material: Semi-red Brass
Fixture Type: Service Sink
Fixture Connection: Top Spud
Rough-In Dimension: 24" (610mm)
Spud Coupling: 1 ½" (38mm)
Supply Pipe: 1" (25mm)
Handle: Front of Valve (H)
Vacuum Breaker: Offset (O)
Offset: 1.5 (1-1/2-OFST)
FEATURES
1” I.P.S. Screwdriver Bak-Chek® Angle Stop with Free Spinning Vandal Resistant Stop Cap
Sweat Solder Adapter with Cover Tube and Cast Set Screw Wall Flange
Non-Hold-Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
Diaphragm, Handle Packing and Vacuum Breaker to be molded from PERMEX® Rubber Compound for Chloramine Resistance
Handle on Front of Valve
11⁄2” Offset Vacuum Breaker
ADA Compliant Metal Oscillating Non-Hold-Open Handle
VALVE OPERATING PRESSURE (FLOWING)
15 – 80 PSI (103 – 552 kPa)
