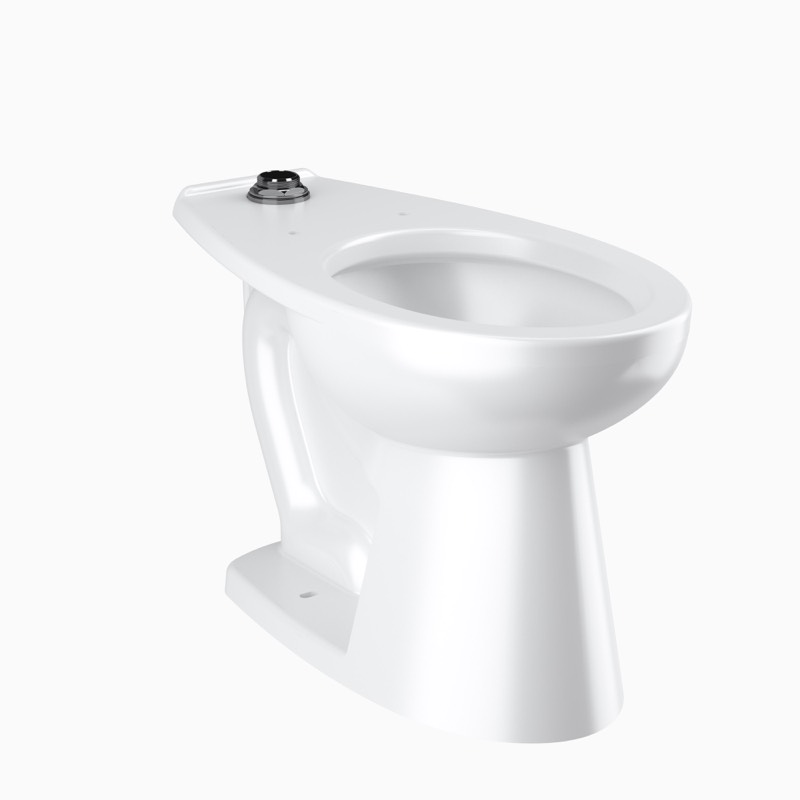

Sloan ST-2029 2102029 Floor Mounted ADA Water Closet
ST-2029
Code 2102029
Standard
Vitreous China Floor-Mounted ADA Water Closet
CODE NUMBER
2102029
DESCRIPTION
Vitreous China Floor-Mounted ADA Water Closet.
DETAILS
Flush Volume: 1.1 – 1.6 gpf (4.2 – 6.0 Lpf)
Flush volume determined by the flushometer used with the fixture
Rim Height: 17" (432mm)

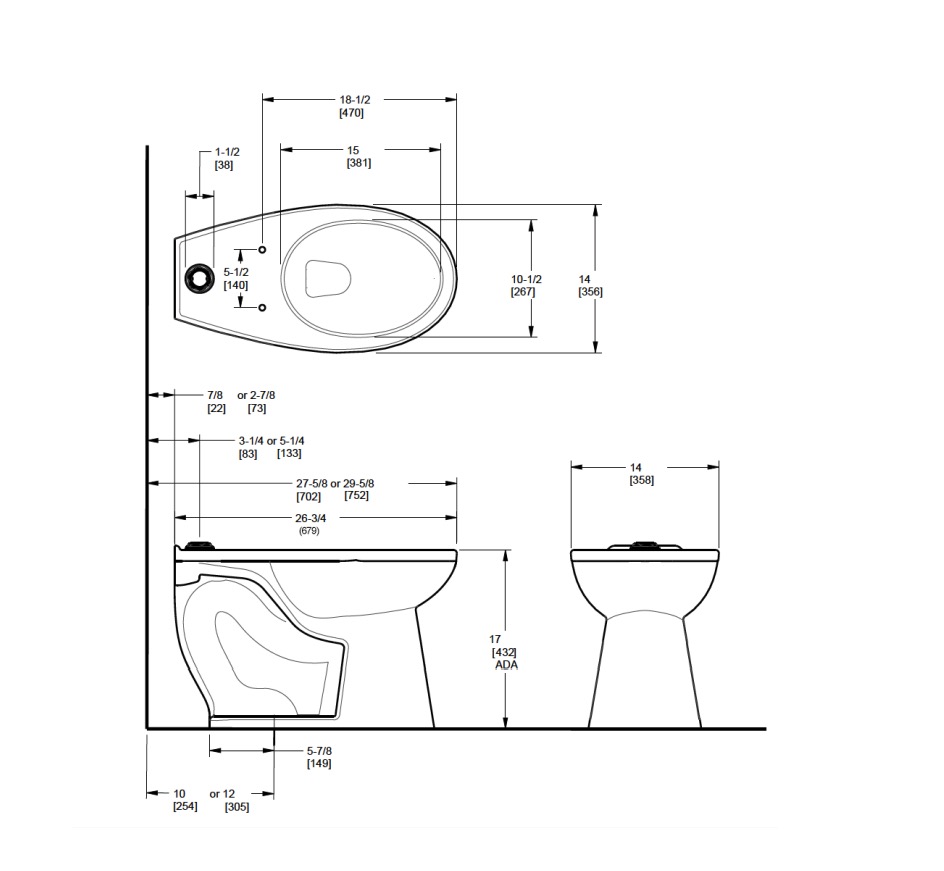

Nominal Dimensions: 26 ¾" × 14" × 17" (679 × 356 × 432mm)
FEATURES
White Vitreous China
Elongated bowl
Floor mounted, floor outlet
Siphon jet flushing action achieves 1000g Map score when used
with any Sloan flushometer
Water spot area: 10⅛" x 9⅜" (26 cm x 24 cm)
1½" I.P.S. top spud inlet
2⅛" fully glazed trapway
Closet bolts and caps included
Toilet seat not included
Static load rating of 1000 lbs. (See Notes)
RECOMMENDED SEATS
Bemis - 1955CT/1955SSCT & 2155CT/2155SSCT
Church - 295CT/295SSCT & 2155CT/2155SSCT
PLUMBING SYSTEM REQUIREMENTS
Minimum Flowing Pressure: 25 PSI (172 kPa)
Maximum Static Pressure: 80 PSI (552 kPa)
