Sloan WEUS-1006.1331 10061331 SU-1009 Urinal and SLOAN 186 ESS Flushometer
WEUS-1006.1331
Code 10061331
Standard

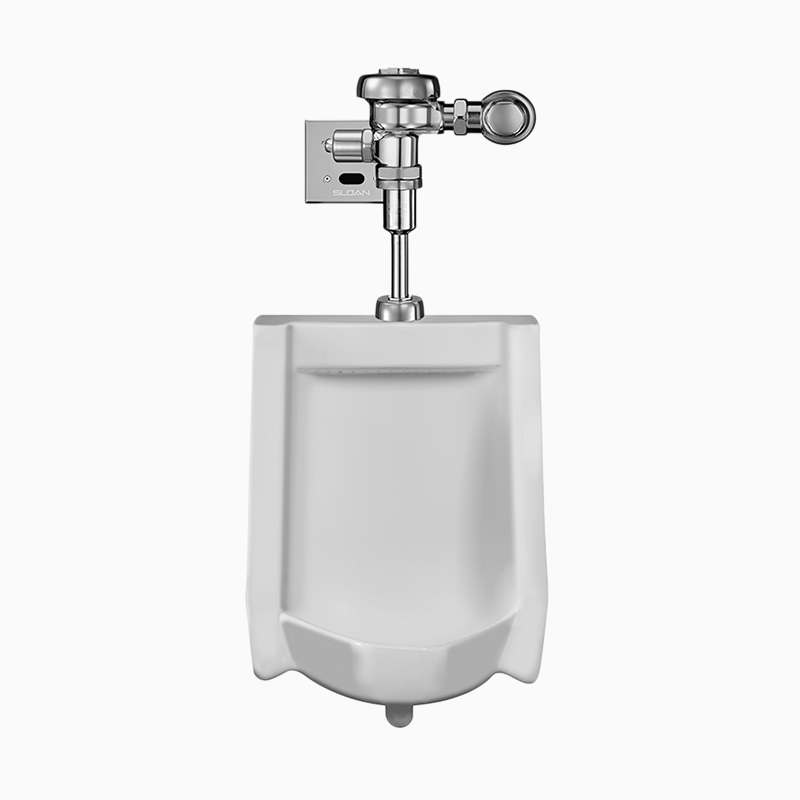

SU-1009 Urinal and SLOAN 186 ESS Flushometer
CODE NUMBER
10061331
DESCRIPTION
SU-1009 Urinal and SLOAN 186 ESS Flushometer.
COMPONENTS
Flushometer: Code 3772673
Urinal: Code 1101009
DETAILS
Flush Volume: 1.0 gpf (3.8 Lpf)
Nominal Dimensions: 14 ¼" × 17 ¼" × 25 ½" (362 × 438 × 648mm)
FLUSHOMETER FEATURES
High Chloramine Resistant PERMEX® Synthetic Rubber Diaphragm with Linear Filtered Bypass and Vortex Cleansing ActionTM
Vacuum Breaker with Flush Connection
Sweat Solder Adapter with Cover Tube and Cast Wall Flange
3⁄4” I.P.S. Screwdriver Bak-Chek® Angle Stop with Vandal Resistant Stop Cap
Spud Coupling and Spud Flange for 3⁄4” Top Spud
No External Volume Adjustment to Ensure Water Conservation
OPTIMA® EL-1500 Self-Adaptive Infrared Sensor with Indicator Light
Diaphragm, Stop Seat and Vacuum Breaker to be molded from PERMEX® rubber compound for Chloramine resistance
FIXTURE FEATURES
White Vitreous China
Washdown flushing action
Integral flushing rim
¾" I.P.S. top spud inlet
2" NPT outlet flange
Vandal resistant strainer assembly included
All mounting hardware included
100% factory flush tested
