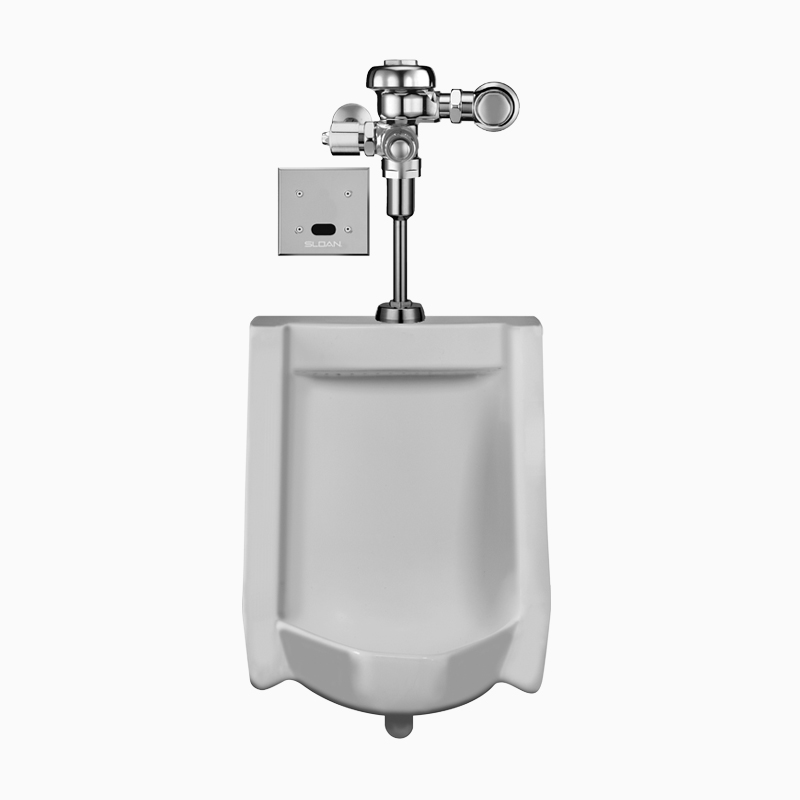

Sloan WEUS-1000.1332 10001332 SU-1009 Urinal and SLOAN 186 ESS Flushometer
WEUS-1000.1332
Code 10001332
Standard
SU-1009 Urinal and SLOAN 186 ESS Flushometer
CODE NUMBER
10001332
DESCRIPTION
SU-1009 Urinal and SLOAN 186 ESS Flushometer.
COMPONENTS
Flushometer: Code 3772645
Urinal: Code 1101009
DETAILS
Flush Volume: 0.125 gpf (0.5 Lpf)

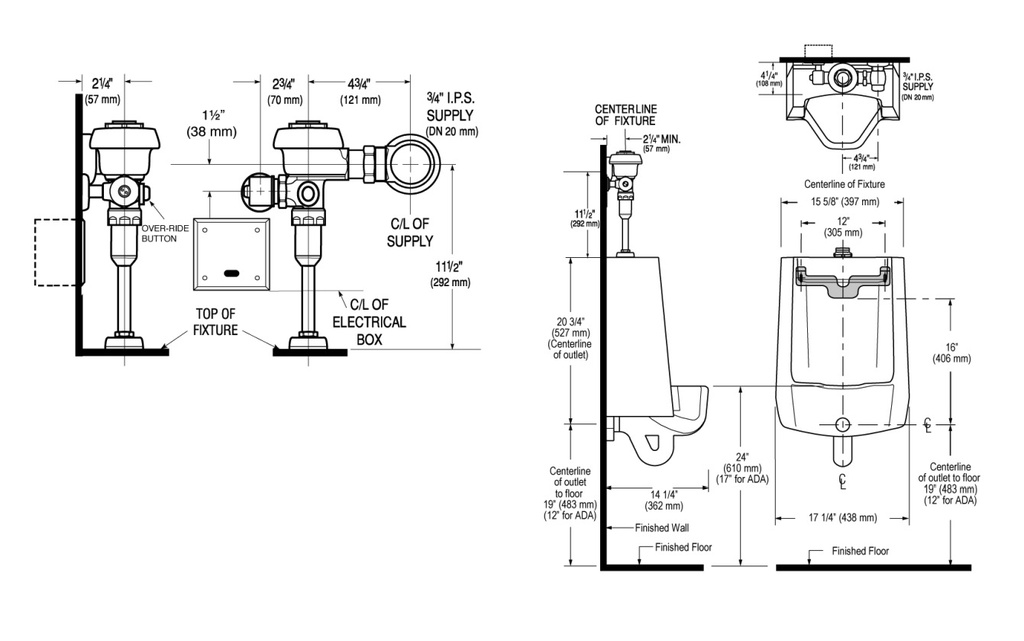

Nominal Dimensions: 14 ¼" × 17 ¼" × 25 ½" (362 × 438 × 648mm)
FLUSHOMETER FEATURES
PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
Handle Packing, Main Seat, Stop Seat and Vacuum Breaker Molded from PERMEX® Rubber Compound for Chloramine resistance
User friendly three (3) second Flush Delay
Sweat solder adapter with cover tube and cast wall flange with set screw
OPTIMA® EL-1500 Self-Adaptive Infrared Sensor with Indicator Light
“Walk By” Delay of Eight (8) Seconds Prevents Unintentional Flushes
Non-Hold-Open True Mechanical Override
Non-Hold-Open Integral Solenoid Operator, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
Courtesy FlushTM Non-Hold-Open True Mechanical Override
High Back Pressure Vacuum Breaker Flush Connection with OnePiece Bottom Hex Coupling Nut, Spud Coupling and Flange for 3⁄4” Top Spud
3⁄4” I.P.S. Screwdriver Bak-Chek® Angle Stop with Vandal Resistant Stop Cap
FIXTURE FEATURES
White Vitreous China
Washdown flushing action
Integral flushing rim
¾" I.P.S. top spud inlet
2" NPT outlet flange
Vandal resistant strainer assembly included
All mounting hardware included
100% factory flush tested
