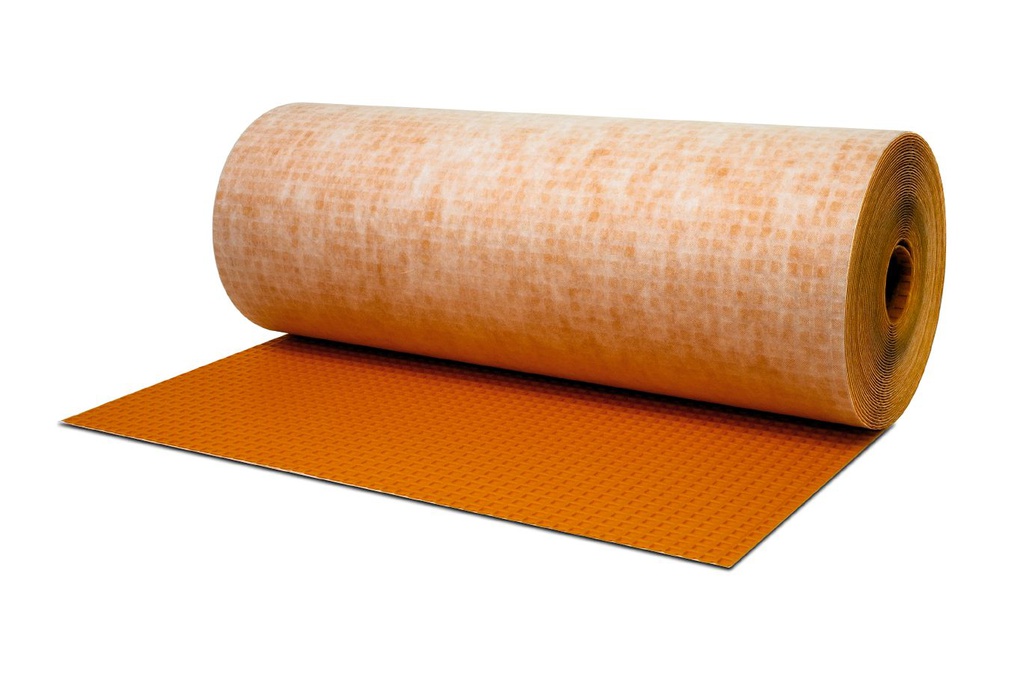

Schluter DITRA30M Ditra Uncoupling Membrane 3'3" X 98'5" = 323 Sf

Schluter DITRA30M Ditra Uncoupling Membrane 3'3" X 98'5" = 323 Sf

Schluter-DITRA & DITRA-XL
Uncoupling and waterproofing membrane

Schluter-DITRA and DITRA-XL are specifically designed for ceramic and stone tile installations. DITRA and DITRA-XL provide uncoupling to prevent cracked tile and grout. Made of polyethylene, DITRA and DITRA-XL serve as a waterproofing layer that protects moisture-sensitive substrates, such as plywood/OSB. Free-space on the underside of the matting provides a route for excess moisture and vapor to prevent damage to the tile layer above. DITRA and DITRA-XL perform all these functions while still providing adequate support/load distribution for the tile covering.
Provides uncoupling, waterproofing, vapor management, and heavy load distribution to ensure the durability and integrity of tile installations
Quick and easy to install on top of concrete, plywood, OSB, gypsum, existing vinyl floors, structural planks, sub-floors, and radiant heated floors
Convenient tile underlayment alternative to cement backer board or plywood
Use DITRA for ceramic tile installations over single layer plywood or OSB subfloors on joists spaced up to 19.2" o.c.
DITRA is only 1/8" (3.5 mm)-thick to provide the thinnest possible assembly without sacrificing performance
DITRA features cutting grooves for precise cuts and air release vents at the corners of the cutback cavities for faster filling
Use DITRA-XL for ceramic tile installations over single layer plywood or OSB subfloors on joists spaced up to 24" o.c.
DITRA-XL is 5/16 (7 mm)-thick to create an even transition between typical 5/16 (7 mm)-thick tile and 3/4 (19 mm)-thick hardwood flooring
DITRA-XL is ideal for installations requiring greater movement accommodation, such as applications using natural stone tile, large-format tile, etc.

DITRA UNCOUPLING MEMBRANE 3'3" X 98'5" = 323 SF
Product Code: DITRA30M

Schluter-DITRA is a polyethylene membrane with a grid structure of square cavities, each cut back in a dovetail configuration, and an anchoring fleece laminated to the underside. The anchoring fleece is embedded in thin-set mortar to provide a mechanical bond to the substrate. Tile is installed over DITRA using the thin-bed method in such a way that the mortar becomes mechanically anchored in the square, cutback cavities of the matting. Designed specifically for ceramic tile and dimension stone installations, DITRA serves as an uncoupling layer, waterproofing membrane, and vapor management layer that accommodates moisture from beneath the tile covering. Further, DITRA performs all these functions while still providing adequate support/load distribution for the tile covering. The combination of these four essential functions allows for the successful installation of tile over a wide range of substrates, including plywood/ OSB, concrete, gypsum, heated floors, etc. DITRA is 1/8" (3.5 mm) thick, which minimizes tile assembly thickness and reduces transitions to lower surface coverings (e.g., carpet, engineered wood, and vinyl). DITRA allows for ceramic tile application over single-layer plywood or OSB subfloors on joists spaced up to 19.2" (488 mm) o.c.
