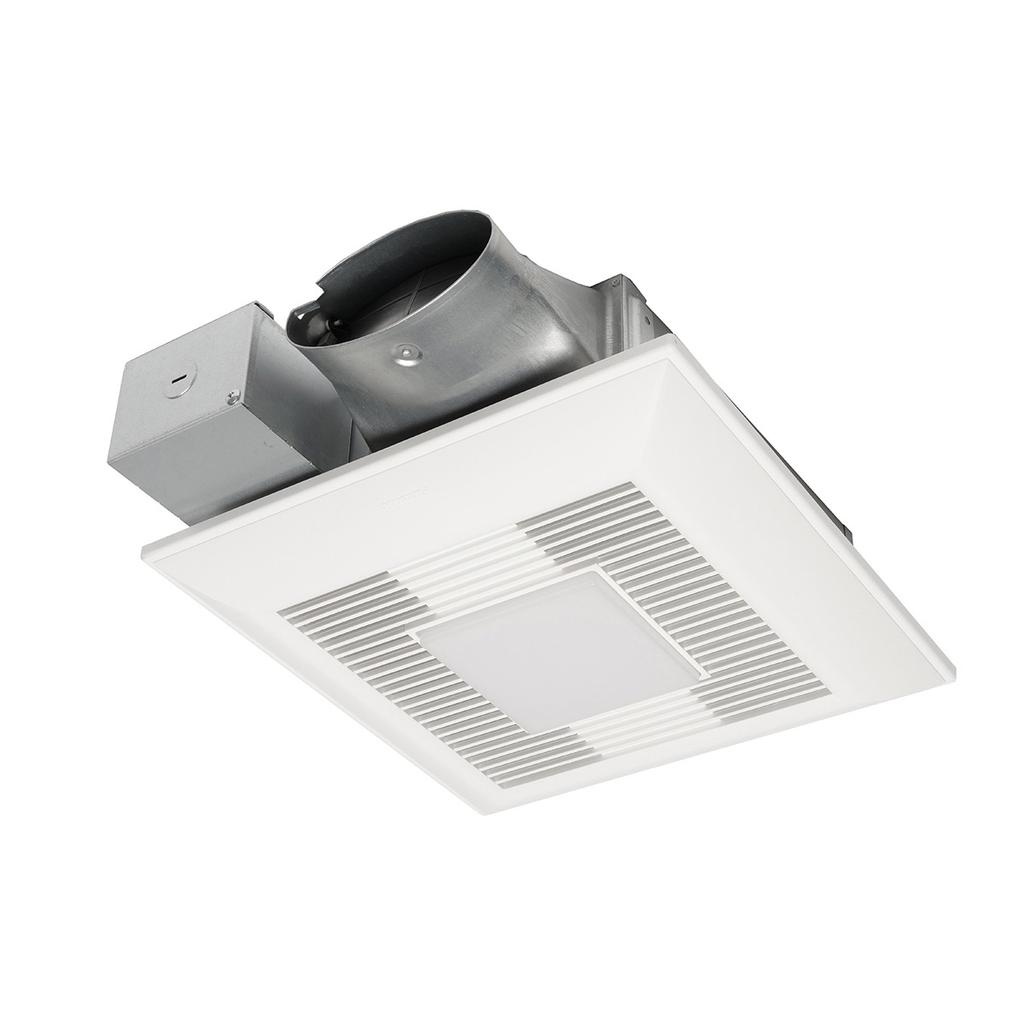

Panasonic FV0810VSSL1 WhisperValue DC Fan With Light

    400.12 280.08 280.08 CAD

    400.12

    This combination does not exist.

    Add to Cart Buy Now


    Panasonic FV0810VSSL1 WhisperValue DC Fan With Light

    PRODUCT DETAILS
    WhisperValue DC Fan/LED Light with multi-speed for ASHRAE 62.2 compliance allows you to select the proper CFM settings to satisfy ASHRAE 62.2 continuous ventilation requirements. It is the lowest profile ENERGY STAR rated ventilation fan available. Ideal for residential construction (Single & Multi-Family) and Manufactured Homes. It features Panasonics revolutionary ECM motor with SmartFlow optimum CFM technology, and incorporates a Pick-A-Flow airflow selector switch to customize airflow (80-100 CFM).

    KEY FEATURES
    Revolutionary ECM motor with SmartFlow technology for optimum CFM output
    Pick-A-Flow Airflow Selector - one fan, you choose the CFM (80 or 100 CFM)
    Incorporates one 10W dimmable LED chip panel with <1W LED night light for warm, energy efficient illumination (night light must be wired separately)
    Built-in multi-speed control for ASHRAE 62.2 continuous ventilation compliance
    Elegant grille design compliments the aesthetics of any bathroom

    Air Volume Exhaust (CFM): 30, 31, 40, 41, 50, 52, 60, 64, 70, 72, 80, 81, 100,101 @ 0.1" SP and @ 0.25" SP
    Master Carton Dimensions (HxWxD): 9.06 x 14.17 x 16.93
    CFM: 50-70. 80-110
    Other Approved Codes and Standards: Yes
    Color Rendering Index: 90
    Color Temperature (Kelvin): 3,000
    Construction Type: Single-Family/Manufactured Housing. Multi-Family. Hospitality/Assisted Living/Student Housing. Renovation/Remodeling
    Current (Amps): 50 CFM= .08A, 70 CFM = 10.0 CFM= .13A, 100 CFM=.18A
    Ventilation Design Approach: Continuous Ventilation. Spot Ventilation
    Duct Diameter: 4" Oval
    Energy Efficiency (CFM/Watt): 50 CFM= 12.1 CFM/W, 70 CFM=11.2 CFM/80 CFM=10.0 CFM/W, 100 CFM = 8.2 CFM/W
    ENERGY STAR Certified: Yes
    Fan Type: Fan Only
    Grille Size (in sq.): 13"
    Industry: Residential. Light Commercial
    Installation: Ceiling Mount, Wall Mount (UL), Tub/Shower (UL)
    Lamp Watts: 10
    Lumens (lm): 700
    Lumens Per Watt (LPW): 70
    Motor Type (AC/DC): ECM
    Mounting Opening (in sq.): 10-1/2"
    Mounting Options: Ceiling Mount. Wall Mount (UL). Tub/Shower (UL)
    Night Light: 0.2
    Noise (Sones): 50 @ 0.1" SP = < 0.3, 52 @ 0.25" SP = 0.5, 70 @ 0.1" SP = < 0.3, 72 @ 0.25" SP = 0.06, 80 @ 0.1" SP = 0.4, 81 @ 0.25" SP = 0.8, 100 @ 0.1" SP = 0.9, 101 @ 0.25" SP = 1.3
    Power Consumption (Watts): 50 CFM= 4.5W, 80 CFM= 8.5W, 100 CFM=12.4W
    Power Rating (V/Hz): 120/60
    Product Family Name: WhisperValue DC
    Radiation Damper Available: Yes
    Rated Life (hours): 50,000
    Type of Lamp Socket: LED chip
    UL Listed for Tub/Shower Enclosure when GFCI Protected: Yes
    Warranty: 6 year DC Motor, 3 Year Parts
    Master Carton Gross Weight (lbs.): 9.9

    Air Volume Exhaust (CFM) 30, 31, 40, 41, 50, 52, 60, 64, 70, 72, 80, 81, 100,101 @ 0.1" SP and @ 0.25" SP
    Master Carton Dimensions (HxWxD) 9.06 x 14.17 x 16.93
    CFM 50-70. 80-110
    Other Approved Codes and Standards Yes
    Color Rendering Index 90
    Color Temperature (Kelvin) 3,000
    Construction Type Single-Family/Manufactured Housing. Multi-Family. Hospitality/Assisted Living/Student Housing. Renovation/Remodeling
    Current (Amps) 50 CFM= .08A, 70 CFM = 10.0 CFM= .13A, 100 CFM=.18A
    Ventilation Design Approach Continuous Ventilation. Spot Ventilation
    Duct Diameter 4" Oval
    Energy Efficiency (CFM/Watt) 50 CFM= 12.1 CFM/W, 70 CFM=11.2 CFM/80 CFM=10.0 CFM/W, 100 CFM = 8.2 CFM/W
    ENERGY STAR Certified Yes
    Fan Type Fan Only
    Grille Size (in sq.) 13"
    Industry Residential. Light Commercial
    Installation Ceiling Mount, Wall Mount (UL), Tub/Shower (UL)
    Lamp Watts 10
    Lumens (lm) 700
    Lumens Per Watt (LPW) 70
    Motor Type (AC/DC) ECM
    Mounting Opening (in sq.) 10-1/2"
    Mounting Options Ceiling Mount. Wall Mount (UL). Tub/Shower (UL)
    Night Light 0.2
    Noise (Sones) 50 @ 0.1" SP = < 0.3, 52 @ 0.25" SP = 0.5, 70 @ 0.1" SP = < 0.3, 72 @ 0.25" SP = 0.06, 80 @ 0.1" SP = 0.4, 81 @ 0.25" SP = 0.8, 100 @ 0.1" SP = 0.9, 101 @ 0.25" SP = 1.3
    Power Consumption (Watts) 50 CFM= 4.5W, 80 CFM= 8.5W, 100 CFM=12.4W
    Power Rating (V/Hz) 120/60
    Product Family Name WhisperValue DC
    Radiation Damper Available Yes
    Rated Life (hours) 50,000
    Type of Lamp Socket LED chip
    UL Listed for Tub/Shower Enclosure when GFCI Protected Yes
    Warranty 6 year DC Motor, 3 Year Parts
    Master Carton Gross Weight (lbs.) 9.9
