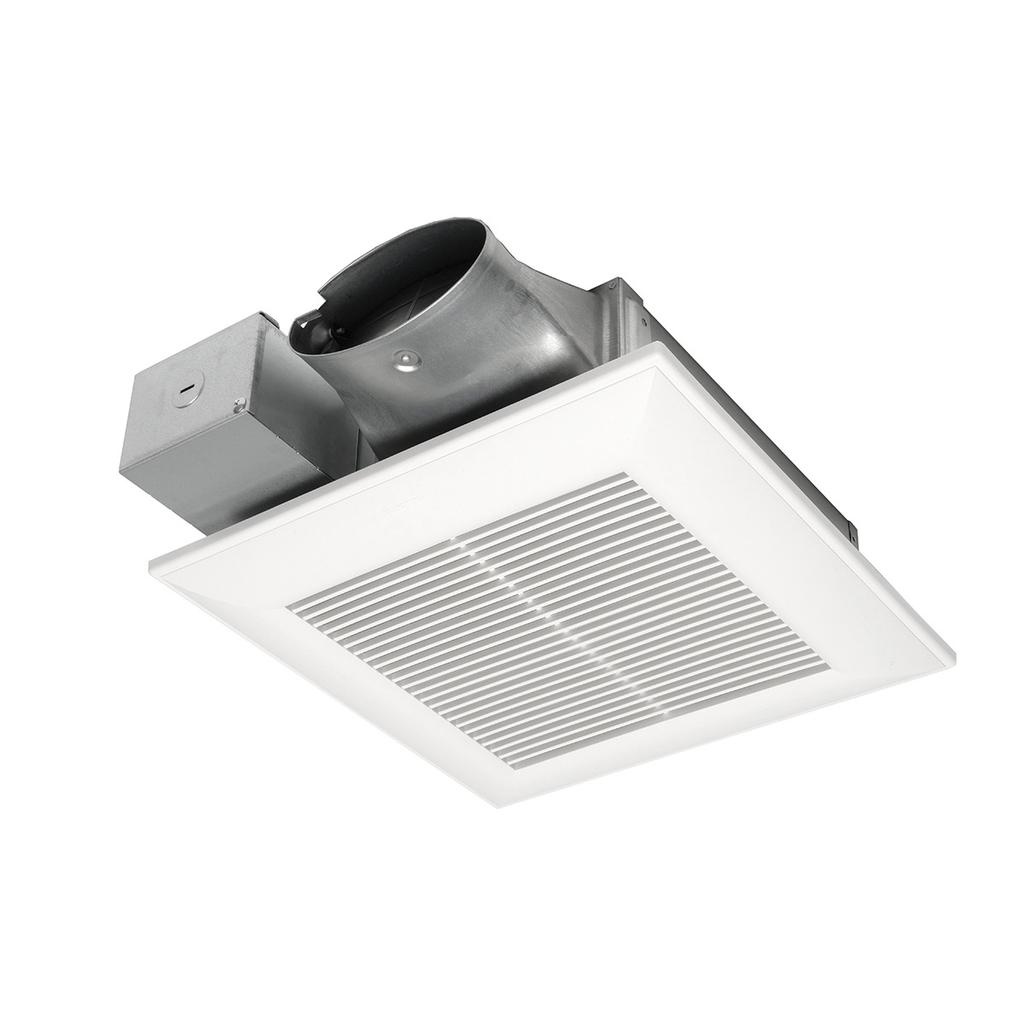

Panasonic FV0810VSS1 WhisperValue DC 80 100 CFM Fan

    258.38 180.87 180.87 CAD

    258.38

    This combination does not exist.

    Add to Cart Buy Now


    Panasonic FV0810VSS1 WhisperValue DC 80 100 CFM Fan

    PRODUCT DETAILS
    WhisperValue DC with multi-speed allows you to select the proper CFM settings to satisfy ASHRAE 62.2 code compliance for continuous ventilation requirements. As the lowest profile ENERGY STAR rated ventilation fan available it is ideal for all types of residential and multi-family construction.

    Features our revolutionary ECM motor with SmartFlow technology to remove unhealthy air from any space. Pick-A-Flow airflow selector switch enables you to customize airflow settings at your choice of 80 or 100 CFM.

    KEY FEATURES
    Revolutionary ECM motor with SmartFlow technology for optimum CFM output
    Pick-A-Flow airflow selector - one fan, you choose the CFM (80 or 110)
    Built-in Multi-Speed Control for ASHRAE 62.2 compliance
    Multi-Speed control with 20 minute time delay for ASHRAE 62.2 compliance
    Elegant grille design compliments the aesthetics of any bathroom

    Air Volume Exhaust (CFM): 30, 31, 40, 41, 50, 52, 50, 64, 70, 72, 80, 81, 100,101 @ 0.1" SP and @ 0.25" SP
    Master Carton Dimensions (HxWxD): 6.89 x 14.25 x 16.73
    CFM: 50-70. 80-110
    Other Approved Codes and Standards: Yes
    Construction Type: Single-Family/Manufactured Housing. Multi-Family. Hospitality/Assisted Living/Student Housing. Renovation/Remodeling
    Current (Amps): 50 CFM= .08A, 70 CFM= 10.0 CFM= .13A, 100 CFM=.18A
    Ventilation Design Approach: Continuous Ventilation. Spot Ventilation
    Duct Diameter: 4" Oval
    Energy Efficiency (CFM/Watt): 50 CFM= 12.1 CFM/W, 70 CFM= 6.5 CFM/80 CFM= 10.0 CFM/W, 100 CFM = 8.2 CFM/W
    ENERGY STAR Certified: Yes
    Fan Type: Fan Only
    Grille Size (in sq.): 13"
    Industry: Residential. Light Commercial
    Installation: Ceiling Mount, Wall Mount (UL), Tub/Shower (UL)
    Motor Type (AC/DC): ECM
    Mounting Opening (in sq.): 10-1/2"
    Mounting Options: Ceiling Mount. Wall Mount (UL). Tub/Shower (UL)
    Noise (Sones): 50 @ 0.1" SP = < 0.3, 52 @ 0.25" SP = 0.5, 70 @ 0.1" SP = < 0.3, 72 @ 0.25" SP = 0.06, 80 @ 0.1" SP = 0.4, 81 @ 0.25" SP = 0.8, 100 @ 0.1" SP = 0.9, 101 @ 0.25" SP = 1.3
    Power Consumption (Watts): 50 CFM= 4.5W, 80 CFM= 8.5W, 100 CFM= 12.4W
    Power Rating (V/Hz): 120/60
    Product Family Name: WhisperValue DC
    Radiation Damper Available: Yes
    UL Listed for Tub/Shower Enclosure when GFCI Protected: Yes
    Warranty: 6 year DC Motor, 3 Year Parts
    Master Carton Gross Weight (lbs.): 9.0

    Air Volume Exhaust (CFM) 30, 31, 40, 41, 50, 52, 50, 64, 70, 72, 80, 81, 100,101 @ 0.1" SP and @ 0.25" SP
    Master Carton Dimensions (HxWxD) 6.89 x 14.25 x 16.73
    CFM 50-70. 80-110
    Other Approved Codes and Standards Yes
    Construction Type Single-Family/Manufactured Housing. Multi-Family. Hospitality/Assisted Living/Student Housing. Renovation/Remodeling
    Current (Amps) 50 CFM= .08A, 70 CFM= 10.0 CFM= .13A, 100 CFM=.18A
    Ventilation Design Approach Continuous Ventilation. Spot Ventilation
    Duct Diameter 4" Oval
    Energy Efficiency (CFM/Watt) 50 CFM= 12.1 CFM/W, 70 CFM= 6.5 CFM/80 CFM= 10.0 CFM/W, 100 CFM = 8.2 CFM/W
    ENERGY STAR Certified Yes
    Fan Type Fan Only
    Grille Size (in sq.) 13"
    Industry Residential. Light Commercial
    Installation Ceiling Mount, Wall Mount (UL), Tub/Shower (UL)
    Motor Type (AC/DC) ECM
    Mounting Opening (in sq.) 10-1/2"
    Mounting Options Ceiling Mount. Wall Mount (UL). Tub/Shower (UL)
    Noise (Sones) 50 @ 0.1" SP = < 0.3, 52 @ 0.25" SP = 0.5, 70 @ 0.1" SP = < 0.3, 72 @ 0.25" SP = 0.06, 80 @ 0.1" SP = 0.4, 81 @ 0.25" SP = 0.8, 100 @ 0.1" SP = 0.9, 101 @ 0.25" SP = 1.3
    Power Consumption (Watts) 50 CFM= 4.5W, 80 CFM= 8.5W, 100 CFM= 12.4W
    Power Rating (V/Hz) 120/60
    Product Family Name WhisperValue DC
    Radiation Damper Available Yes
    UL Listed for Tub/Shower Enclosure when GFCI Protected Yes
    Warranty 6 year DC Motor, 3 Year Parts
    Master Carton Gross Weight (lbs.) 9.0
