Moen UT3322 Belfield M-Core 3S W/Xfer V/O Trim Ch
Model: UT3322

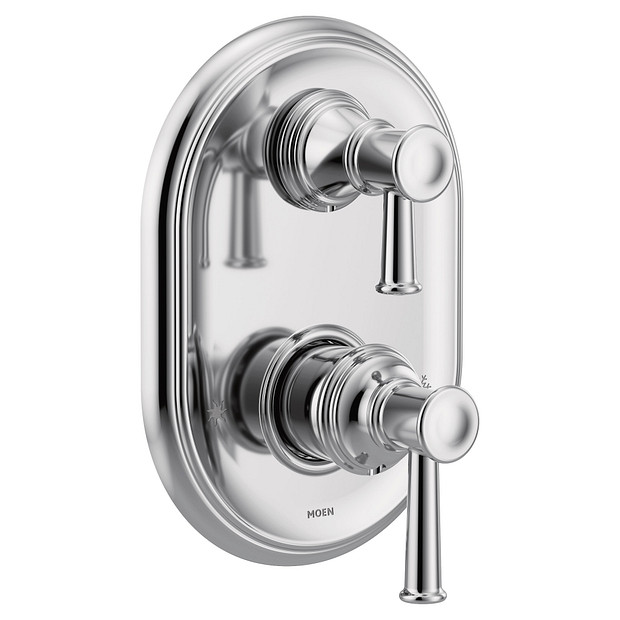

Belfield Chrome M-CORE 3-Series With Integrated Transfer Valve Trim
Williamsburg-era details and intricate design cues give each Belfield faucet a timeless look, while multiple handle and finish options add a distinctly personalized touch to the Traditional styling.
Benefits
chrome finish is highly reflective for a mirror-like look that works with any decorating style
lever handle makes it easy to adjust the water
m-core with transfer
showerhead sold separately
built on the Moen M-PACT common valve system, allowing you to update the faucet style in the future without replacing any plumbing
complies with Americans with Disabilities Act (ADA) specifications
limited lifetime warranty
OPERATION
Lever style handle with temperature indicator on the escutcheon
Variable volume control as handle is lifted in a 0 to 25° arc
Temperature operates through an 110° arc of handle rotation (full cold to full hot)
Adjustable temperature limit stop to control maximum hot water temperature
Pressure balancing mechanism maintains selected discharge temperature to ± 2°F
Transfer valve is rotary 360° handle operation when used with 3 devices, 120° handle operation when used with 2 devices with detents at each flow position
CARTRIDGE
1213 Ceramic Disk Volume Control Cartridge
Non-metallic/non-ferrous and plastic material
Not compatible with back to back installations
