Moen TS3661NHBG Annex Shower Rail Nh Bg
Model: TS3661NHBG

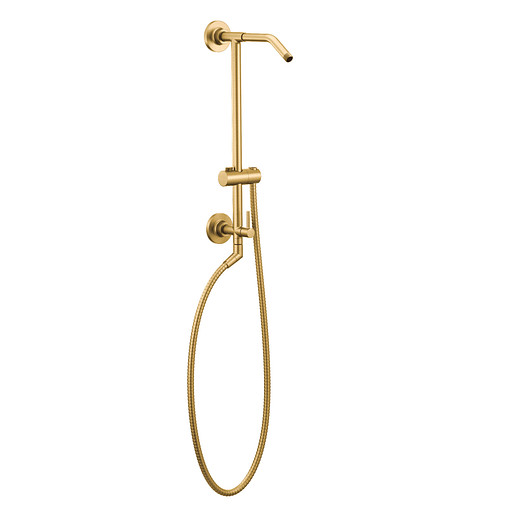

Annex Brushed Gold Shower Only - No Showerhead
With industrial-inspired sophistication, Moen's Annex combines fashion and function, letting you enjoy both the showerhead and handshower of your choice. Versatile Annex installs without disturbing existing tile or having to change the height of the showerhead, so you can easily add a handshower to your shower design. With 2½ adjustability between the shower rail and wall, Annex installs easily against any surface. In addition, it mounts directly to a flush wall or a wall with up to a 1 offset. The secure Annex mounting system meets ADA pull-force requirements, up to 250 lbs. Annex pairs with Moentrol or Posi-Temp valves and corresponding trims.
Connection Size: 1/2"
Connection Type: IPS
Handshower Type: Handshower Sold Separately
Hose Length: 59"
Showerhead Type: Showerhead Sold Separately
Type Of Function: Two Independent Functions
Benefits
chrome finish is highly reflective for a mirror-like look that works with any decorating style
lever handle makes it easy to adjust the water
showerhead sold separately
limited lifetime warranty
provides the functionality of both a showerhead and handshower without a costly remodel
compatible with any existing shower valve, including competitors' valves
design flexibility allows for the addition of any shower arm, showerhead or handshower, including rainshowers, without additional plumbing
the annex shower rail easily attaches to the existing shower arm connection without altering the height
features a clean, modern style that is popular with architects and designers
built-in two-function diverter allows an easy switch of water flow between the two devices (1 handshower or 2 showerhead)
slide bar allows the handshower to easily be moved up and down the bar for personal preference

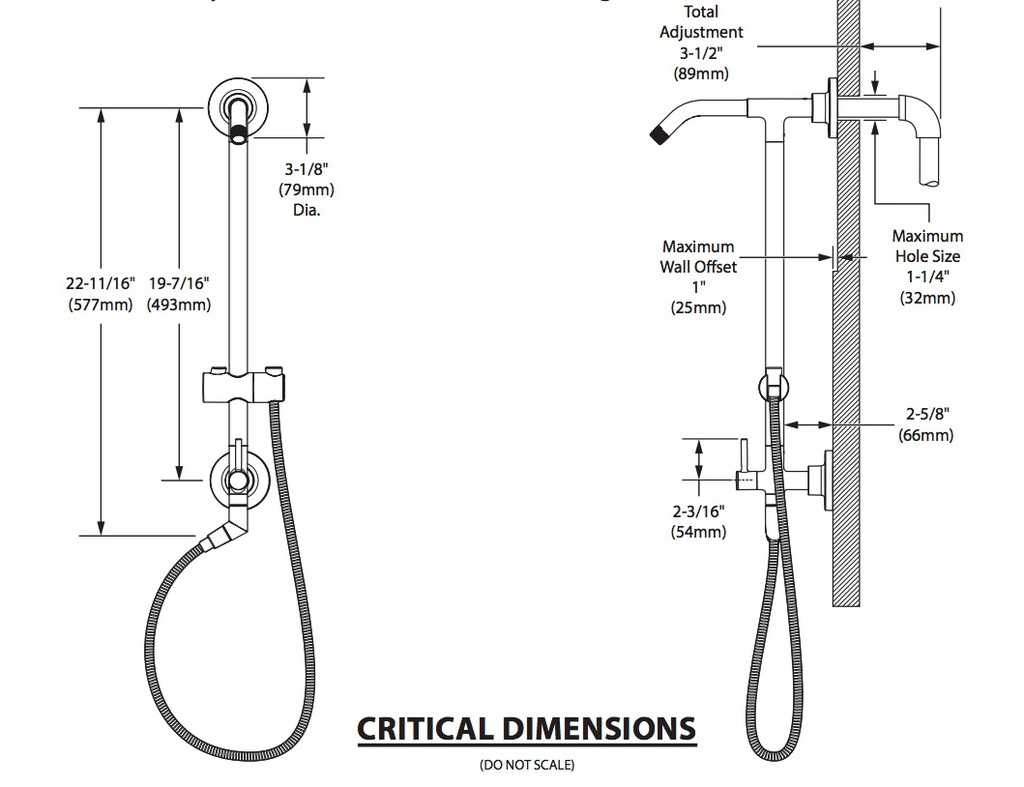

2 1/2" horizontal adjustability can accommodate varying wall thicknesses, for an easier install against any surface - especially important in remodel applications
secure and flexible mounting system meets ADA pull force requirement (250 lbs.)
DESCRIPTION
Various finishes identified by suffix
59" double interlock spiral hose (metal) included
Check valve in hose connection
Interchangeable 8" shower arm included
19" slide bar push button height selection
Showerhead and handshower sold separately
OPERATION
Two function diverter - shower only; hand shower only
Hand shower cradle rotates to adjust angle of hand shower
