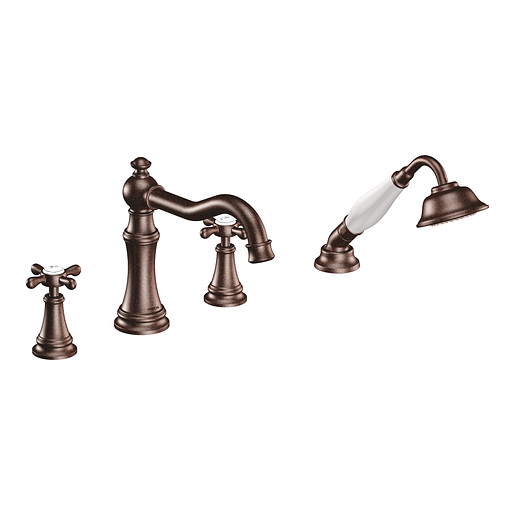

Moen TS21102ORB Trim Weymouth Roman Tub With Hh Cross Orb
Model: TS21102ORB
Weymouth Oil Rubbed Bronze Two-Handle Diverter Roman Tub Faucet Including Handheld Shower
Weymouth's gracious Victorian details include porcelain inlays with antiqued decorative script and a refined shepherd's spout. Elegant, Traditional design details and distinctive finishing touches present a sense of uncommon luxury in the Weymouth collection. Distinctive accents include porcelain inlays that feature Euro-influenced decorative script and signature styling elements to make an extravagant statement in your Traditional bath. Coordinated lighting and accessories make an extravagant design statement.
Required for Installation
Valve
Application: Four Hole
Handshower Flow Rate: 1.75 Gpm (6.65 L/Min) Max.
Showerhead Type: Handshower

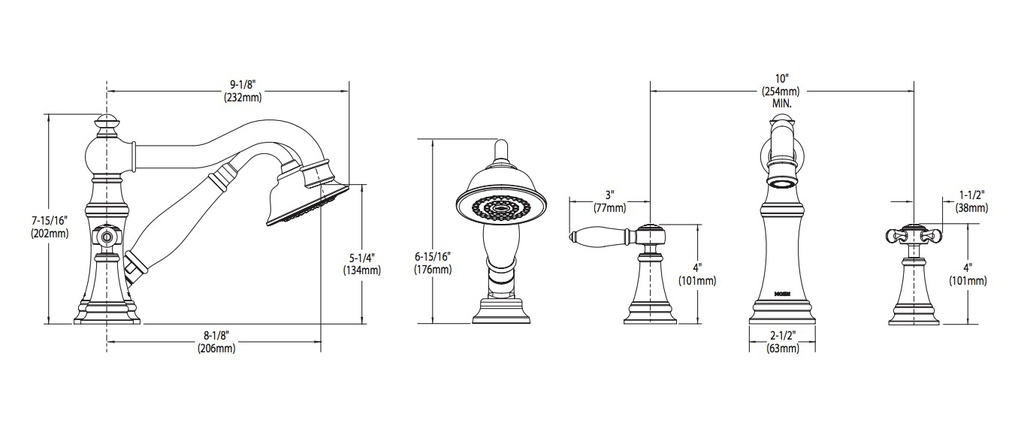

Spout Reach: 8.10"
Spray Functions: One-Function
Benefits
chrome finish is highly reflective for a mirror-like look that works with any decorating style
two-handle classic look of cross handles
one-function hand shower
built on the Moen M-PACT common valve system, allowing you to update the faucet style in the future without replacing any plumbing
complies with Americans with Disabilities Act (ADA) specifications
limited lifetime warranty
DESCRIPTION
Metal construction with various finishes identified by suffix
Single function handshower with double check valves
OPERATION
Cross or lever style handles
Rotate hot side handle counterclockwise to open (clockwise to close) and the cold side handle clockwise to open and (counterclockwise to close)
FLOW
EP suffix models are limited to 2.0 gpm (7.6 L/min) max for products manufactured prior to June 30, 2018. EP suffix models manufactured after June 30, 2018 are limited to 1.75 gpm (6.7 L/min) max.
