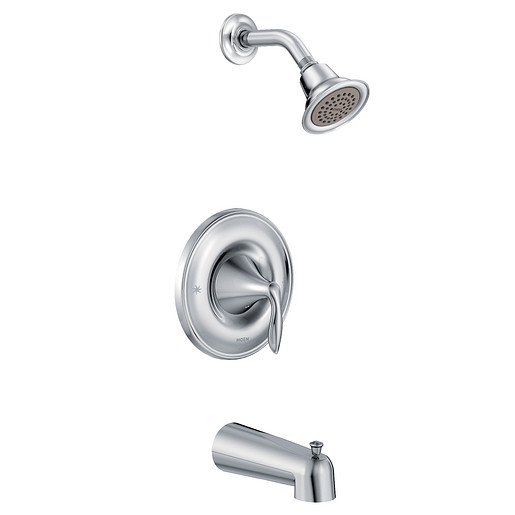

Moen T2133 Eva Chrome Posi-Temp® Tub/Shower
Model: T2133
Eva Chrome Posi-Temp® Tub/Shower
With flowing curves, the Eva collection's Transitional design is pure and organic. Petal-like handles and swan-like spout bring a relaxed feeling to the bath.
Showerhead Flow Rate: 2.5 Gpm (9.5 L/Min) Max.
Showerhead Functions: One-Function
Showerhead Size: 3-1/2" Diameter Spray Head
Showerhead Type: Standard
Spout Connection Type: Slip Fit
Spout Length: 7"
Tub Spout Type: Diverter
Benefits
chrome finish is highly reflective for a mirror-like look that works with any decorating style
lever handle makes it easy to adjust the water
install with Posi-Temp® pressure balancing control valve to maintain water temperature control in the shower
3-1/2" diameter spray head
7" tub spout length
built on the Moen M-PACT common valve system, allowing you to update the faucet style in the future without replacing any plumbing
complies with Americans with Disabilities Act (ADA) specifications
limited lifetime warranty
DESCRIPTION
Metal construction with various finishes identified by suffix
Includes showerhead, arm, flange and diverter spout
OPERATION
Handle operates counterclockwise through a 270˚ arc with off at 6 o’clock and maximum hot at the 9 o’clock position. Shut off in clockwise direction
Adjustable temperature limit stop to control maximum hot water temperature
Pressure balancing mechanism maintains selected discharge temperature to ± 3°
FLOW
Showerhead is limited to 2.5 gpm (9.5 L/min) at 80 psi
EP suffix models are limited to 1.75 gpm (6.6 L/min) at 80 psi
NH suffix models contain no showerhead
CARTRIDGE
1222 cartridge design
Nonmetallic/nonferrous and stainless steel materials
Accommodates back to back installations
