Kohler 892-0 Reve 67" x 36" Drop-in Bath White
Rêve®
67" x 36" drop-in bath
K-892-0
Color/Finish: White
Modern design meets traditional craftsmanship in this KOHLER® Reve bath. Its low step-over height makes it easy to enter and exit, while the slotted overflow ensures you can relax fully submerged with maximum water depth.
Crafted with strong geometric lines, this 67" x 36" rectangular drop-in bath's sturdy cast iron construction and Safeguard® slip-resistant surface offer long-lasting performance and safety. The exterior ground coat surface is minimally enhanced and painted to capture as much of the raw elements of the cast iron material.
Features
Comfort Depth® design offers a convenient and low step-over height while retaining the depth of a standard 21" bath
Integral lumbar support on both ends

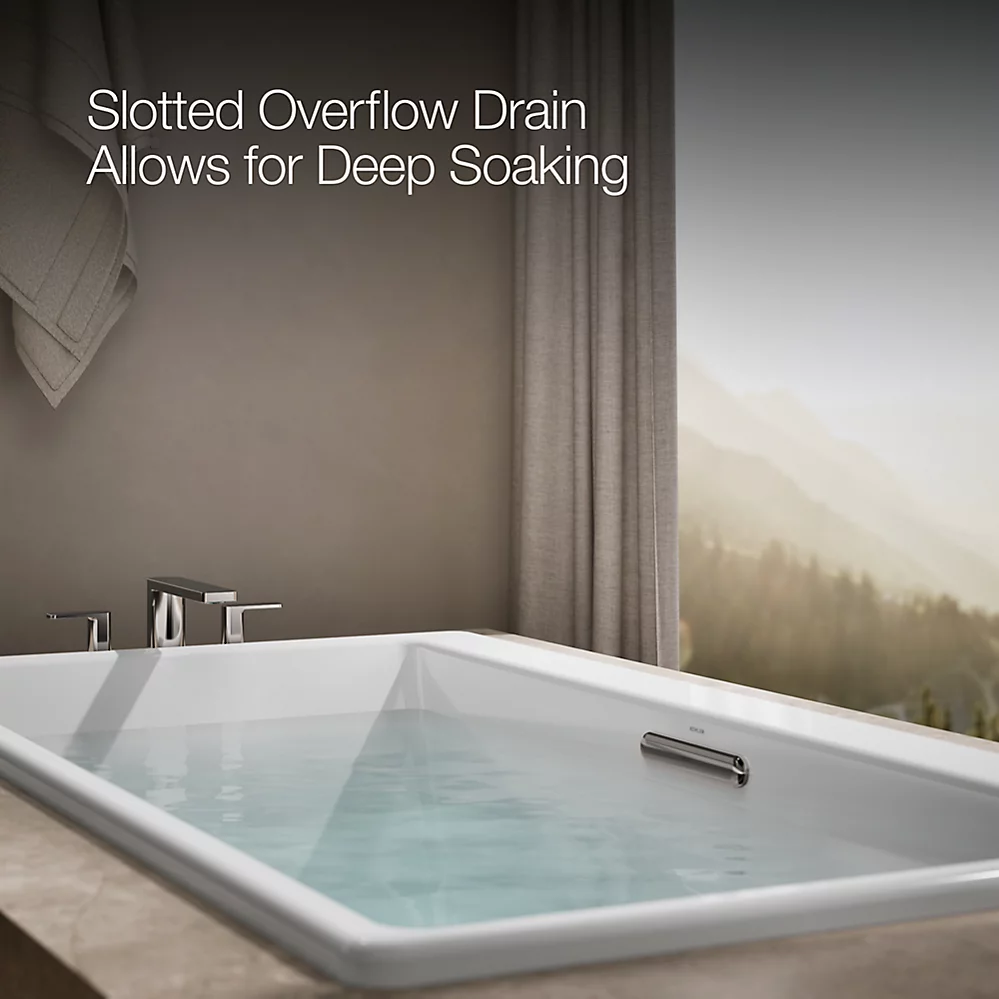

Slotted overflow allows for deep soaking
Safeguard® slip-resistant surface provides excellent traction underfoot

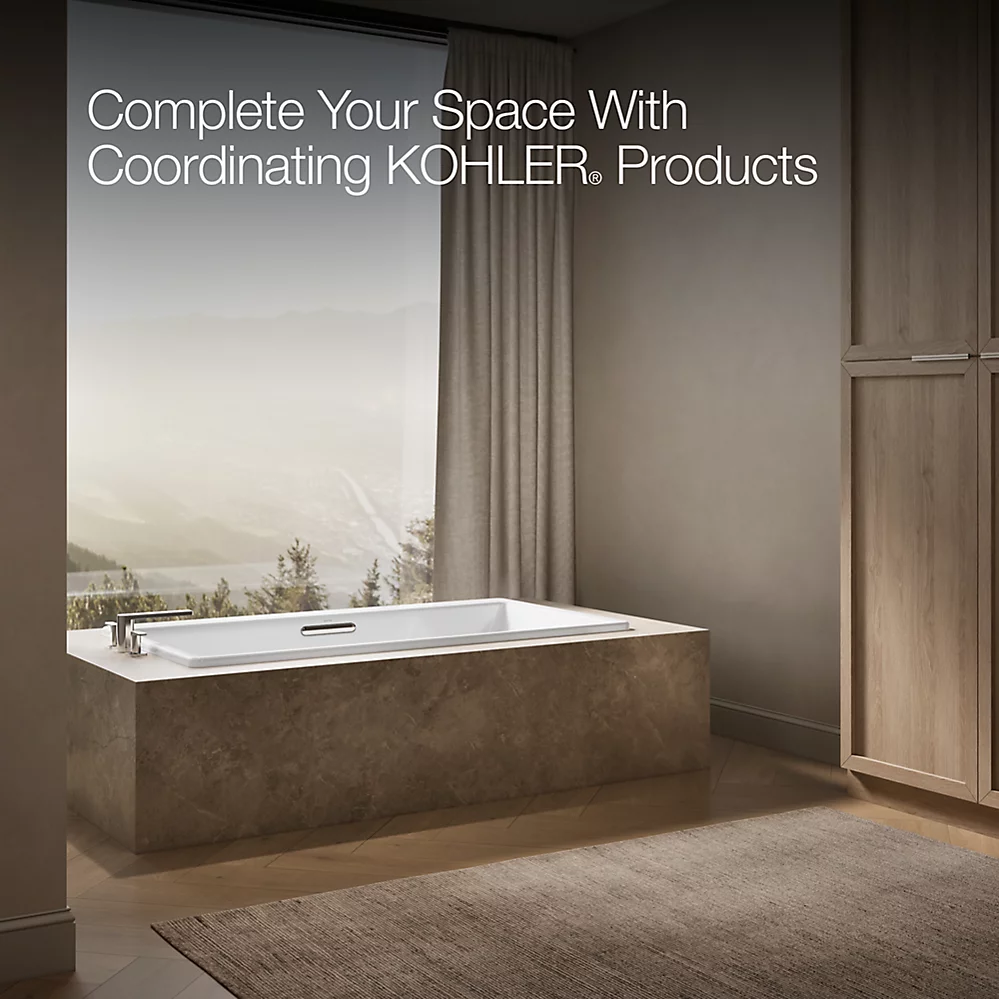

Coordinates with other products in the Rêve collection
Material
KOHLER® enameled cast iron
Painted exterior surface smoothness can vary from product to product
Installation
Center drain
Drop-in or undermount
Requires Clearflo slotted overflow bath drain and PVC pipe (sold separately)
Required Products/Accessories
K-7271 Brass Slotted Overflow Bath Drain
K-7272 PVC Slotted Overflow Bath Drain
Recommended Products/Accessories
K-137 Undermount kit for select 67" Rêve bath models
K-1179 Vinyl Tiling-in Bead
K-23725 Cast iron cleaner

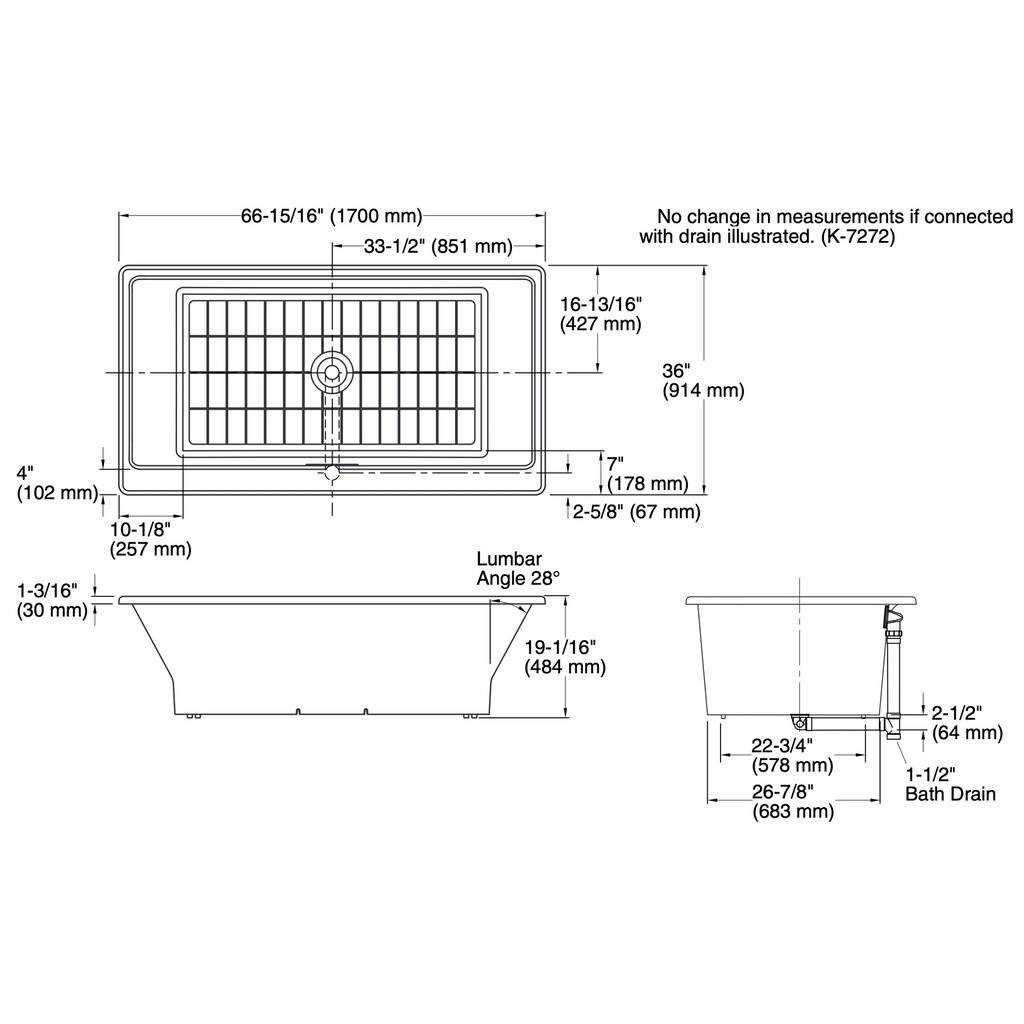

Technical Information
All product dimensions are nominal.
Drain location: Center
Basin area, bottom: 49" x 26-1/2" (1245 mm x 673 mm)
Basin area, top: 62-1/2" x 29-1/4" (1588 mm x 743 mm)
Weight: 435 lbs (197.3 kg)
Minimum floor load: 78 lbs/ft² (380.8 kg/m²)

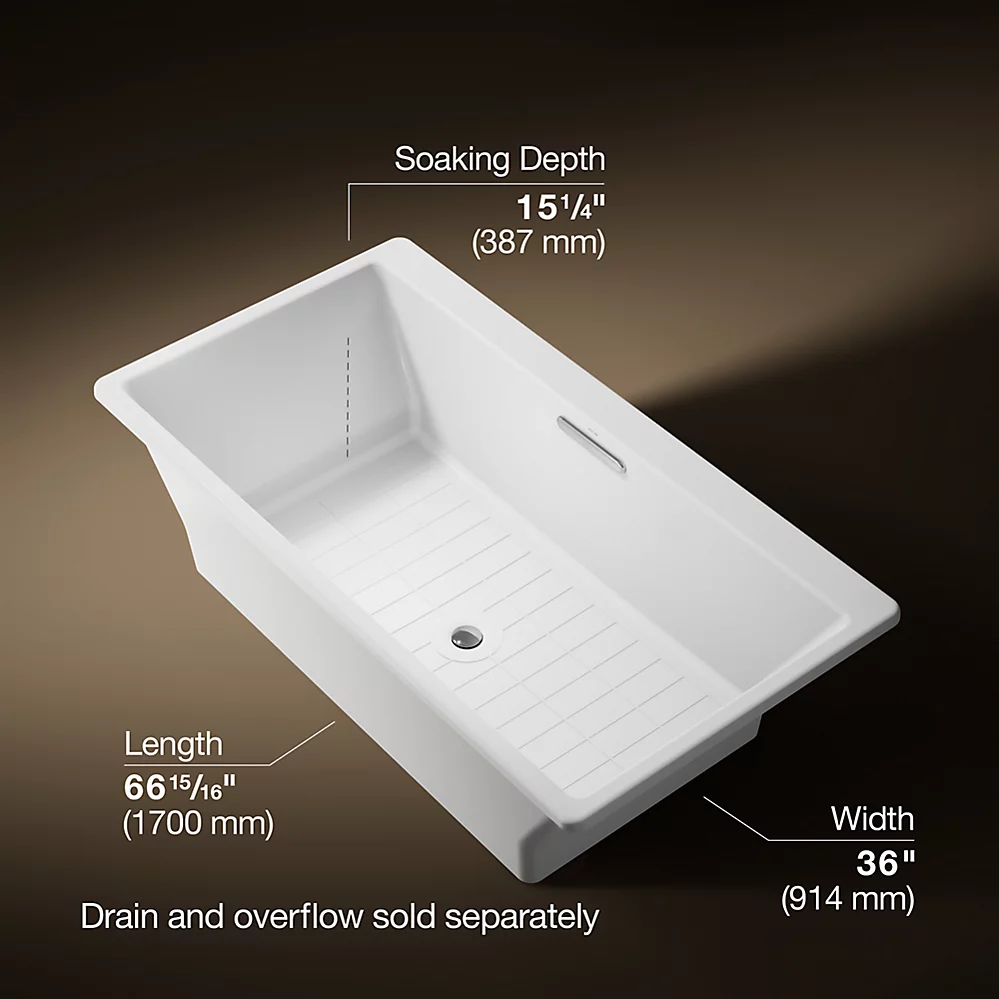

Water depth: 15-1/4" (387 mm)
Water capacity: 90 gal (340.7 L)
Cutout: Drop-in, 66-1/2" x 35-1/2" (1689 mm x 902 mm)
Template: K-137, required, not included
Minimum flat for door: 1" (25 mm)
