Kohler 8669-5UA3-95 Riverby 33" Undermount Workstation Kitchen Sink Ice Grey
Riverby®
33" undermount double-bowl workstation kitchen sink
K-8669-5UA3-95
Color/Finish: Ice Grey
The understated beauty of this KOHLER® Riverby sink makes it an elegant and versatile addition to the kitchen. The large/medium bowls allow you to keep clean and dirty dishes separate, while a sloped base minimizes water pooling.
Crafted from enameled cast iron, this undermount kitchen sink resists chipping, cracking, or burning for years of beauty and reliable performance. It comes with a custom-fit colander with integral cutting board, a utility rack with soaking cup, and a stainless-steel bottom sink rack.
Features
36" minimum base cabinet width
Large/medium bowls
9" (229 mm) depth provides generous workspace
Five oversized faucet holes
Oversized holes allow for easy installation of faucets and accessories
Bowl slopes toward drain to minimize water pooling
Offset drains increase workspace in the sink and storage space underneath

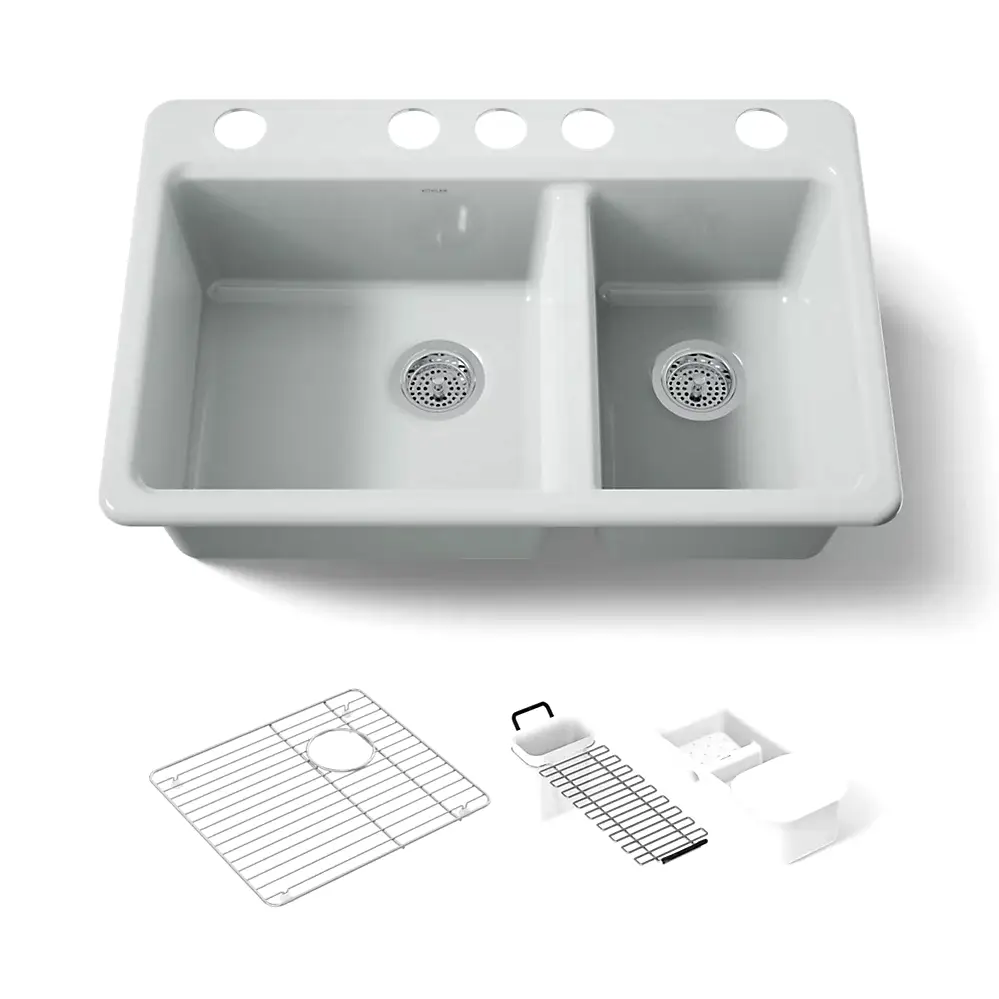

Includes K-6239 colander with integral cutting board, K-6194 utility rack with soaking cup, and K-9234 left-hand bottom sink rack
Material
KOHLER® enameled cast iron
Installation
Undermount
Recommended Products/Accessories
K-9234 Left-Bowl Sink Rack
K-8801 Sink drain and strainer with tailpiece
K-8799 Sink drain and strainer basket
K-23725 Cast iron cleaner
1411886 Undermount sink kit 23"
Optional Products/Accessories
K-11352 Disposal Flange with Stopper
K-9000 P-Trap
Included Components
K-6194 Utility Rack With Soaking Cup
K-6239 Colander with Cutting Board
K-9234 Left-Bowl Sink Rack
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
0 White
FF Sea Salt™
96 Biscuit
NY Dune
95 Ice™ Grey
7 Black Black™
TRF Truffle

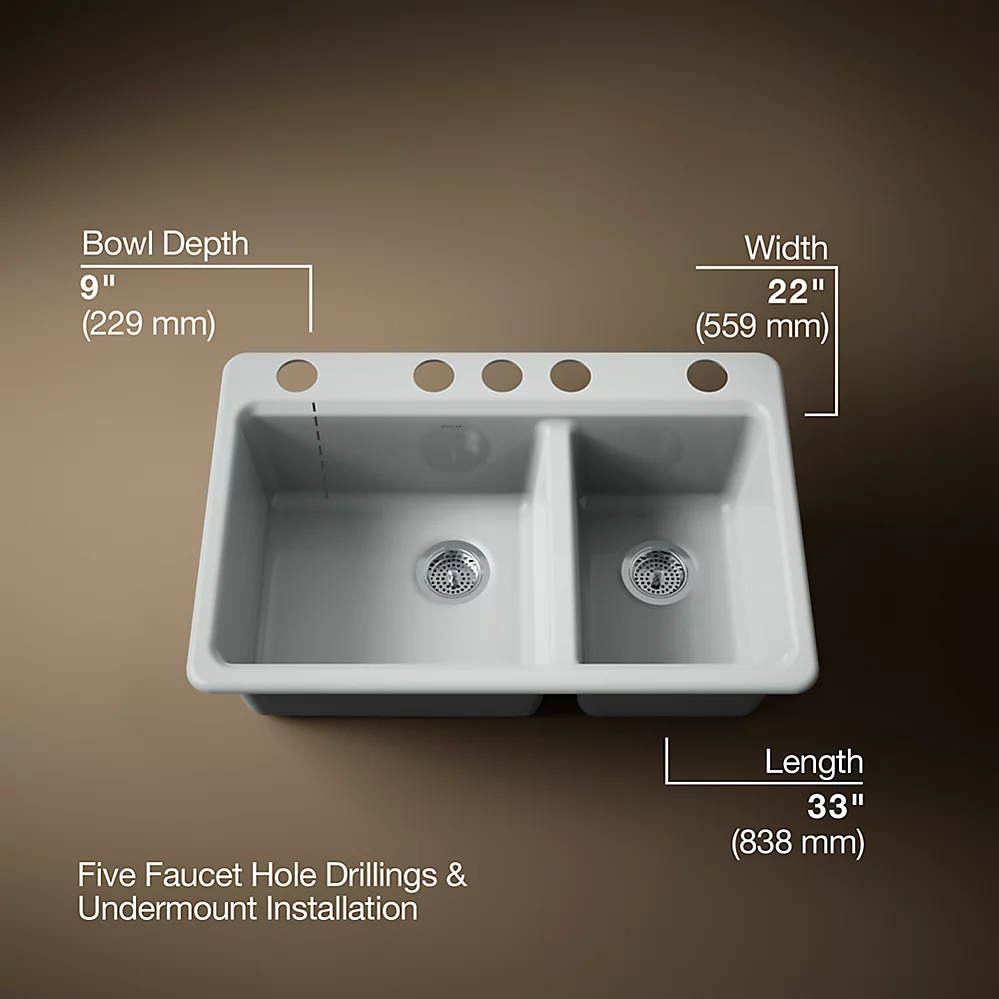

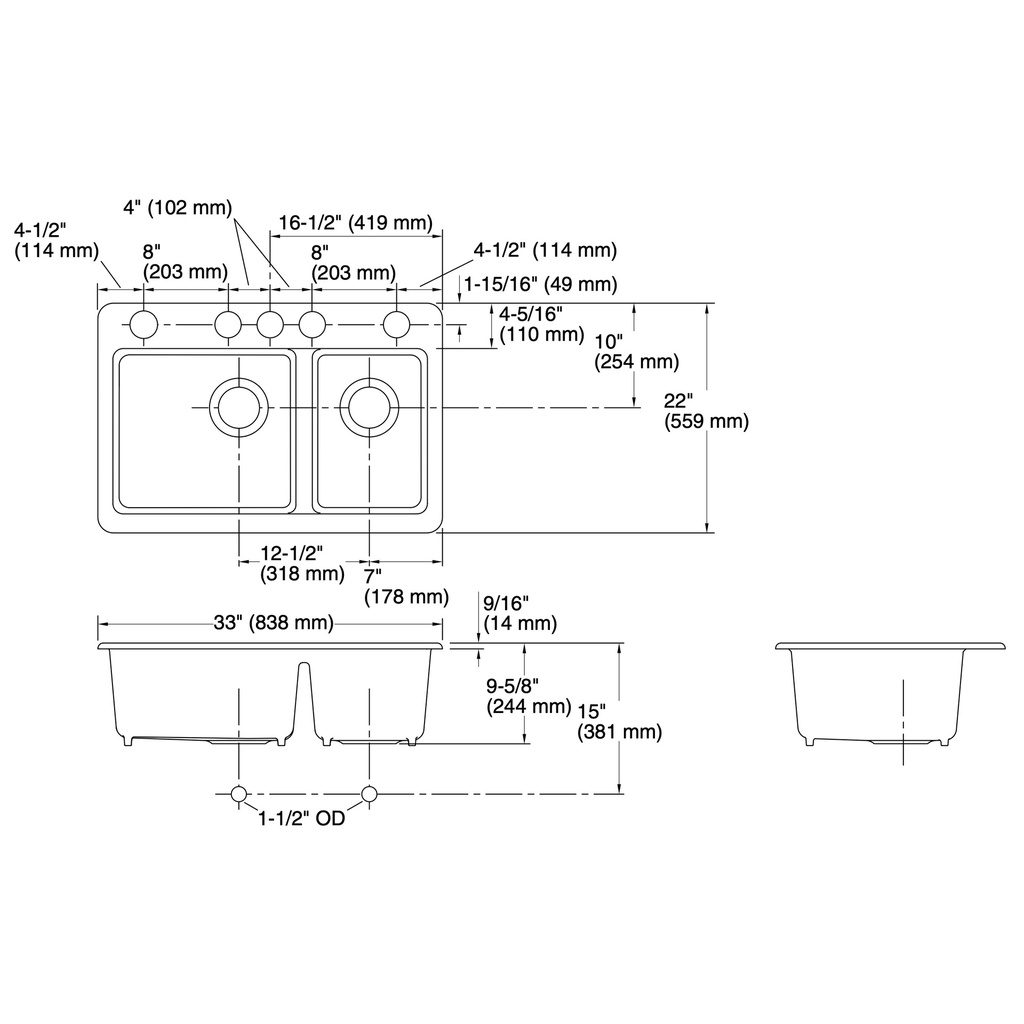

Technical Information
All product dimensions are nominal.
Basin configuration: Large Bowl on Left
Center(s): 8" (203 mm)
Min. base cabinet width: 36" (914 mm)
Bowl area (Basin #1):
Length: 17-9/16" (446 mm)
Width: 15-13/16" (402 mm)
Bowl depth: 9" (229 mm)
Water depth: 9" (229 mm)
Bowl area (Basin #2):
Length: 11-1/16" (281 mm)
Width: 15-13/16" (402 mm)
Bowl depth: 9" (229 mm)
Water depth: 9" (229 mm)
Number of deck holes: 5
Drain hole: 3-7/8" (98 mm)
Template: 1166727-7, required, included
