Kohler 865-JHM-NY Tea-For-Two 71-3/4" x 36" Drop-in Whirlpool Bath Dune
Tea-for-Two®
71-3/4" x 36" drop-in/undermount whirlpool bath
K-865-JHM-NY
Color/Finish: Dune
Experience massaging bliss in this luxury KOHLER® Tea-for-Two 71-3/4" x 36" rectangular undermount/drop-in whirlpool bath spacious enough for two. The water jets can be individually adjusted to suit each bather's preferences for direction and intensity, while the supportive design with molded armrests embraces you in comfort. With multiple pump location options, this versatile home spa suits a range of bathing spaces.
Features
Six Proflex® hydromassage jets can be individually adjusted for water flow and direction
Built-in heater
Spacious design accommodates up to two bathers
Integral lumbar support
Multiple pump location options give you more choices for installation and access
Textured bottom surface
Single-speed whirlpool offers performance and value, with six fully adjustable jets
Material
KOHLER® enameled cast iron
Installation
Drop-in or undermount
Reversible drain
120 V electrical requirement allows for easy installation with standard outlet
Requires two dedicated circuits
Requires pop-up bath drain, bath drain trim, and jet trim kit (sold separately)
Required Products/Accessories
K-23857 Bath drain trim
K-78440 33" cable pop-up bath drain
Recommended Products/Accessories
K-1179 Vinyl Tiling-in Bead
K-582 Under-Mount Installation Kit
K-23726 Drain treatment
K-23725 Cast iron cleaner
1015255 Jet trim kit
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
0 White
96 Biscuit
NY Dune
7 Black Black
Required Electrical Service
Two dedicated circuits required, protected with Class A GroundFault Circuit-Interrupter (GFCI). Outside North America, this device may be known as a Residual Current Device (RCD).
Pump: 120 V, 15 A, 60 Hz
Heater: 120 V, 15 A, 60 Hz

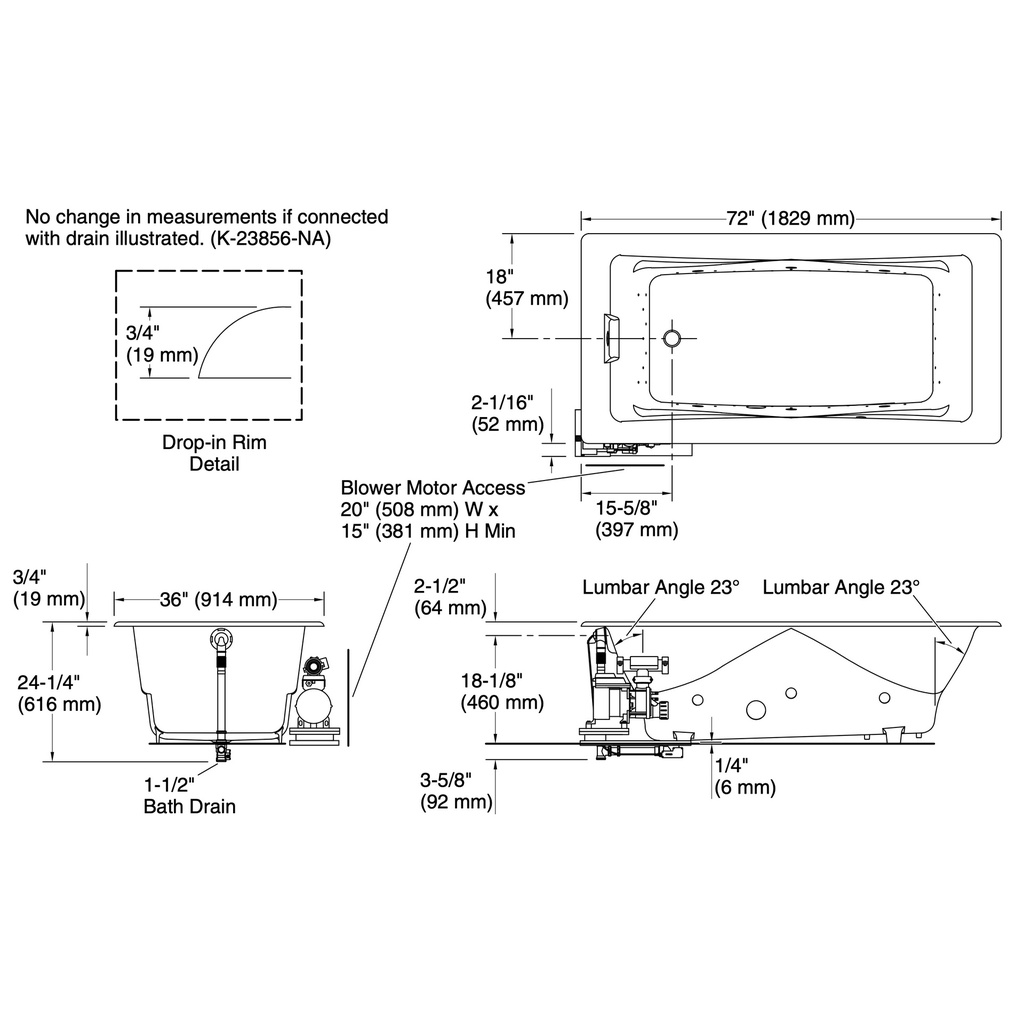

Technical Information
All product dimensions are nominal.
Drain location: Reversible
Basin area, bottom: 49" x 22" (1245 mm x 559 mm)
Basin area, top: 62" x 28" (1575 mm x 711 mm)
Weight: 455 lbs (206.4 kg)
Minimum floor load: 69 lbs/ft² (336.9 kg/m²)
Water depth: 17" (432 mm)
Water capacity: 89 gal (336.9 L)
Cutout: Drop-in, 70-1/4" x 34-1/2" (1784 mm x 876 mm)
Electrical component rating:
Pump: 120 V, 7 A, 60 Hz
Heater: 120 V, 12 A, 60 Hz
Pump speed: Single
