Kohler 852-GHBN-96 Tea-For-Two 60" x 32" Drop-in Heated Air Bath Biscuit
Tea-for-Two®
60" x 32" drop-in Heated BubbleMassage™ air bath
K-852-GHBN-96
Color/Finish: Biscuit
Combining distinctive KOHLER® styling with versatile installation options, the KOHLER® Tea-for-Two heated BubbleMassage™ 60" x 32" rectangular drop-in air bath is an ideal choice for any bathroom.
Airjets release thousands of heated bubbles to massage your body at the level of intensity you prefer, helping to center your mind and release tension in your muscles. Constructed of durable KOHLER® cast iron, this model features a contoured drain overflow that allows comfortable bathing at either end. Safeguard® slip-resistant surface enhances safety.
Features
44 airjets release thousands of heated bubbles that surround, support, and massage the body
Variable-speed blower lets you adjust massage intensity to 18 levels
Automatic and manual purge cycles remove residual water from air channels after use
Lighted keypad control
60-minute automatic shutoff timer
Safeguard® slip-resistant surface provides excellent traction underfoot
Integral lumbar support
Technology
Heated BubbleMassage™ technology warms and humidifies air before it enters the bath
Material
KOHLER® enameled cast iron
Installation
Drop-in or undermount
Reversible drain
Requires two 120V dedicated circuits
Requires cable pop-up bath drain and bath drain trim (sold separately)
Required Products/Accessories
K-23857 Bath drain trim
K-78440 33" cable pop-up bath drain
Recommended Products/Accessories
K-1172 Adjustable feet
K-1491 Bath/Whirlpool Pillow
K-1601 Bath/whirlpool footstop, removable
K-586 Under-Mount Installation Kit
K-1179 Vinyl Tiling-in Bead
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
0 White
96 Biscuit
NY Dune
7 Black Black
Required Electrical Service
Two dedicated circuits required, protected with Class A GroundFault Circuit-Interrupter (GFCI). Outside North America, this device may be known as a Residual Current Device (RCD).
Blower: 120 V, 15 A, 60 Hz
Air bath: 120 V, 15 A, 60 Hz

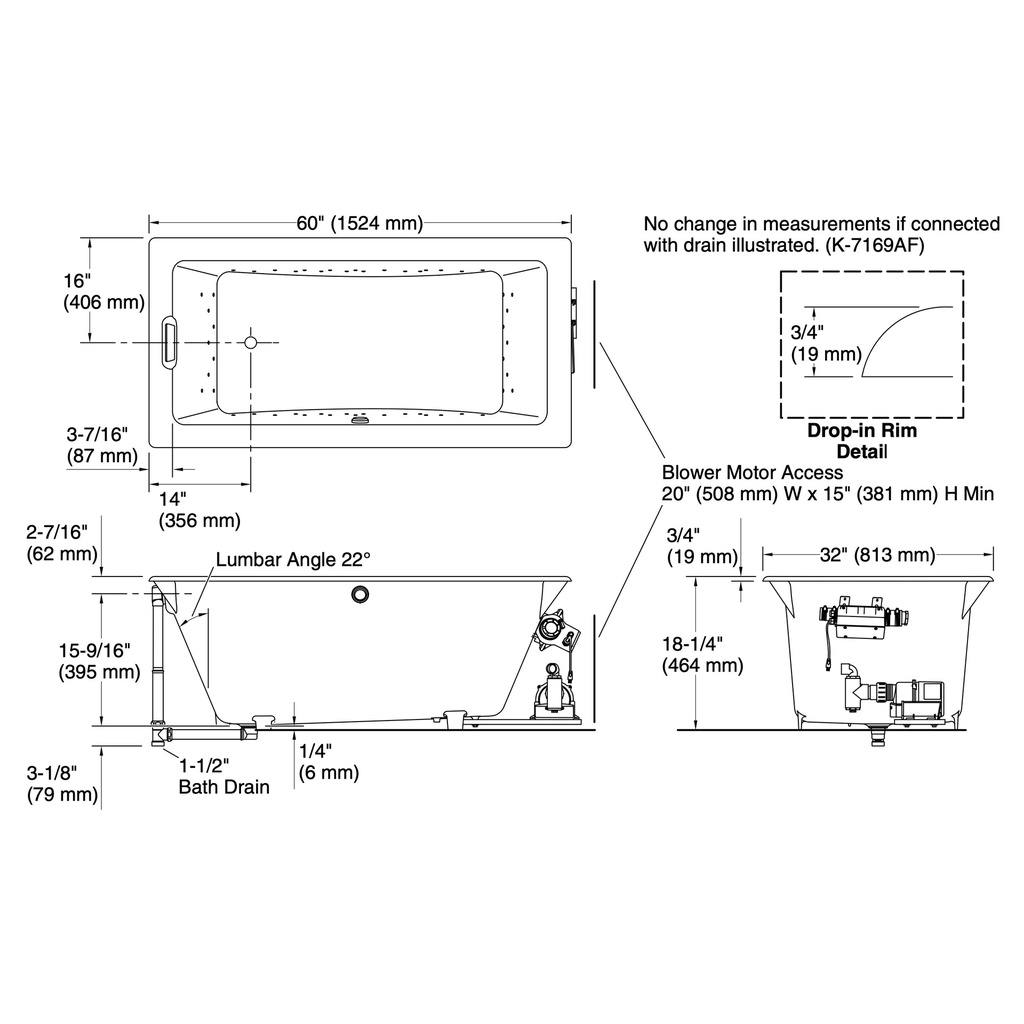

Technical Information
All product dimensions are nominal.
Drain location: Reversible
Basin area, bottom: 40-1/2" x 20" (1029 mm x 508 mm)
Basin area, top: 52-3/4" x 24" (1340 mm x 610 mm)
Weight: 350 lbs (158.8 kg)
Minimum floor load: 60 lbs/ft² (292.9 kg/m²)
Water depth: 13-5/8" (346 mm)
Water capacity: 60 gal (227.1 L)
Cutout: Drop-in, 58-1/2" x 30-1/2" (1486 mm x 775 mm)
Template: K-586, required, not included
Electrical component rating:
Blower: 120 V, 10 A, 60 Hz
Air bath: 120 V, 5 A, 60 Hz
