Kohler 817-0 Reve 67" x 31-1/2" Drop-in Undermount Bath White
Rêve®
67" x 31-1/2" drop-in/undermount bath
K-817-0
Color/Finish: White
Relax in a KOHLER® Rêve 67" x 31-1/2" rectangular undermount/drop-in bath crafted with strong geometric lines and a low step-over design that makes it easy to enter and exit. The slotted overflow ensures whole-body immersion with maximum water depth.
Sturdy cast iron construction and Safeguard® slip-resistant surface offer long-lasting performance. The exterior ground coat surface is minimally enhanced and painted to capture as much of the raw elements of the cast iron material.
Features
Comfort Depth® design offers a convenient and low step-over height while retaining the depth of a standard 21" bath
Integral lumbar support on both ends
Safeguard® slip-resistant surface provides excellent traction underfoot

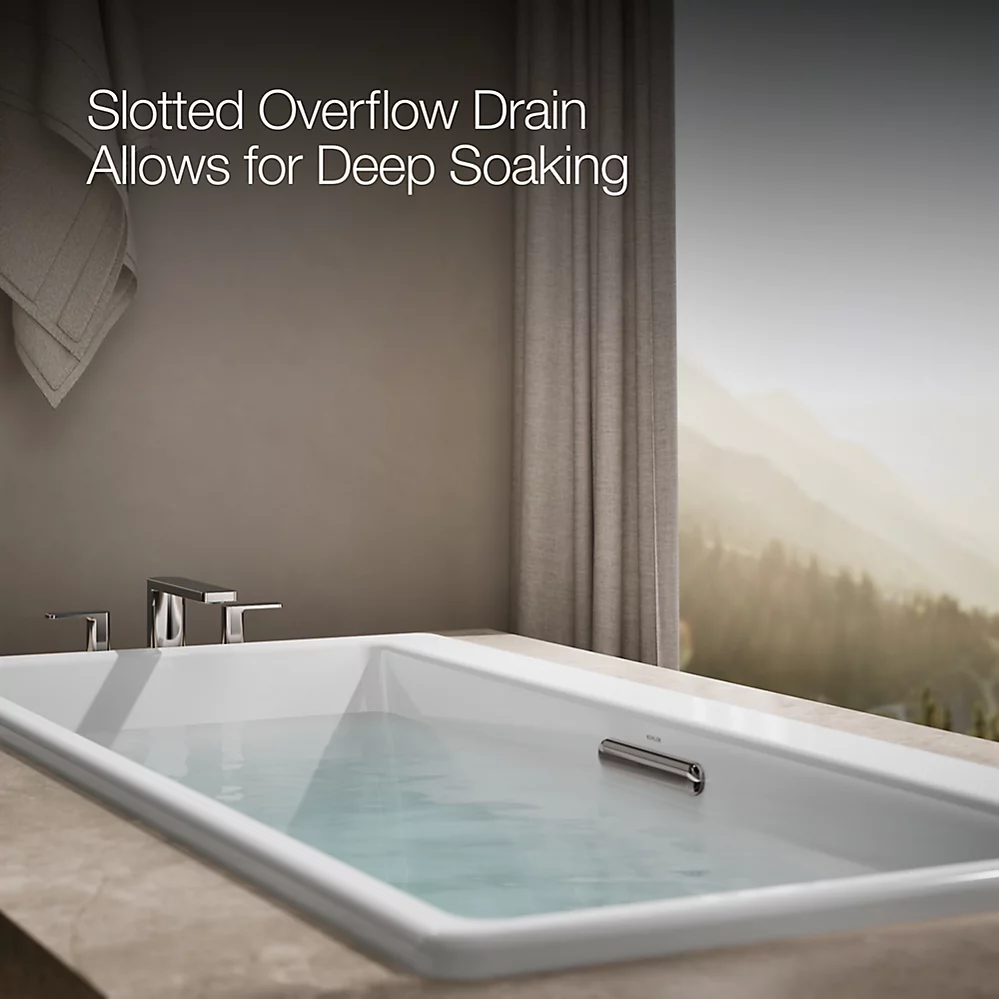

Slotted overflow allows for deep soaking
Coordinates with other products in the Rêve collection
Material
KOHLER® enameled cast iron
Painted exterior surface smoothness can vary from product to product
Installation
Center drain
Drop-in or undermount
Required Products/Accessories
K-7271 Brass Slotted Overflow Bath Drain
K-7272 PVC Slotted Overflow Bath Drain
Recommended Products/Accessories
K-136 Undermount kit for select 32" Rêve bath and
BubbleMassage™ air bath models
K-1179 Vinyl Tiling-in Bead
K-23725 Cast iron cleaner

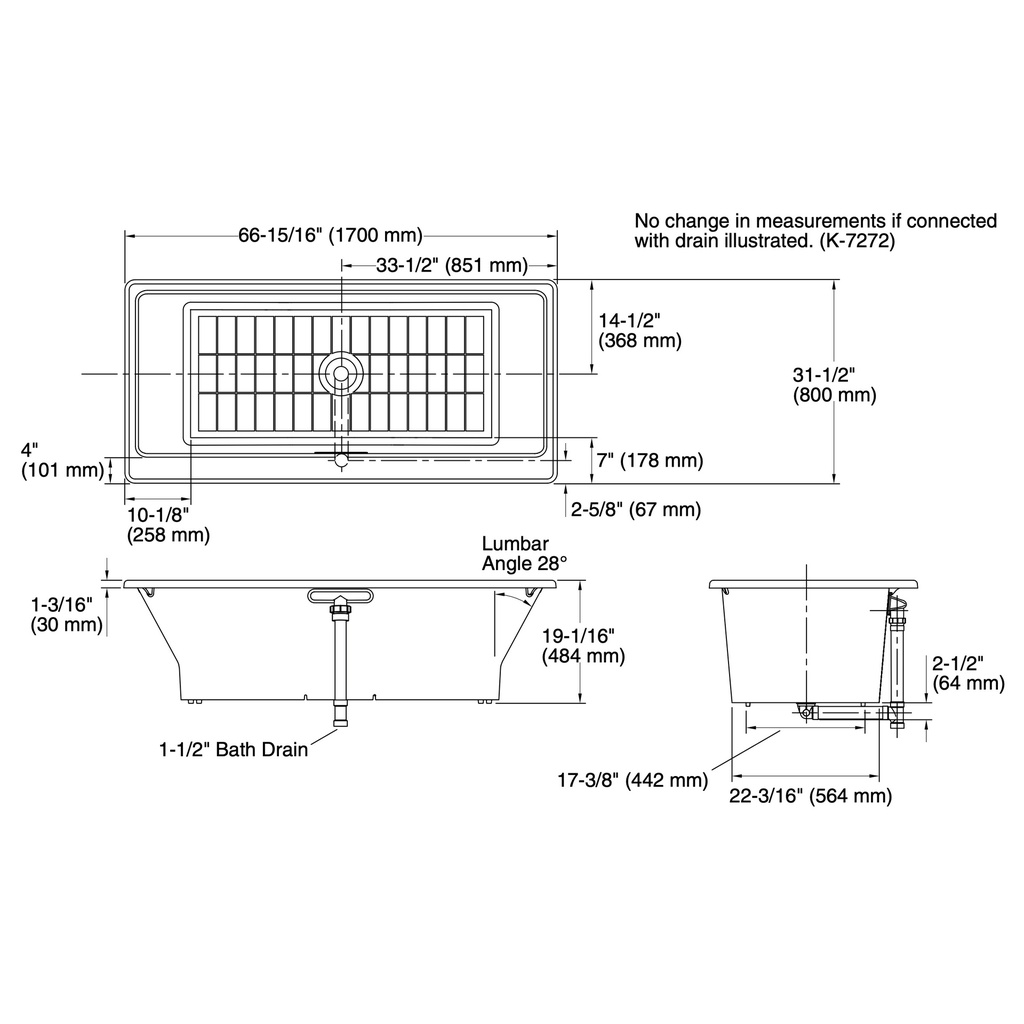

Technical Information
All product dimensions are nominal.
Drain location: Center
Basin area, bottom: 49" x 22" (1245 mm x 559 mm)
Basin area, top: 62-1/2" x 24-3/4" (1588 mm x 629 mm)
Weight: 365 lbs (165.6 kg)
Minimum floor load: 78 lbs/ft² (380.8 kg/m²)

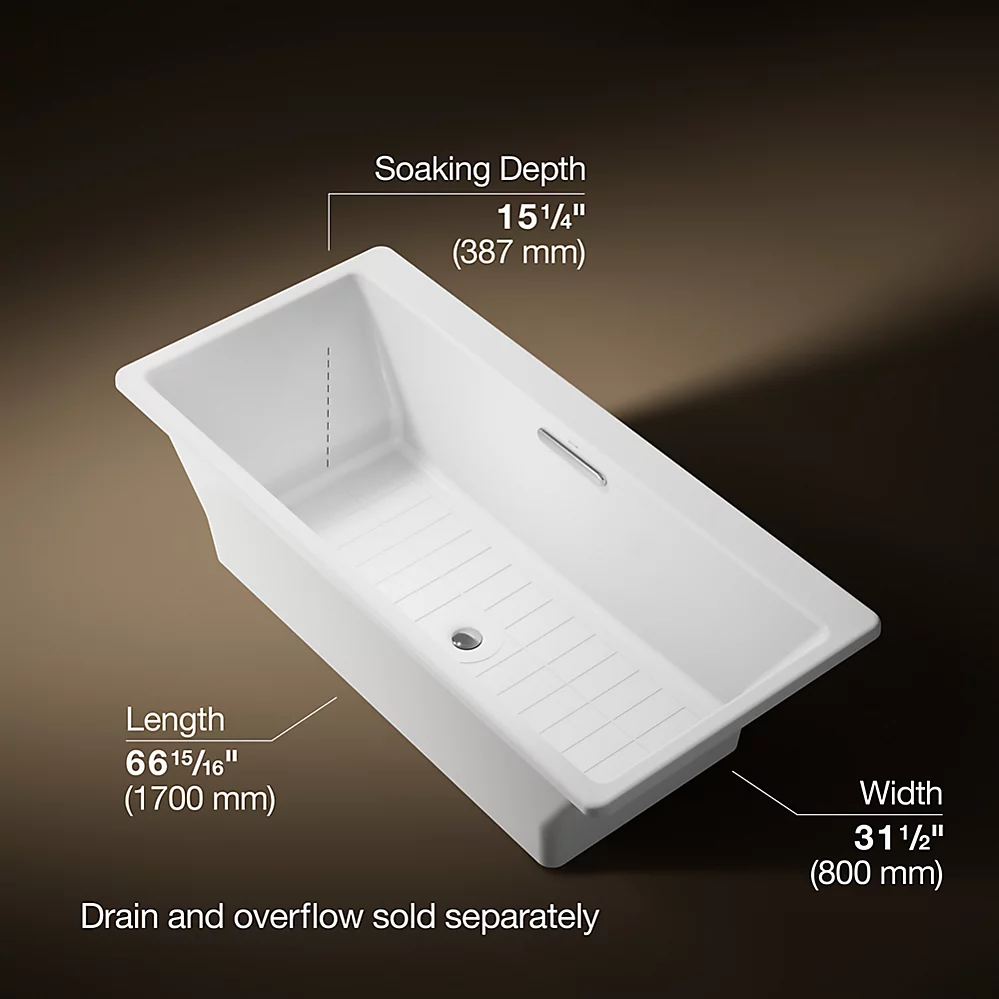

Water depth: 15-1/4" (387 mm)
Water capacity: 75 gal (283.9 L)
Cutout: Drop-in, 65-1/2" x 30" (1664 mm x 762 mm)
Minimum flat for door: 1" (25 mm)
