Kohler 77780-0 Karing One Piece Elongated Smart Toilet White
Karing®
One-piece elongated smart toilet, 1.08 gpf
K-77780-0
Color/Finish: White
Minimalist style meets maximum hygiene. The next-generation KOHLER® Karing smart toilet features an ergonomic seat design for a streamlined look with the comfort of integrated personal cleansing. Use the advanced touchscreen remote to create your preferred settings for warmth, cleansing, and drying.
Bowl is automatically misted prior to use for more effective rinsing while flushing. The powerful 1.08-gallon flush provides significant water savings compared to a 1.28- or 1.6-gallon one-piece elongated toilet.
Features
Compact, streamlined one-piece smart toilet with integrated personal cleansing
Elongated bowl offers added room and comfort
1.08 gallons per flush (gpf)
Advanced bidet functionality with self-cleaning wand and precision air dryer
Adjustable settings for heated seat, dryer and water temperature
Motion-activated, hands-free opening/closing of cover

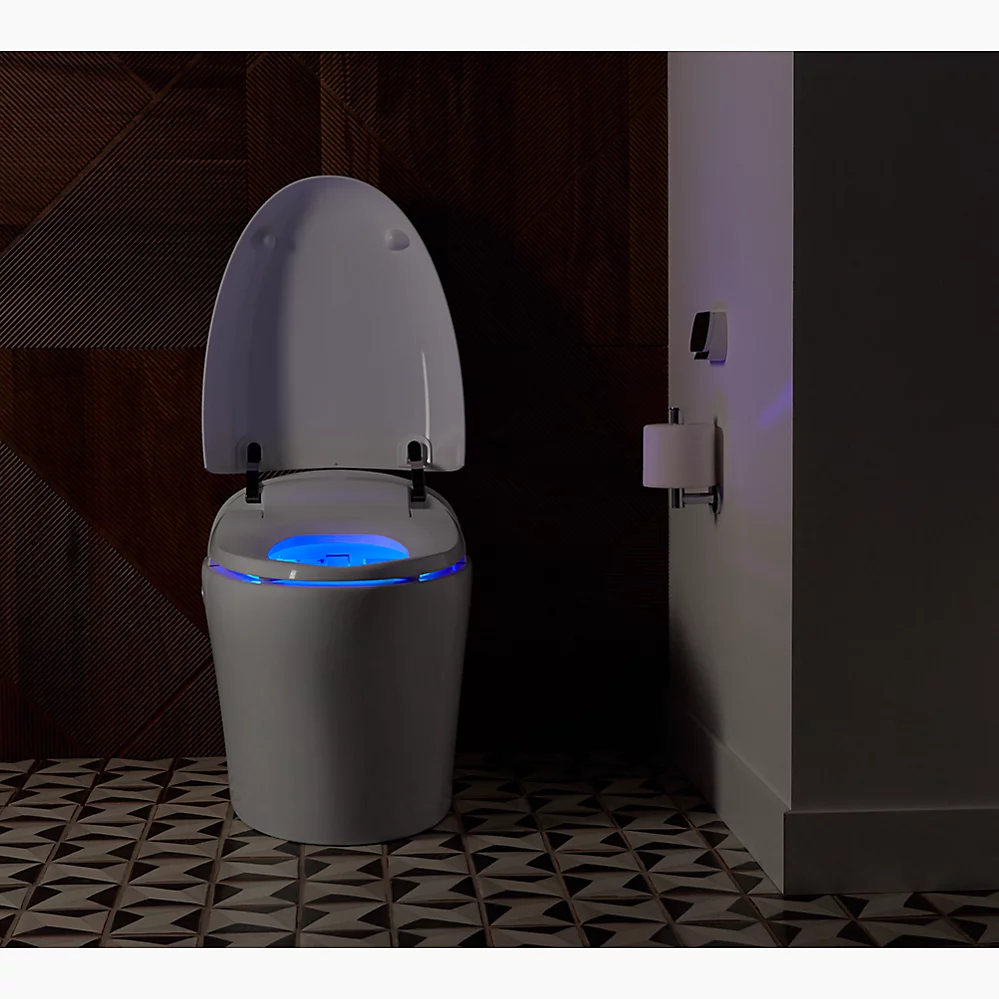

LED lighting illuminates the bowl to serve as a nightlight
Stainless steel wand offers adjustable spray shape, position, water pressure, temperature, pulsate, and oscillate functions

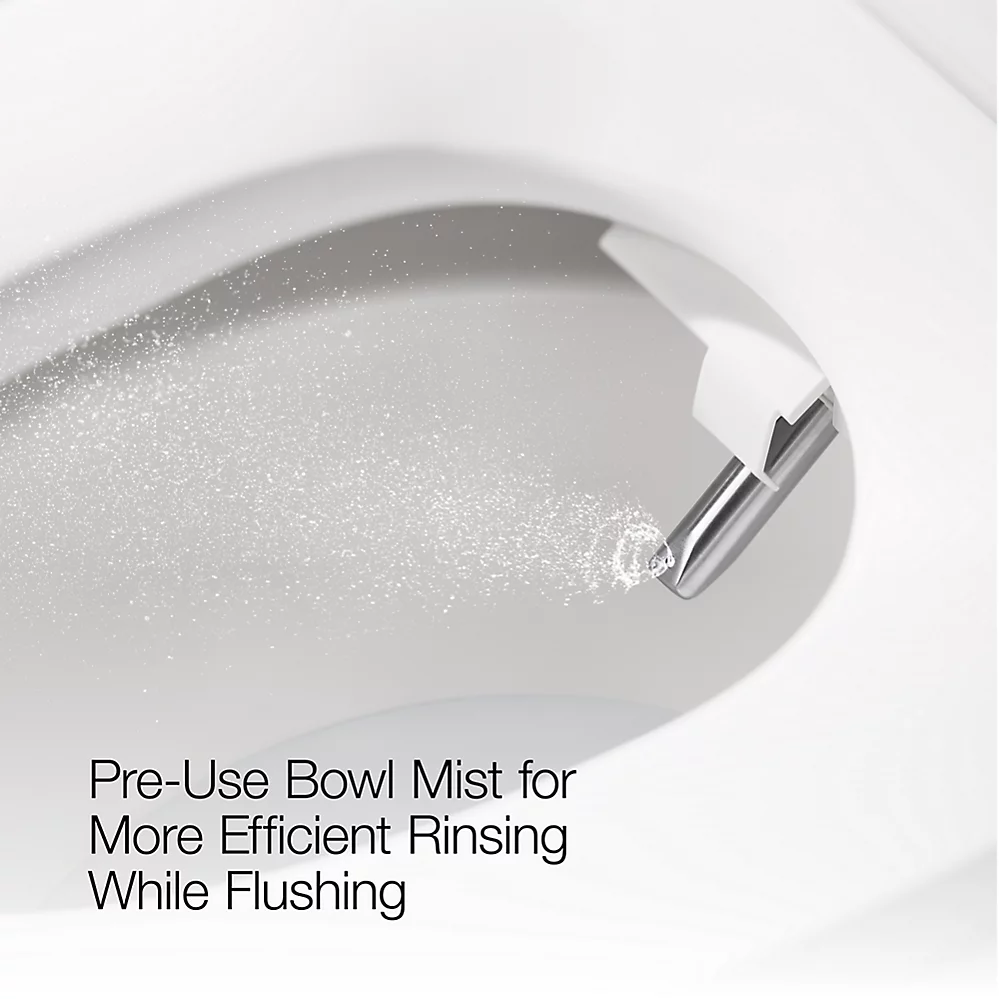

Bowl is automatically misted prior to use for more effective rinsing while flushing
English-language touch-screen LCD remote control
Self-cleaning function uses UV light and electrolyzed water systems to automatically clean the wand surfaces
Automatic deodorizer fan reduces odors
Power Lite® flushing technology offers a powerful, water-efficient 1.08-gallon flush
Automatic flushing after every use; flush can also be controlled by the touch-screen remote or backup button
Minimum static pressure of 20 psi required
Installation
Standard 12" (305 mm) rough-in
Recommended Products/Accessories
K-23726 Drain treatment
Required Electrical Service
One dedicated circuit required, protected with Class A GroundFault Circuit-Interrupter (GFCI). Outside North America, this device may be known as a Residual Current Device (RCD).
120 V, 15 A, 60 Hz

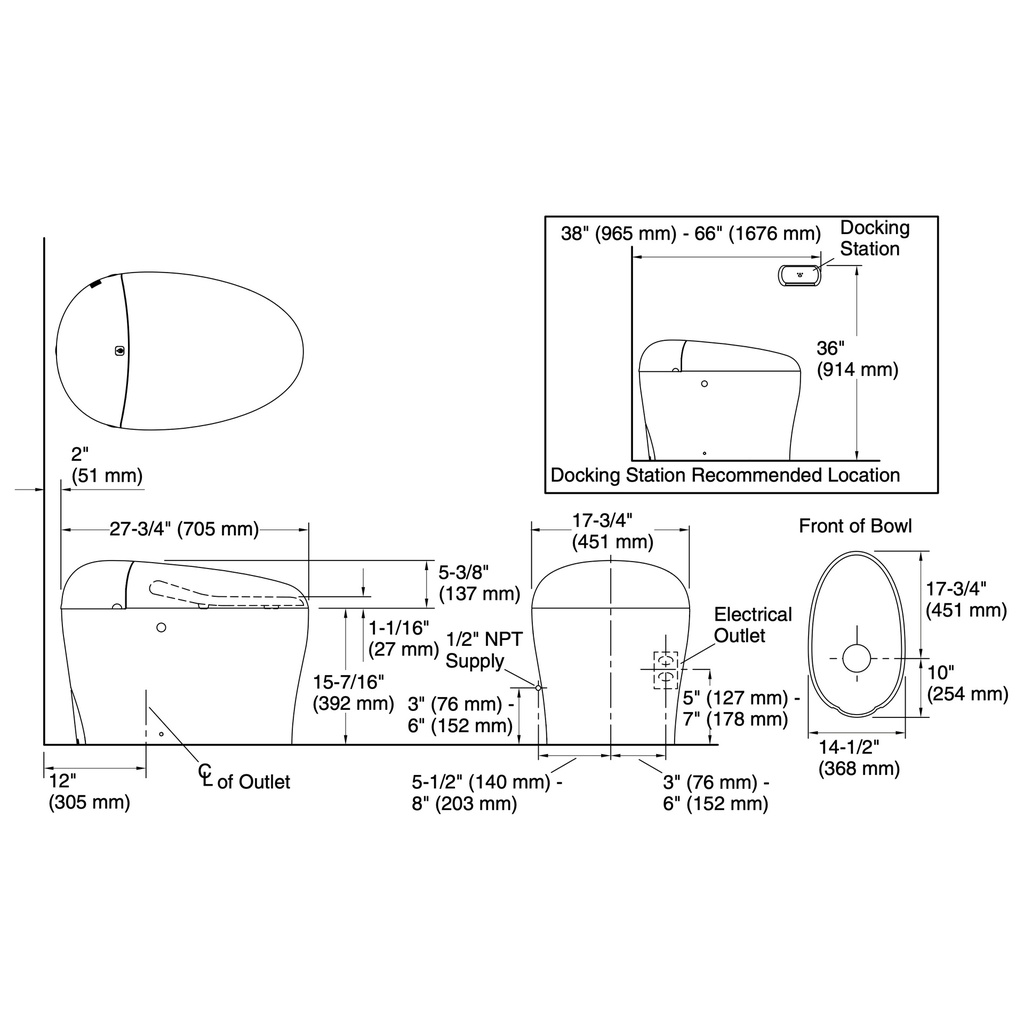

Technical Information
All product dimensions are nominal.
Toilet type: Floor-mount
Waste Outlet: Floor
Bowl shape: Elongated
Flush type: Pressure Lite
Trap passageway: 2-7/8" (73 mm)
Water surface size: 12" x 9-1/2" (305 mm x 241 mm)
Rim to water surface: 4-7/8" (124 mm)
Rough-in: 12" (305 mm)
Seat-mounting holes: 5-1/2" (140 mm)
Fixture Supply Requirements
Min static pressure: 20 psi (137.9 kPa)
