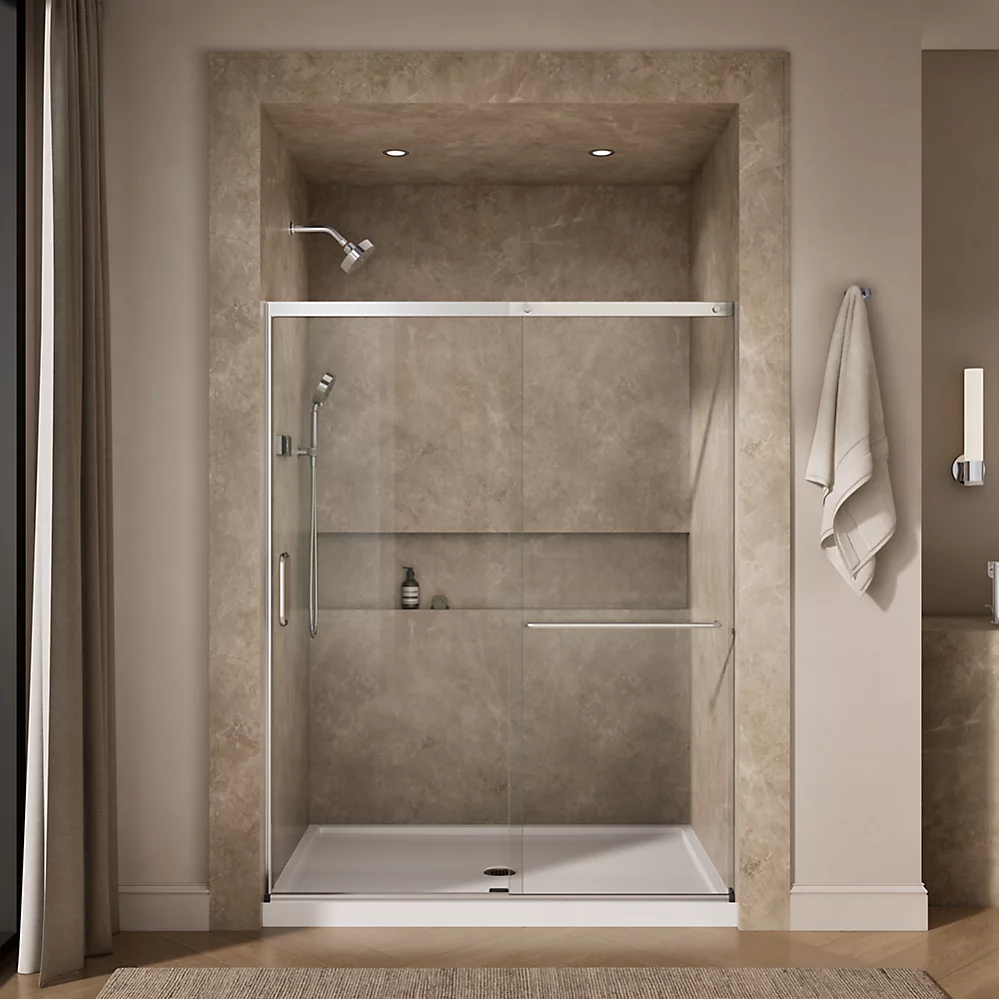

Kohler 707616-8L-SH Elate 75" Sliding Glass Shower Door Bright Silver
Elate®
Sliding shower door, 75-1/2" H x 62-1/4 - 65-5/8" W, with heavy 5/16" thick Crystal Clear glass
K-707616-8L-SH
Color/Finish: Bright Silver
With a sleek, minimalist design, oversized rollers for best-in-class sliding action, and low-maintenance CleanCoat®+ glass treatment, the KOHLER® Elate shower door combines bold style with delightful functionality.
Because Elate can be installed to open from the left or right, it fits easily into your bathroom layout, and 3/8" out-of-plumb adjustability on each side makes the Elate shower door easy to install. A large range of sizes, glass types, and finishes means there’s an Elate clear sliding shower door waiting for you.
Features

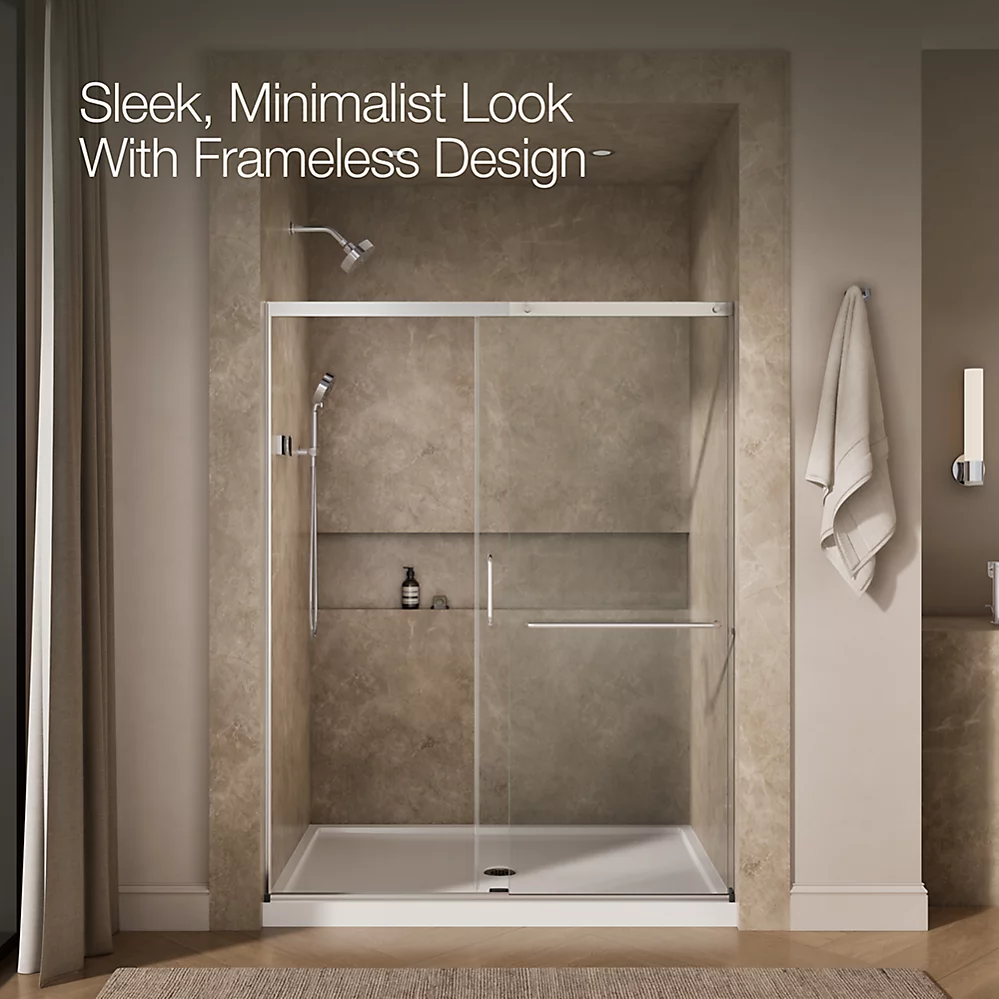

Frameless design emphasizes glass and creates a sleek, minimalist look
Vertical handle with inside knob on moving panel
Gently-curved towel bar provides integrated storage on fixed panel
Tempered glass ensures enhanced safety and durability
CleanCoat®+ glass coating creates a hydrophobic barrier that repels water, soap scum, and residue, saving time and protecting shower doors 10 times longer than original CleanCoat. (Based on 2021 internal wear/abrasion testing using a microfiber cloth.)
Smooth, easy-to-clean wall jambs
Full-length moving panel seal provides excellent water containment
Coordinates with other products in the Elate collection
Shower door configuration consists of one sliding panel and one stationary panel
Material
Frameless, heavy 5/16" (8 mm) thick Crystal Clear tempered glass
Anodized aluminum prevents rust and corrosion
Installation
Fits opening widths 62-1/4" - 65-5/8" (1581 - 1667 mm)
75-1/2" (1918 mm) tall, with a lofty 72-11/16" (1846 mm) minimum head clearance
3-3/8" (86 mm) width adjustment
Out-of-plumb adjustability simplifies installation
Door can be installed to open to the left or right to suit your bathroom layout
For residential use only
Not for use in hospitality
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
SH Bright Silver
MX Matte Nickel
BL Matte Black

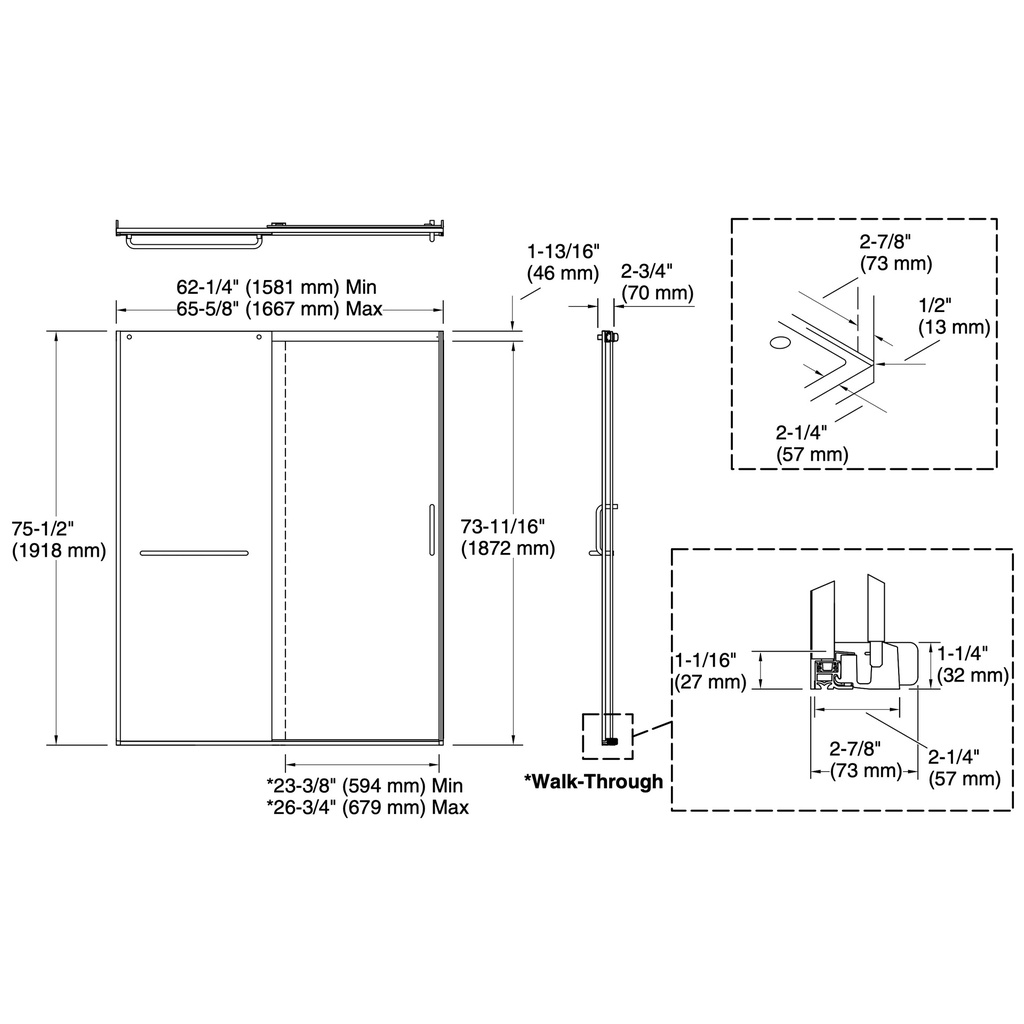

Technical Information
All product dimensions are nominal.
Base-To-Wall
Radius – Max: 1/2" (13 mm)
Shower Ledge Min Flat: 2-1/4" (57 mm)
Shower Wall Min Flat: 2-7/8" (73 mm)
