Kohler 707516-L-BNK Revel 74" Pivot Glass Shower Door Anodized Brushed Nickel
Revel®
Pivot shower door, 74" H x 31-1/8 - 36" W, with 5/16" thick Crystal Clear glass
K-707516-L-BNK
Color/Finish: Anodized Brushed Nickel
The KOHLER® Revel clear pivot shower door creates an open, airy look with its minimalist frameless design and ultra-low threshold. Designed for easy personalization, the Revel series is available in a full range of KOHLER® finishes and height and glass options, so you can choose the ideal door for your space.
This adjustable-width door allows for simpler installation. The 5/16" thick glass offers a luxurious, heavier feel. The tall 74" height enhances the look of the shower environment and better showcases the space for taller shower applications.
Features
Self-closing mechanism offers superior performance and security against water leakage
Vertical handle complements the contemporary style
Ultra-low threshold creates easy entry and exit to the showering space
CleanCoat®+ glass coating creates a hydrophobic barrier that repels water, soap scum, and residue, saving time and protecting shower doors 10 times longer than original CleanCoat. (Based on 2021 internal wear/abrasion testing using a microfiber cloth.)
Tempered glass ensures enhanced safety and durability
Technology
Maximum width adjustability
Material
Frameless, heavy 5/16" (8 mm) thick Crystal Clear tempered glass
Installation
Out-of-plumb adjustability simplifies installation
Door can be installed to open to the left or right to suit your bathroom layout
Pivot shower door
Not for use in hospitality
For residential use only
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
SHP Bright Polished Silver
ABZ Anodized Dark Bronze
BNK Anodized Brushed Nickel

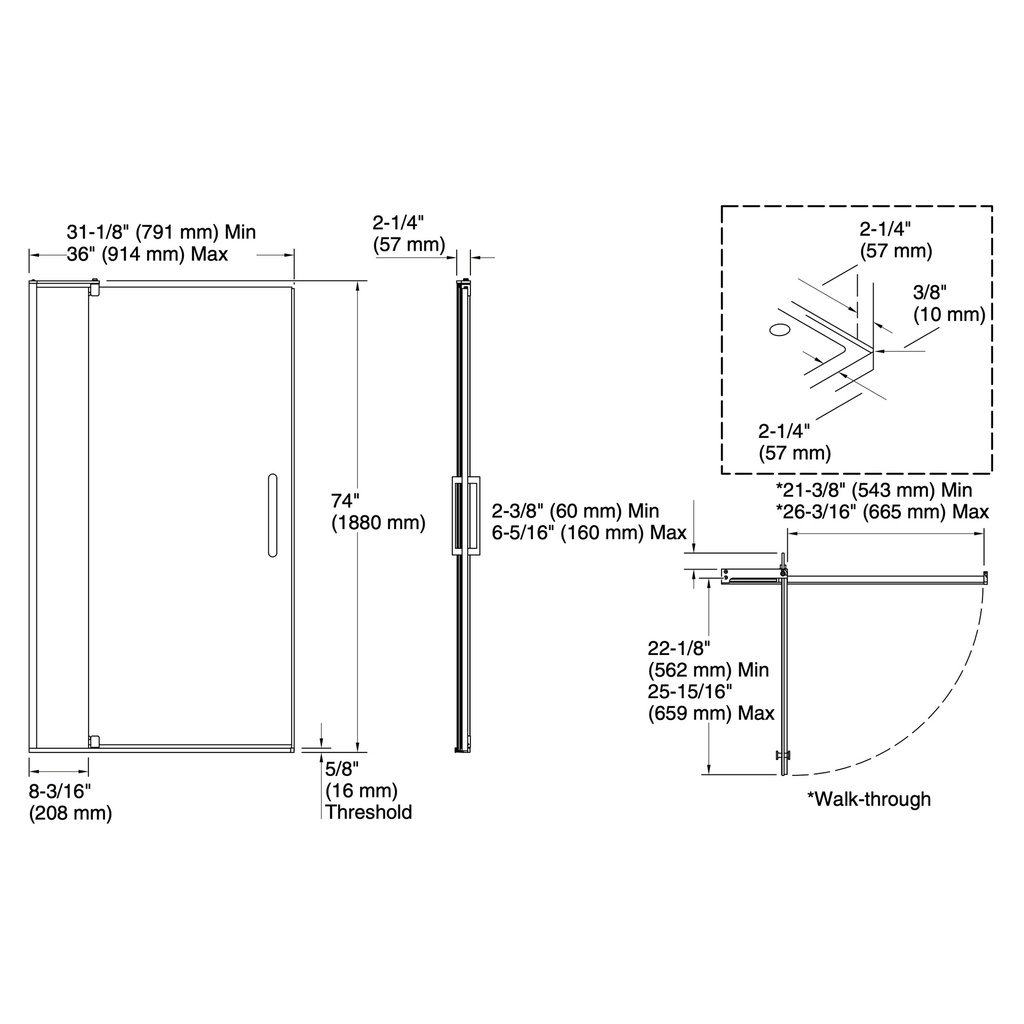

Technical Information
All product dimensions are nominal.
Base-To-Wall
Radius – Max: 3/8" (10 mm)
Shower Ledge Min Flat: 2-1/4" (57 mm)
Shower Wall Min Flat: 2-1/4" (57 mm)
Wall Studs Required for Door: Yes
