Kohler 702254-10G81-BNK Rely 77" H Sliding Shower Glass Door Anodized Brushed Nickel
Rely®
77" H sliding shower door with 3/8"-thick glass
K-702254-10G81-BNK
Color/Finish: Anodized Brushed Nickel

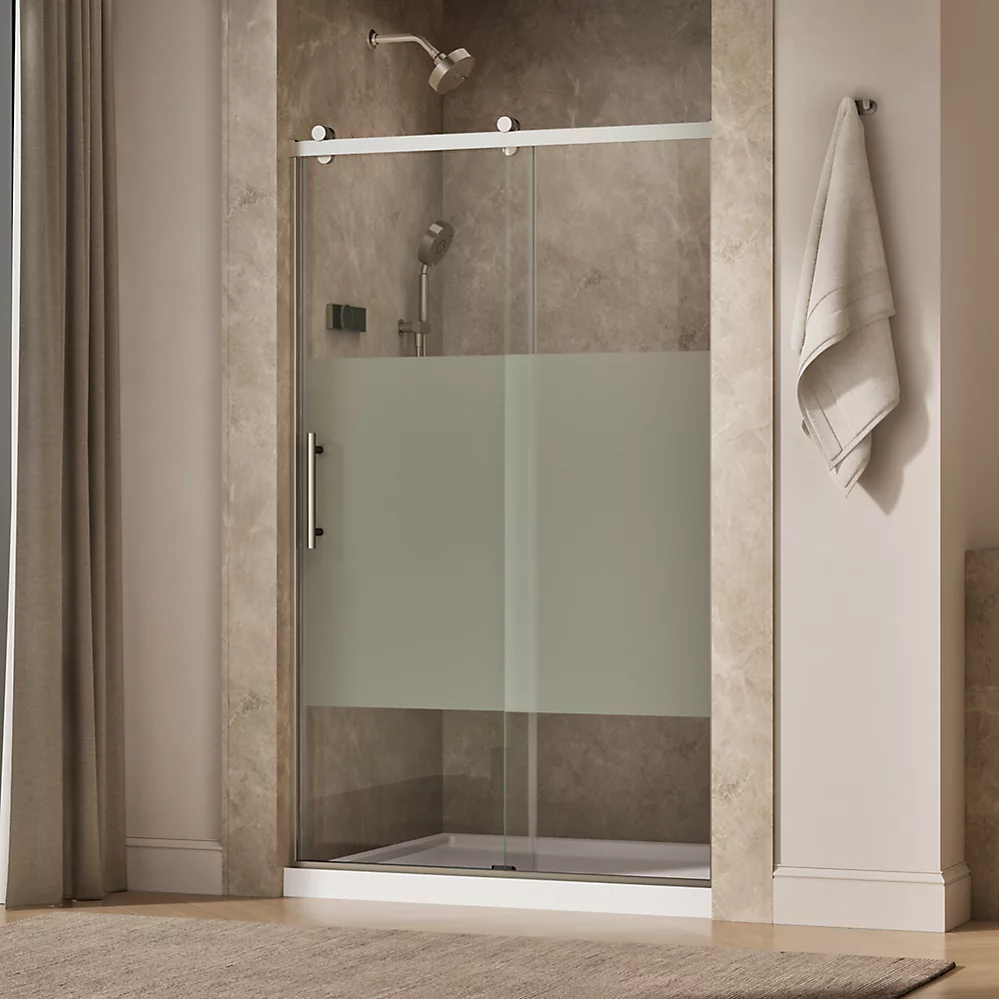

With a sleek, minimalist design, oversized rollers for best-in-class sliding action, and low-maintenance CleanCoat®+ glass treatment, the KOHLER® Rely shower door combines bold style with delightful functionality. Because Rely can be installed to open from the left or right, it fits easily into your bathroom layout, and 3/8" out-of-plumb adjustability on each side makes the Rely shower door easy to install. A range of sizes, glass types, and finishes means there’s a Rely clear sliding shower door waiting for you.
Features

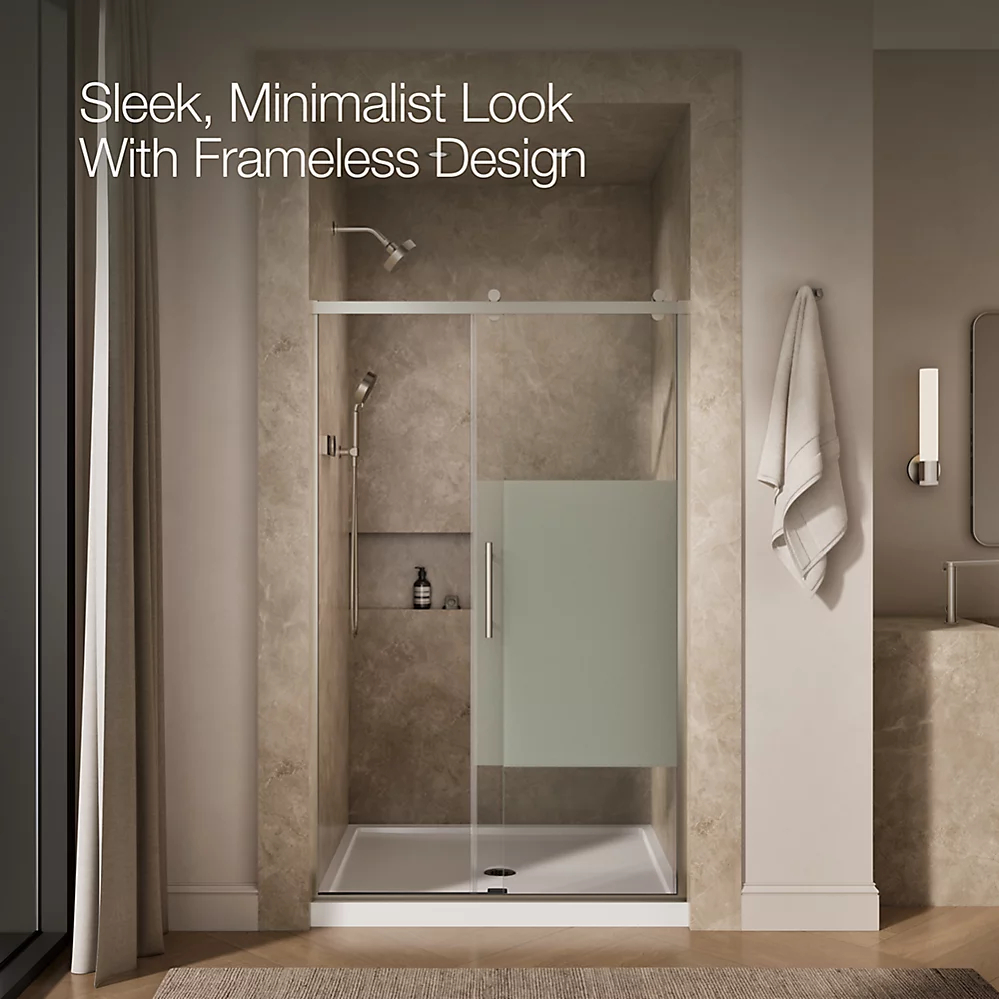

Frameless design emphasizes glass and creates a sleek, minimalist look

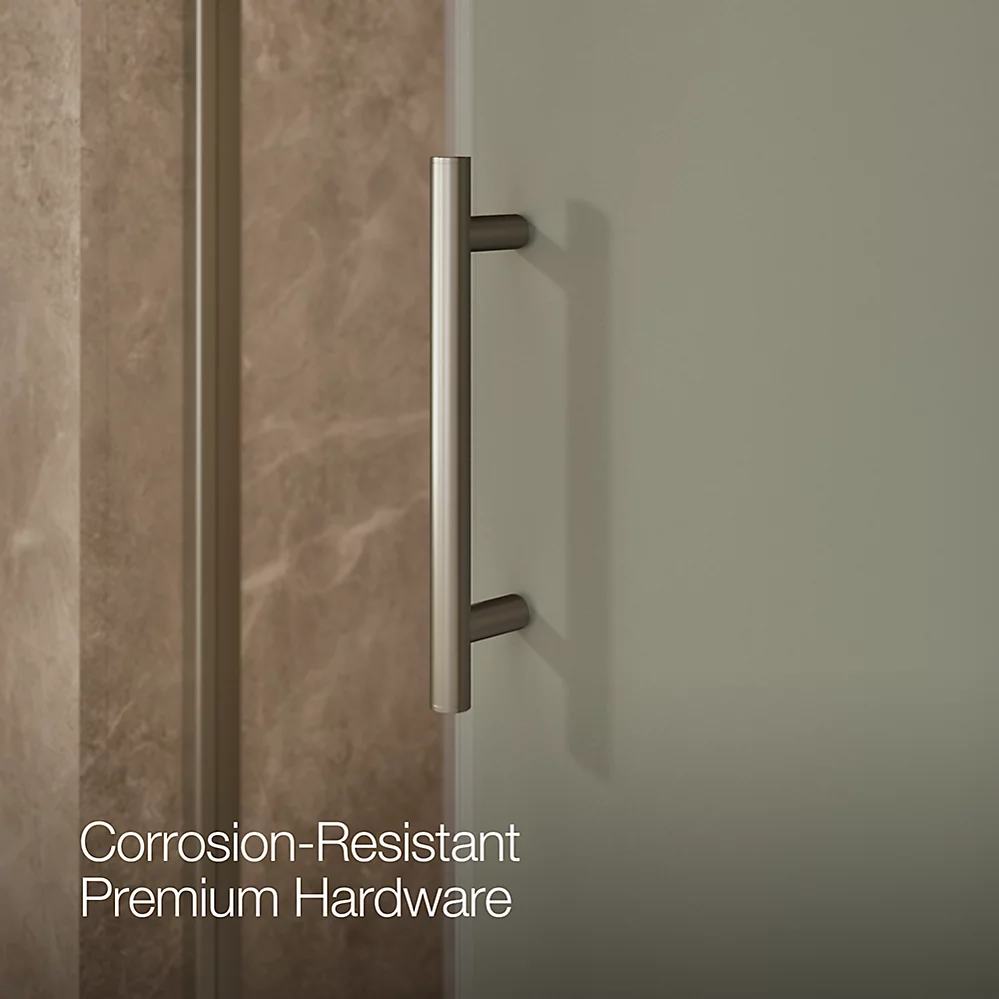

Vertical handle with inside knob on moving panel
Tempered glass ensures enhanced safety and durability
CleanCoat®+ glass coating creates a hydrophobic barrier that repels water, soap scum, and residue, saving time and protecting shower doors 10 times longer than original CleanCoat. (Based on 2021 internal wear/abrasion testing using a microfiber cloth.)
Smooth, easy-to-clean wall jambs
Full-length moving panel seal provides excellent water containment
Controlled Close® innovative soft-close with double-dampening technology brings door to a secure close
Shower door configuration consists of one sliding panel and one stationary panel
Coordinates with other products in the Rely collection
Material
Frameless, heavy 3/8" (10 mm) thick Crystal Clear tempered glass with frosted privacy band
Anodized aluminum prevents rust and corrosion
Installation

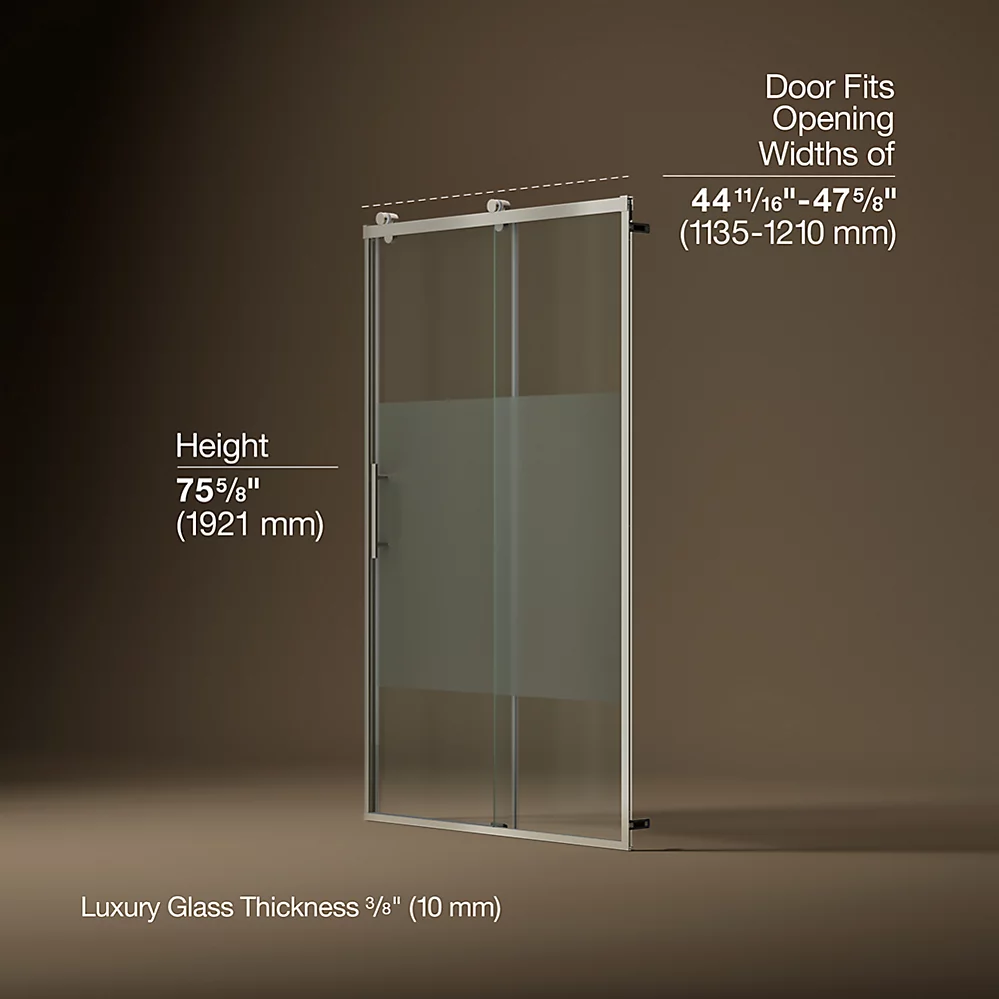

Fits opening widths 44-5/8" – 47-5/8" (1133 – 1210 mm)
77" (1956 mm) high, with a lofty 73-7/8" (1876 mm) minimum head clearance
3" (76 mm) width adjustment
Out-of-plumb adjustability simplifies installation
Door can be installed to open to the left or right to suit your bathroom layout
For residential use only
Not for use in hospitality
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
SHP Bright Polished Silver
2MB Vibrant® Brushed Moderne Brass
BL Matte Black
BNK Anodized Brushed Nickel

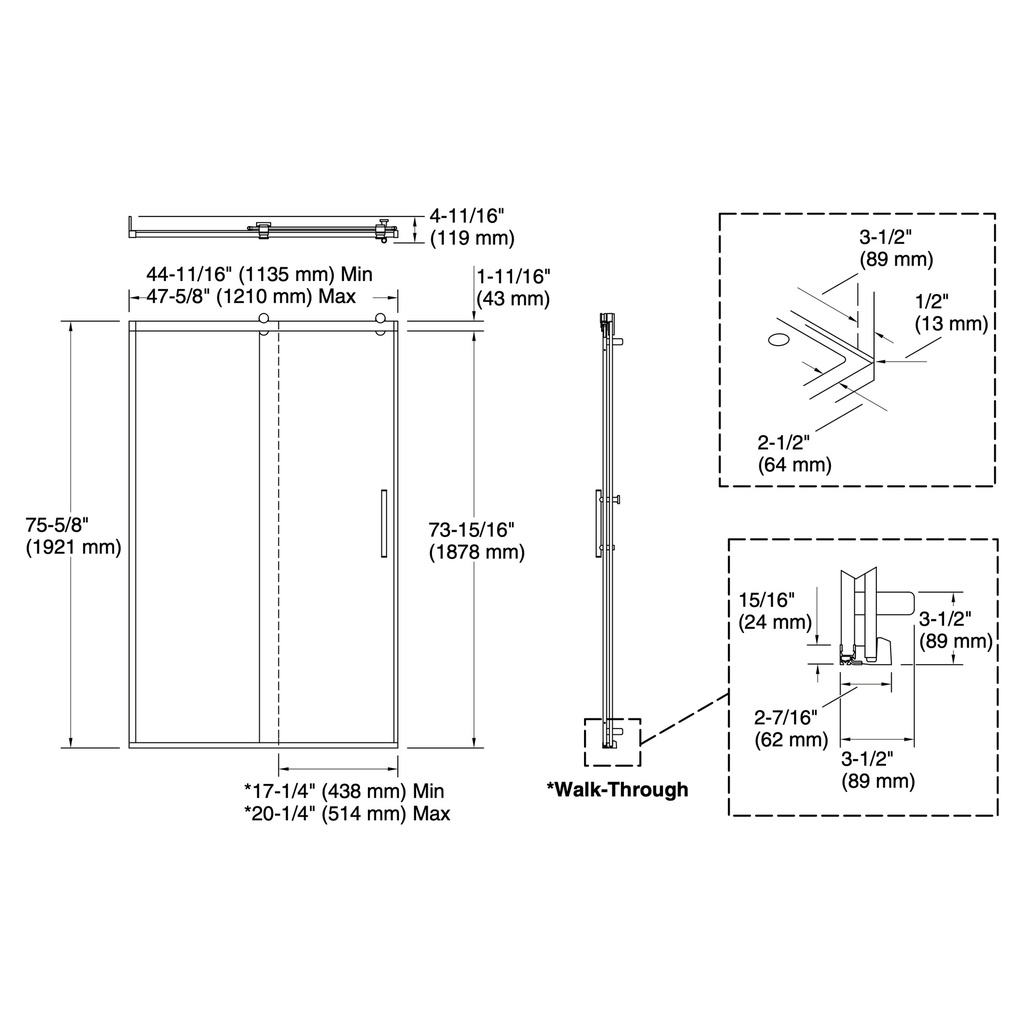

Technical Information
All product dimensions are nominal.
Base-To-Wall
Radius – Max: 1/2" (13 mm)
Shower Ledge Min Flat: 2-1/2" (64 mm)
Shower Wall Min Flat: 3-1/2" (89 mm)
