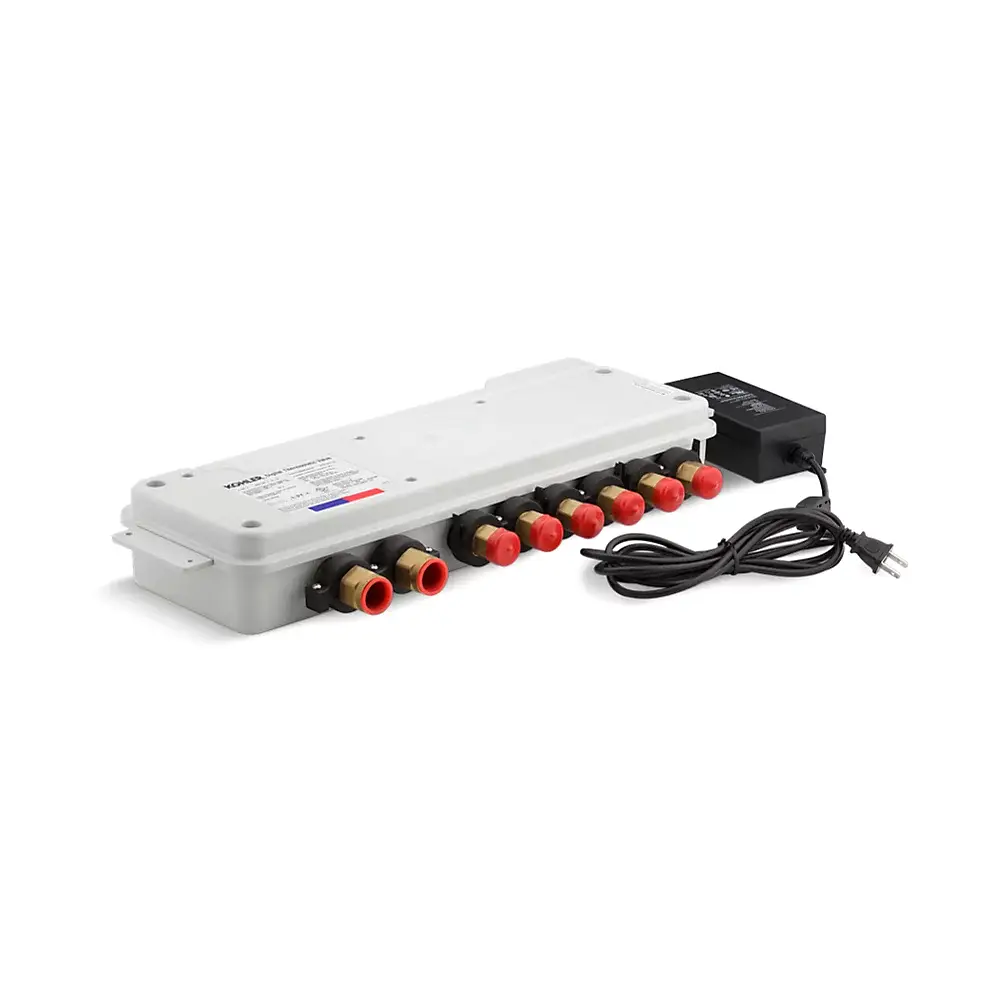

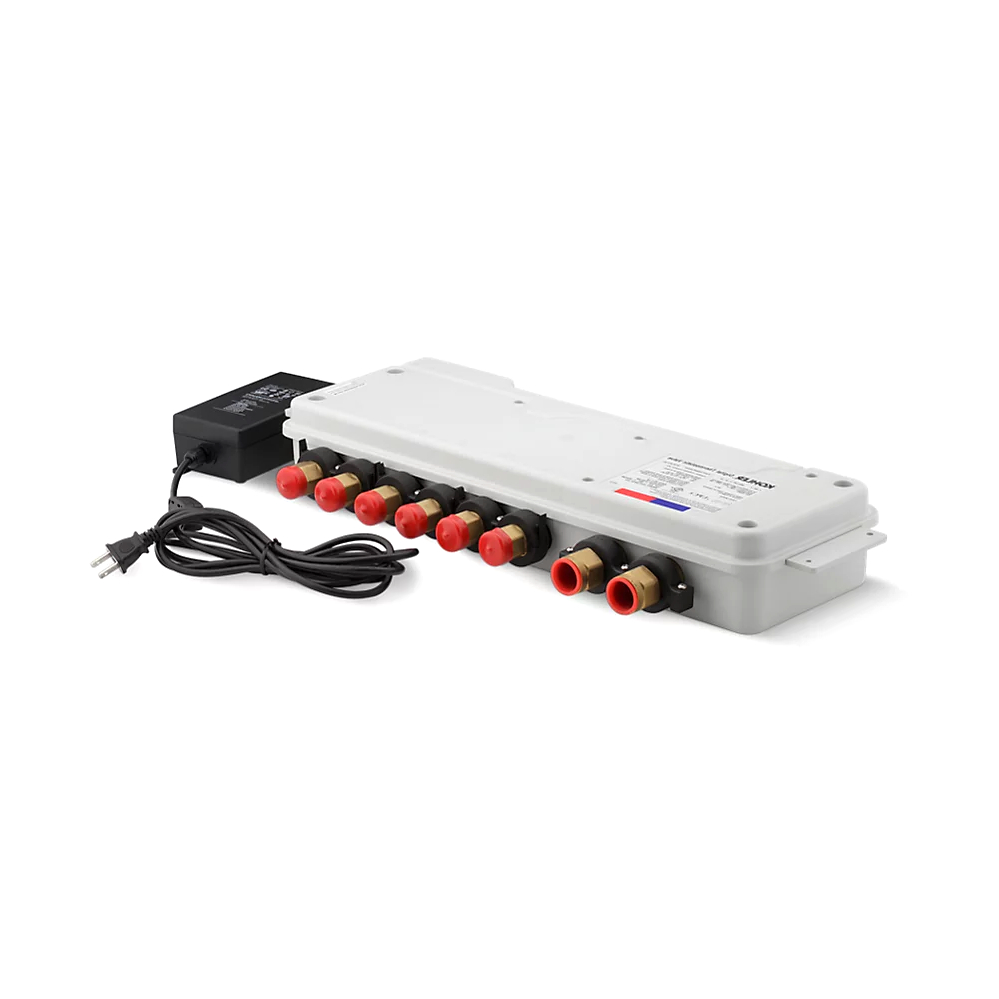

Kohler 682-K-NA DTV Six Port Thermostatic Valve
DTV®
Six-port thermostatic valve
K-682-K-NA
For custom showering applications, this KOHLER® DTV+ six-port thermostatic valve elevates your showering experience through the power of technology, giving you more options for cleansing and relaxation than ever. Digital thermostatic technology provides accurate, precise, and consistent temperature control.
This six-port thermostatic valve's precision-engineered, best-in-class digital thermostatic valve is used with KOHLER® DTV+, and its easy plug-and-go design makes installation simple. With six independently controllable outlet ports, this valve is ideal for any custom showering application.
Additionally, with a DTV+ system, this valve can also be used in combination with a second digital valve to provide either additional outlets or to deliver two different water temperatures at the same time. (For DTV+ systems, a data cable is required.)
Features
Digitally controlled thermostatic mixing valve
For use with DTV+ system
Antiscald protection
Six independently controllable 1/2" NPT (13 mm) outlets
3/4" NPT inlets
Maximum flow rate of 21.0 gpm (79.5 lpm) with 10.0 gpm (37.9 lpm) maximum flow from one outlet
Includes filter screens
Crossflow prevention
High-temperature limit setting for additional protection
Installation
Suitable for use in either showering and/or bathing applications
Mounts within standard 2" x 4" (38 x 102 mm) walls
Includes 110 V AC power supply
Data cable sold separately
Required Products/Accessories
K-99694 Interface Mounting Bracket

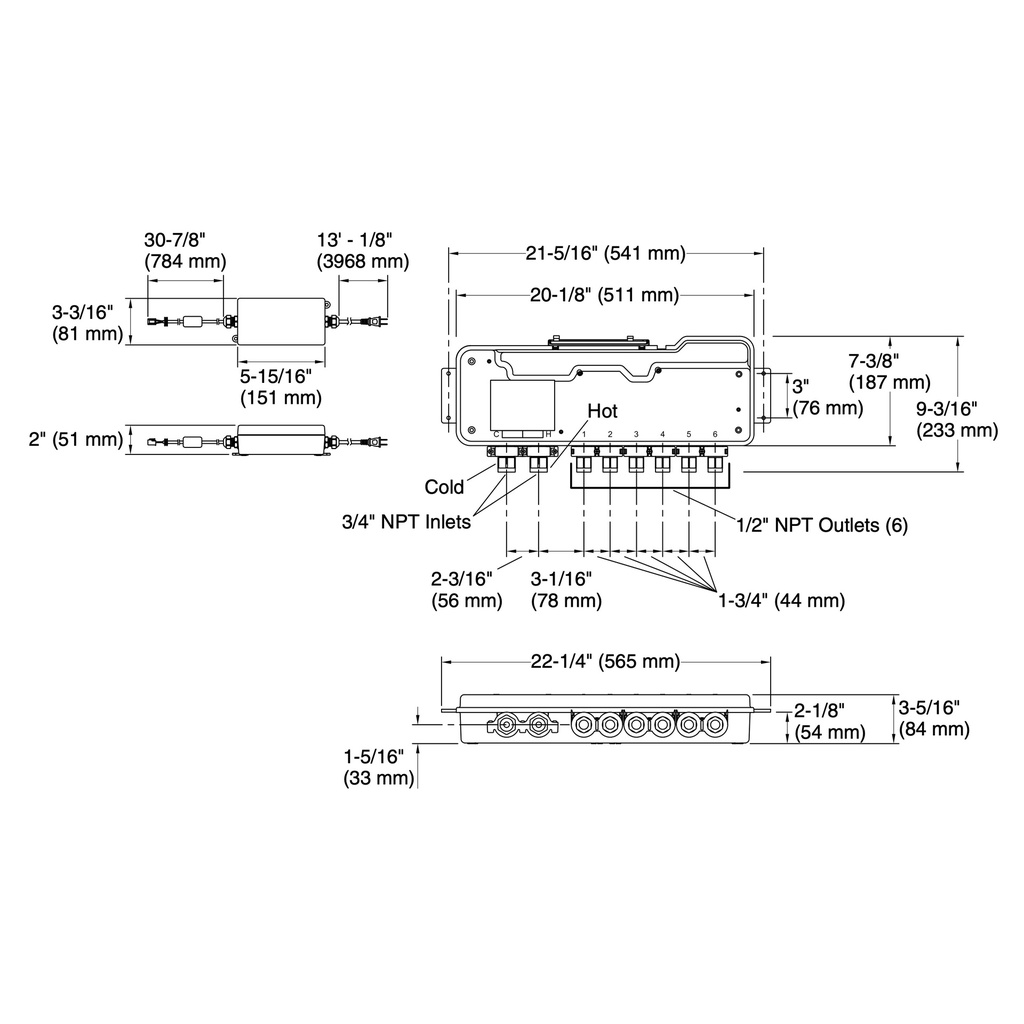

Technical Information
All product dimensions are nominal.
Electrical component rating:
Thermostatic valve: 120/240 V, 1.5 A, 50/60 Hz
Spout:
Shower Valve:
Flow Rate (Max) @ 45 psi 21 gal/min (79.5 l/min)
Manufacturer's minimum rated flow: 1.6 gal/min (6.1 l/min)
