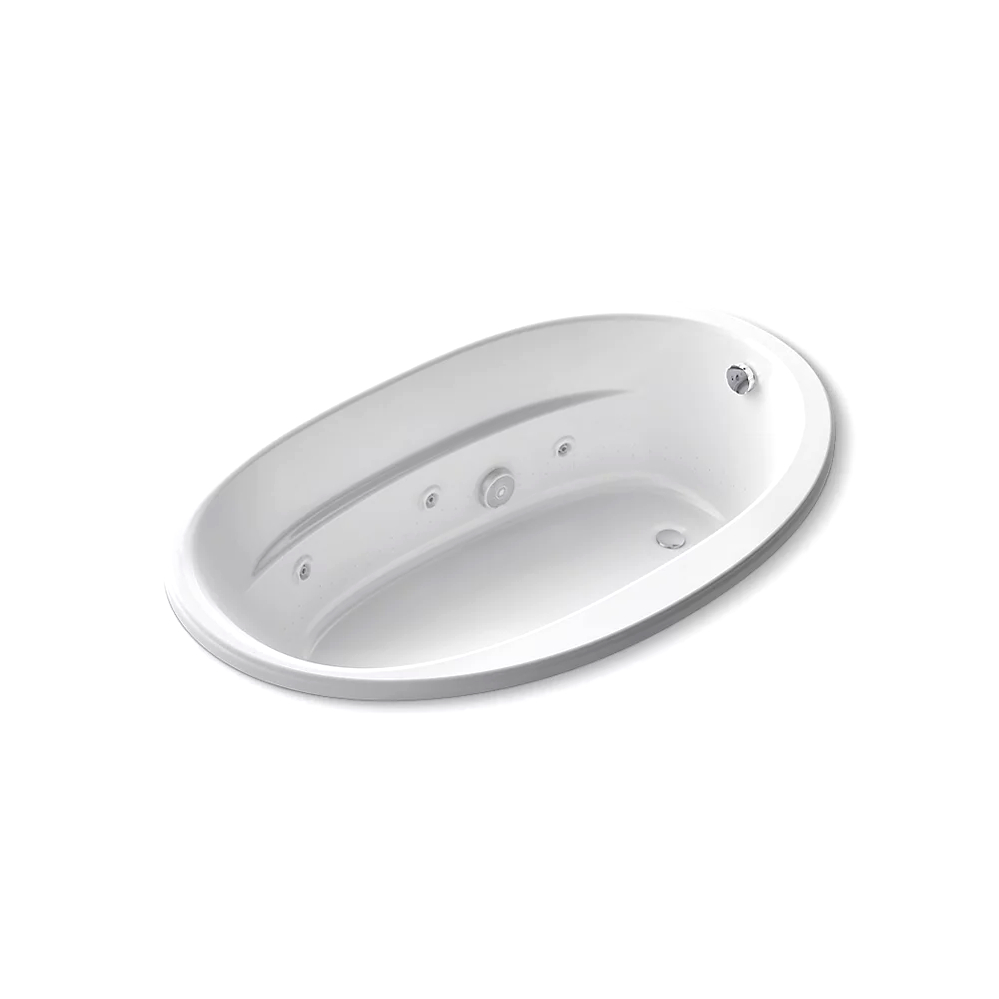

Kohler 6347-HB-0 Sunward 66" x 42" Drop-in Heated Whirlpool Bath White
Sunward®
66" x 42" drop-in heated whirlpool bath
K-6347-HB-0
Color/Finish: White
Surround yourself with the comfortable contours and hydromassage features of the KOHLER® Sunward 66" x 42" oval drop-in bath. The built-in back support and armrests encourage you to fully sink in, while adjustable whirlpool jets relax away the day's tension. A built-in heater keeps the water at your perfect temperature. Multiple pump location options give you more choices for installation.
Features
Single-speed whirlpool offers performance and value, with six fully adjustable jets
Hydromassage flow and direction can be controlled at each jet
Built-in heater
Oval basin creates a spacious bathing experience
Integral lumbar support and armrests offer extra comfort while bathing
Textured bottom surface
Multiple pump location options give you more choices for installation and access
Hydrotherapy
Whirlpool
Material
Acrylic
Installation
Reversible drain
Drop-in or undermount
Smooth backside for easy handling and mounting of drain and overflow
Required Products/Accessories
K-11677 Bath Drain
Recommended Products/Accessories
K-738 Under-Mount Install Kit - K-6346/K-6347
K-23726 Drain treatment
Required Electrical Service
Two dedicated circuits required, protected with Class A GroundFault Circuit-Interrupter (GFCI). Outside North America, this device may be known as a Residual Current Device (RCD).
Pump: 120 V, 15 A, 60 Hz

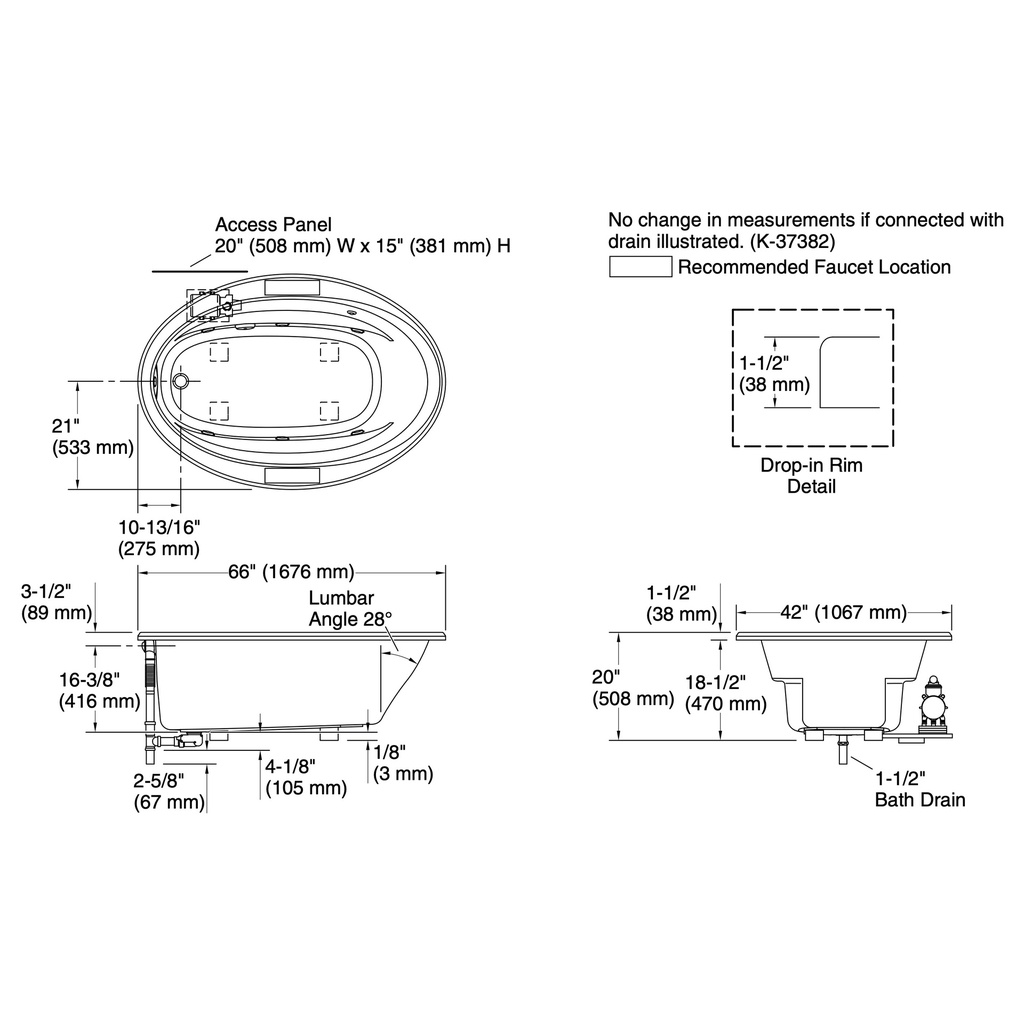

Technical Information
All product dimensions are nominal.
Drain location: Reversible
Basin area, bottom: 48-5/8" x 24-1/2" (1235 mm x 622 mm)
Basin area, top: 60" x 32-3/16" (1523 mm x 818 mm)
Minimum floor load: 34 lbs/ft² (166 kg/m²)
Water depth: 14-5/16" (364 mm)
Water capacity: 70 gal (265 L)
Template: Drop-in, 1233384-7, not required, included
Electrical component rating:
Pump: 120 V, 7.5 A, 60 Hz
Heater: 120 V, 12.5 A, 60 Hz, 1500 W
Pump speed: Single
