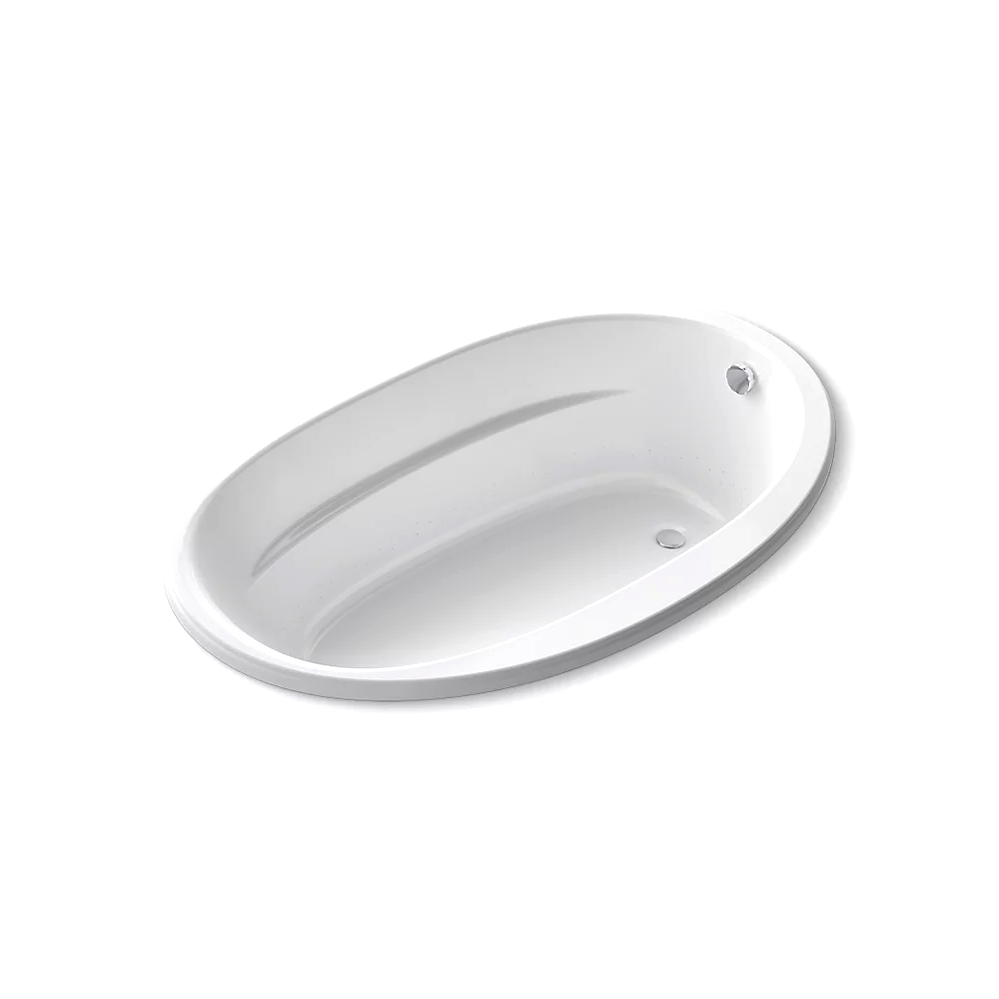

Kohler 6347-GH-0 Sunward 66" x 42" Drop-in Heated Air Bath White
Sunward®
66" x 42" drop-in Heated BubbleMassage™ air bath
K-6347-GH-0
Color/Finish: White
Surround yourself with the comfortable contours of the KOHLER® Sunward Heated BubbleMassage™ oval air bath. Built-in back support and armrests allow you to fully sink into the moment, as strong, steady heated whirlpool jets target sore muscles. Designed to turn any bathing area into a relaxing retreat, this 66" x 42" oval drop-in bath's fluid lines convey grace and sophistication.
Features
120 airjets release thousands of heated bubbles that surround and support the body in a warm massage
Variable-speed blower lets you adjust massage intensity to 18 levels
Built-in heater
Automatic and manual purge cycles remove residual water from air channels after use
60-minute automatic shutoff timer
Oval basin creates a spacious bathing experience
Spacious design accommodates up to two bathers
Integral lumbar support and armrests offer extra comfort while bathing
Keypad control
Textured bottom surface
Technology
Heated BubbleMassage™ technology warms and humidifies air before it enters the bath
Material
Acrylic
Installation
Drop-in or undermount
Reversible drain
120 V electrical requirement allows for easy installation with standard outlet
Requires two dedicated circuits
Required Products/Accessories
K-11677 Bath Drain
Recommended Products/Accessories
K-738 Under-Mount Install Kit - K-6346/K-6347
Required Electrical Service
Two dedicated circuits required, protected with Class A GroundFault Circuit-Interrupter (GFCI). Outside North America, this device may be known as a Residual Current Device (RCD).
Blower: 120 V, 15 A, 60 Hz
Air bath: 120 V, 15 A, 60 Hz

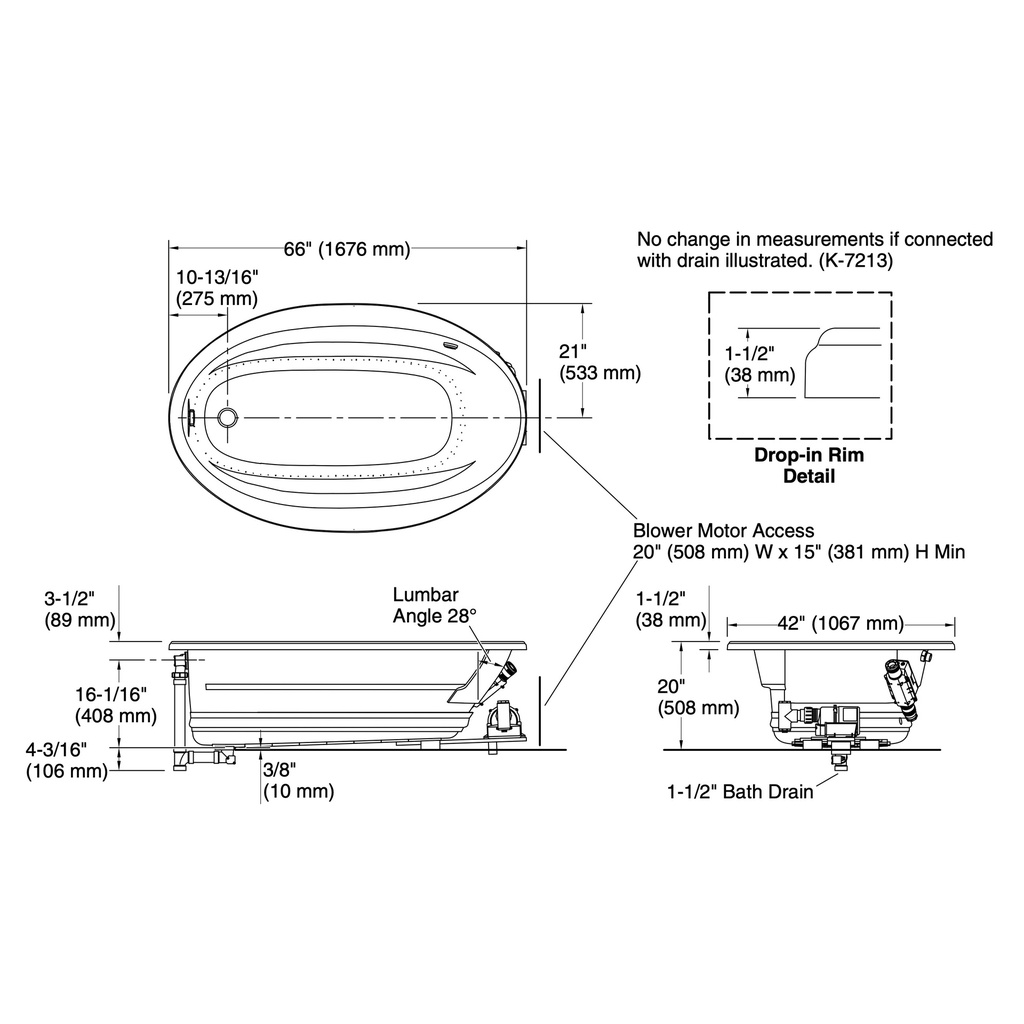

Technical Information
All product dimensions are nominal.
Drain location: Reversible
Basin area, bottom: 48-5/8" x 24-1/2" (1235 mm x 622 mm)
Basin area, top: 60" x 32-3/16" (1523 mm x 818 mm)
Weight: 122 lbs (55.3 kg)
Minimum floor load: 34 lbs/ft² (166 kg/m²)
Water depth: 14-5/16" (364 mm)
Water capacity: 70 gal (265 L)
Template: Drop-in, 1233384-7, not required, included
Electrical component rating:
Blower: 120 V, 10 A, 60 Hz
Air bath: 120 V, 5 A, 60 Hz
