Kohler 5717-0 Underscore 71-1/2" x 41-1/2" Drop-in Bath White
Underscore®
71-1/2" x 41-1/2" drop-in bath
K-5717-0
Color/Finish: White
Streamlined for simplicity, the KOHLER® Underscore oval bath exudes refined style with contemporary flair. A slotted overflow drain allows for a luxuriously deep 71-1/2" x 41-1/2" oval drop-in bath as you relax against the comfortable sloped backrest.
Features
Integral lumbar support
Oval basin creates a spacious bathing experience

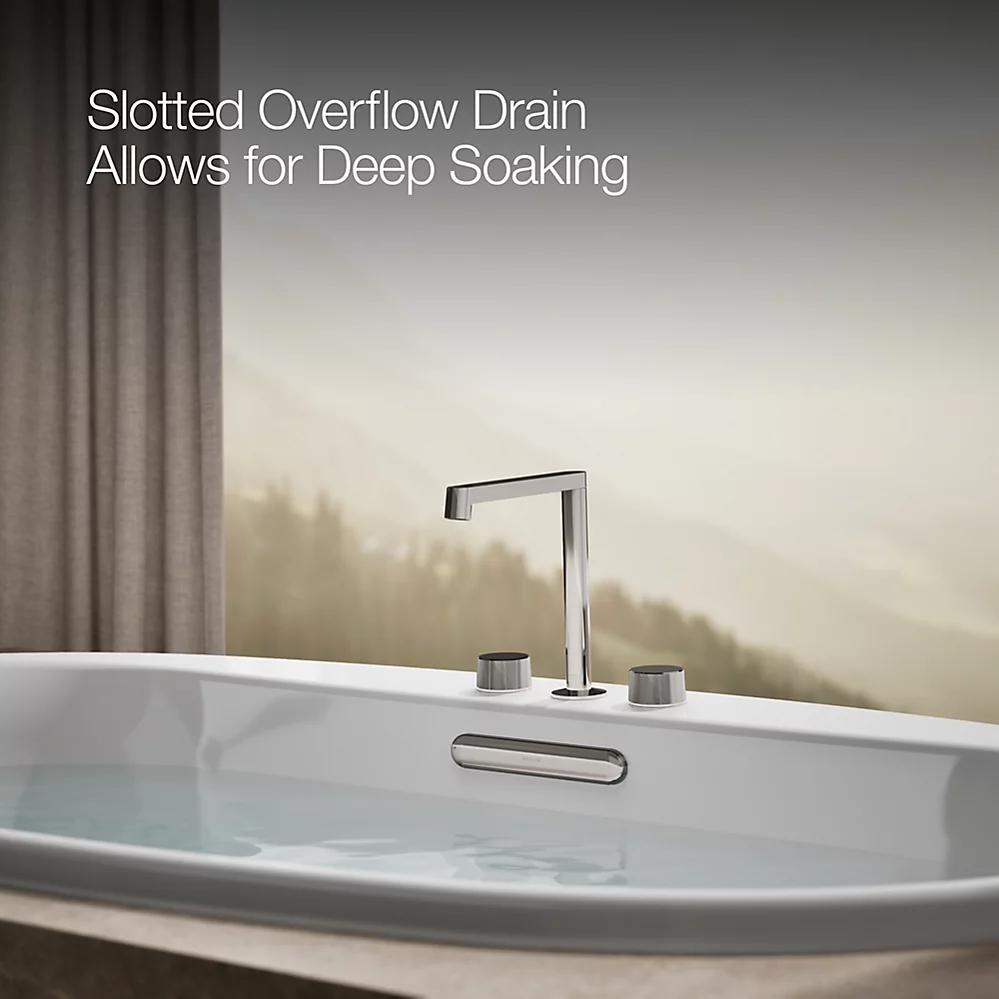

Slotted overflow allows for deep soaking
Material
Acrylic
Installation
Requires Clearflo slotted overflow bath drain (sold separately)
Center drain
Drop-in or undermount
Required Products/Accessories
K-7271 Brass Slotted Overflow Bath Drain
K-7272 PVC Slotted Overflow Bath Drain
Recommended Products/Accessories
K-883 Under-Mount Installation Kit
K-886 Under-Mount Installation Kit
K-23726 Drain treatment
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
0 White
96 Biscuit
95 Ice™ Grey
7 Black Black

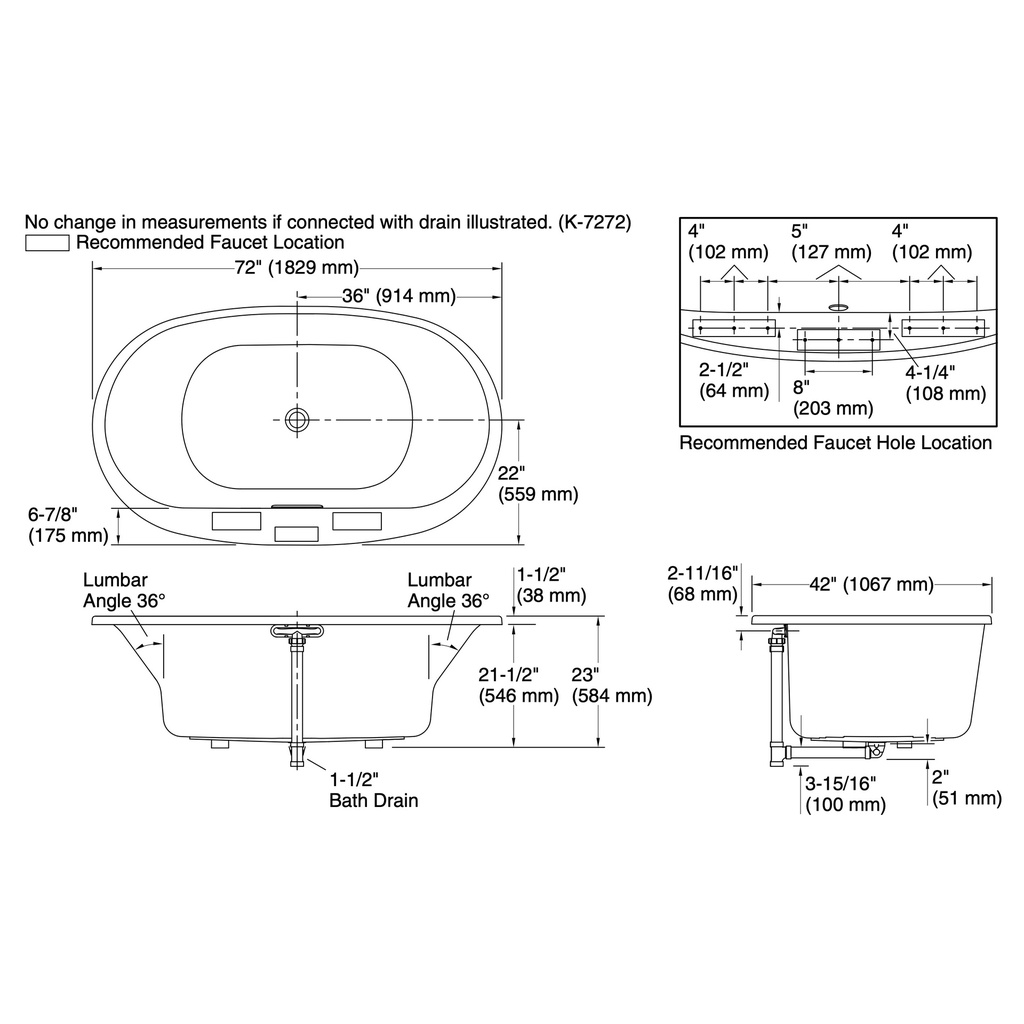

Technical Information
All product dimensions are nominal.
Drain location: Center
Basin area, bottom: 46-5/16" x 31-3/16" (1177 mm x 792 mm)
Basin area, top: 63-7/16" x 34-1/4" (1611 mm x 869 mm)
Weight: 105 lbs (47.6 kg)
Minimum floor load: 52.3 lbs/ft² (255.4 kg/m²)

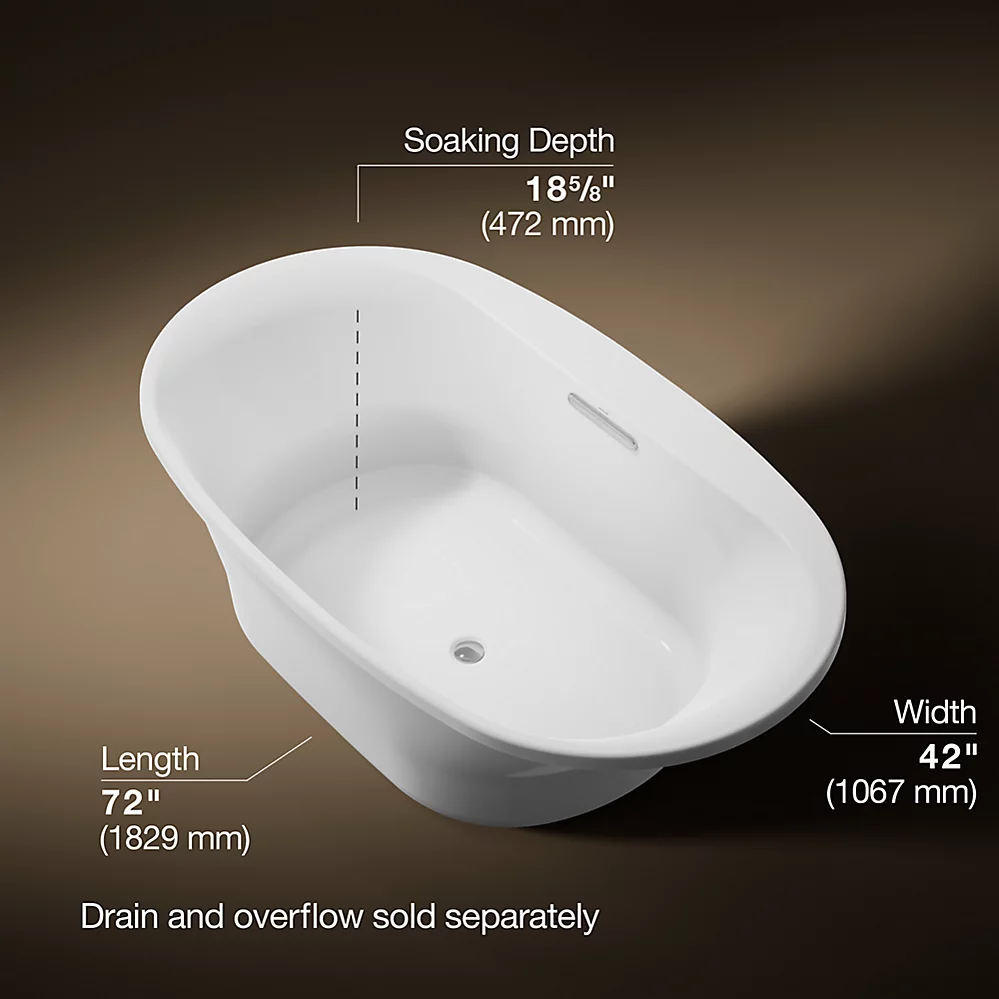

Water depth: 18-5/8" (472 mm)
Water capacity: 112.2 gal (424.7 L)
Template: Drop-in, 1268440-7, required, included
