Kohler 5716-JH-96 Underscore 66" x 36" Drop-in Heated Whirlpool Bath Biscuit
Underscore®
66" x 36" drop-in heated whirlpool bath
K-5716-JH-96
Color/Finish: Biscuit
With clean, smooth lines, the KOHLER® Underscore whirlpool bath is a welcome retreat to soak away the day’s tension and center your mind. Lie back and melt in the 66" x 36" oval drop-in deep bath as eight fully-adjustable jets deliver a powerful hydromassage, while the built-in heater maintains the water at your desired temperature to create a soothing, spa-like environment. Realize your vision. It’s all at the touch of your finger…
Features

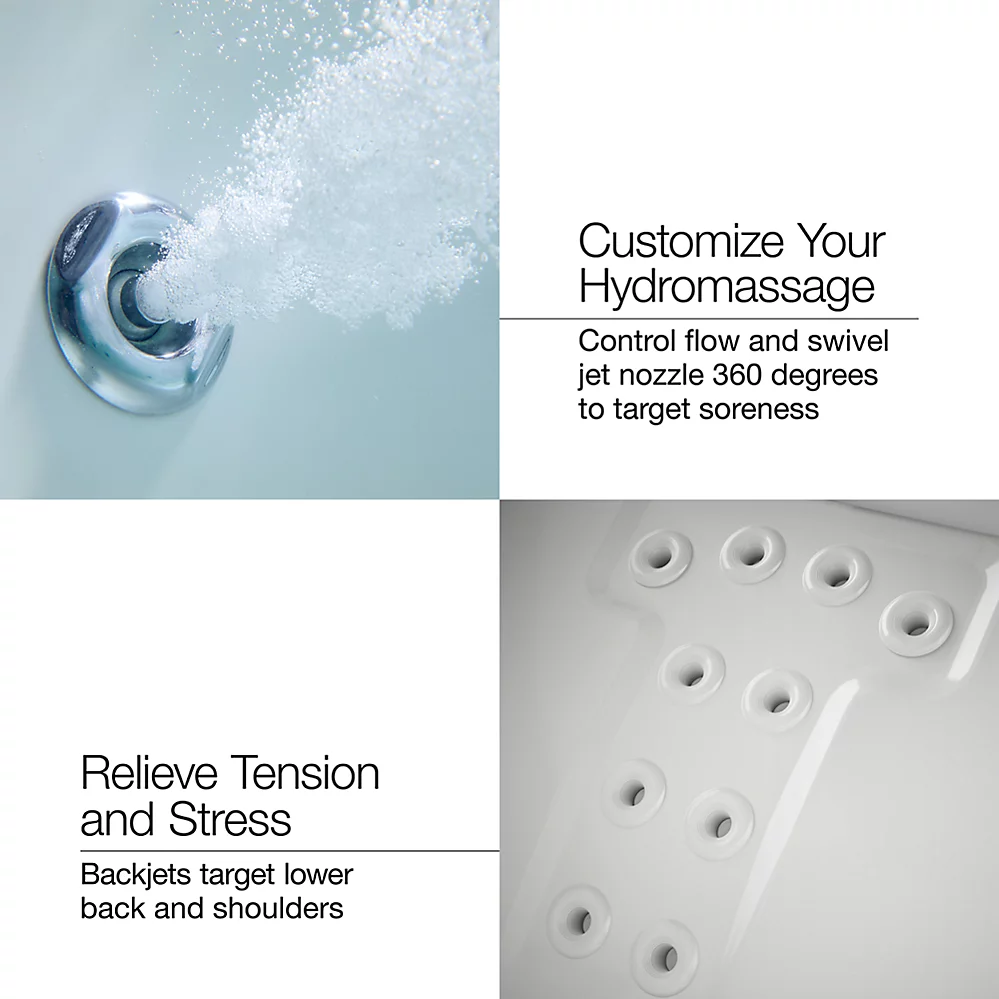

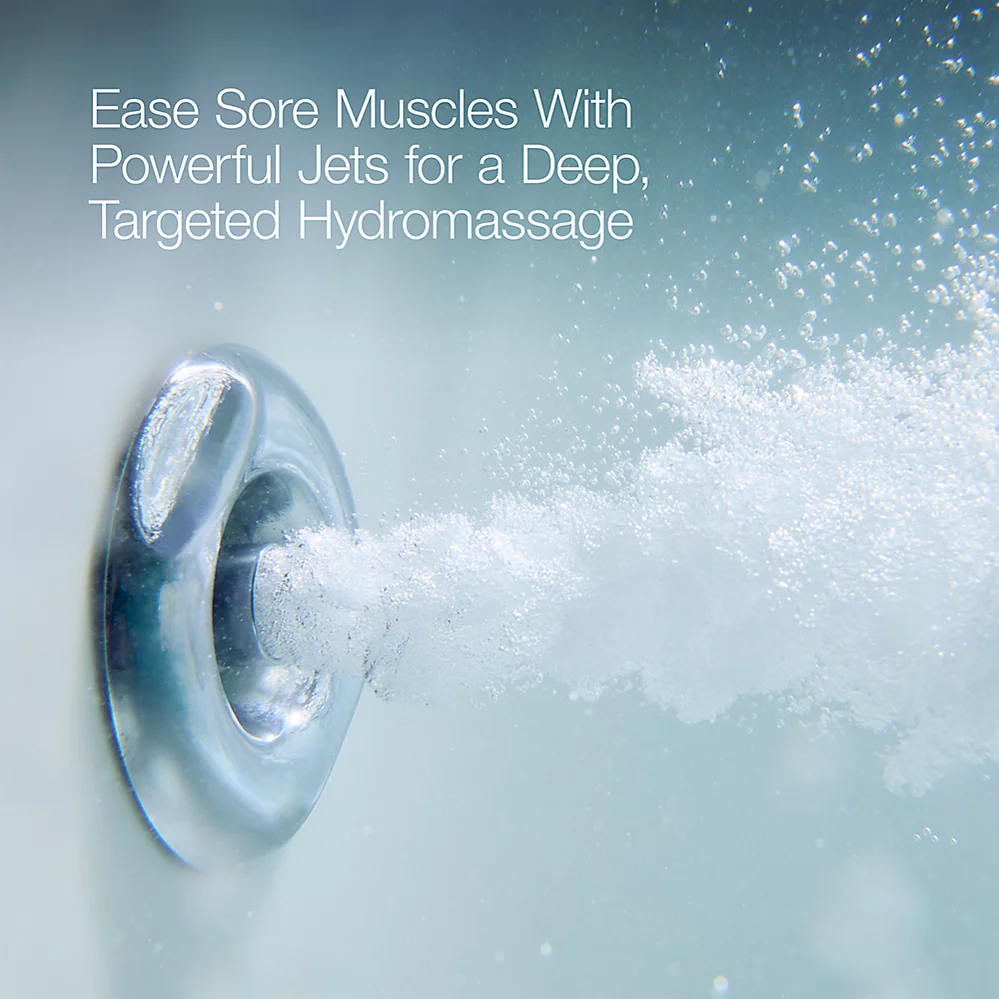

Eight Proflex® hydromassage jets can be individually adjusted for water flow and direction
Single-speed whirlpool offers performance and value with 8 fully adjustable jets
Built-in heater
Slotted overflow allows for deep soaking
Oval basin creates a spacious bathing experience
Spacious design accommodates up to two bathers
Wide ledge on one side is ideal for deck-mount faucet and/or handshower
Integral lumbar support
Textured bottom surface
Material
Acrylic
Installation
Requires Clearflo slotted overflow bath drain (sold separately)
Drop-in or undermount
Center drain
120 V electrical requirement allows for easy installation with standard outlet
Requires two dedicated circuits
Required Products/Accessories
K-7271 Brass Slotted Overflow Bath Drain
K-7272 PVC Slotted Overflow Bath Drain
Recommended Products/Accessories
K-1491 Bath/Whirlpool Pillow
K-1601 Bath/whirlpool footstop, removable
K-1177 Vinyl Tiling-in Bead
K-883 Under-Mount Installation Kit
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
0 White
96 Biscuit
NY Dune
95 Ice™ Grey
7 Black Black
Required Electrical Service
Two dedicated circuits required, protected with Class A GroundFault Circuit-Interrupter (GFCI). Outside North America, this device may be known as a Residual Current Device (RCD).
Pump: 120 V, 15 A
Heater: 120 V, 15 A, 60 Hz
Technical Information

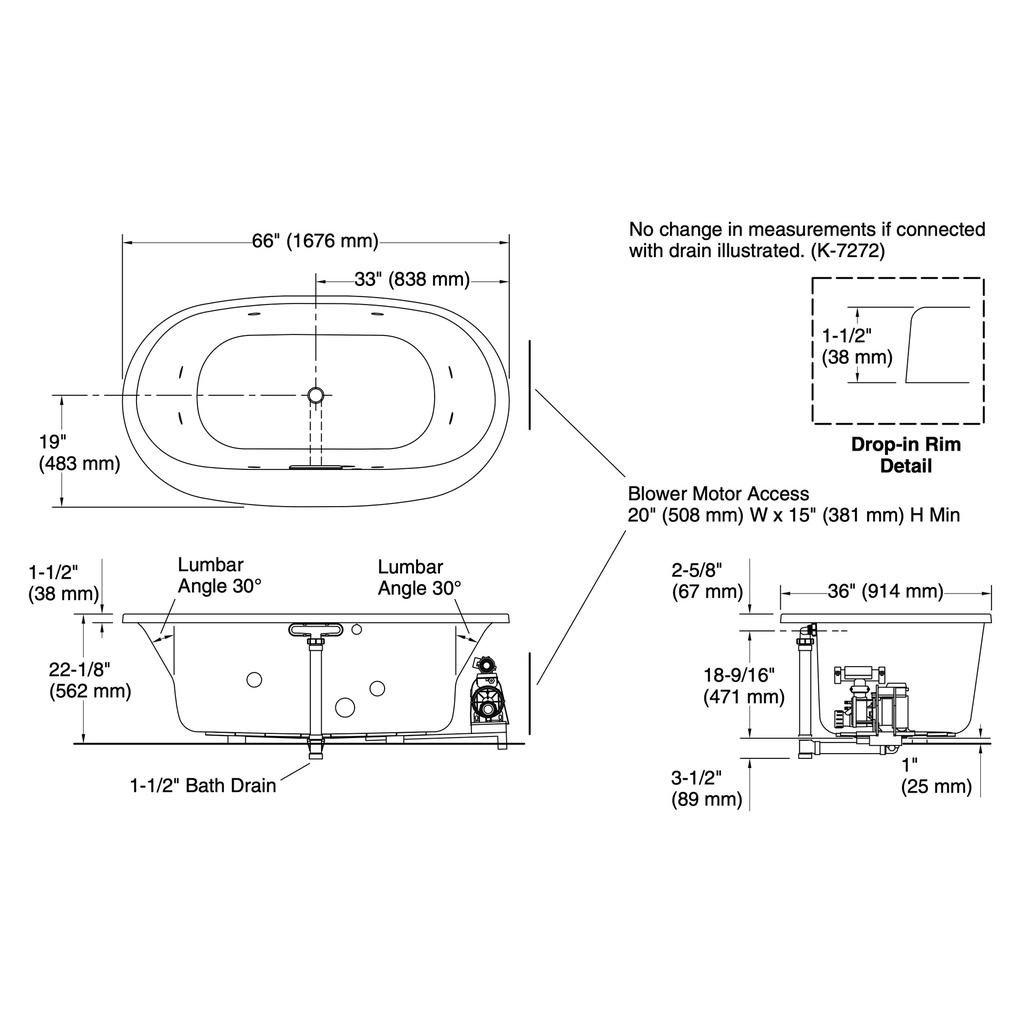

All product dimensions are nominal.
Drain location: Center
Basin area, bottom: 46-5/16" x 25-3/8" (1177 mm x 644 mm)
Basin area, top: 64-15/16" x 29-5/16" (1649 mm x 744 mm)
Weight: 93 lbs (42.2 kg)
Minimum floor load: 54.8 lbs/ft² (267.6 kg/m²)
Water depth: 17-7/16" (442 mm)
Water capacity: 84.55 gal (320.1 L)
Electrical component rating:
Pump: 120 V, 7 A, 60 Hz
Heater: 120 V, 12 A, 60 Hz
