Kohler 5714-JH-0 Underscore 60" x 36" Drop-in Heated Whirlpool Bath White
Underscore®
60" x 36" drop-in heated whirlpool bath
K-5714-JH-0
Color/Finish: White
With clean, smooth lines, the KOHLER® Underscore whirlpool bath is a welcome retreat to soak away the day’s tension and center your mind. Lie back and melt in the 60" x 36" oval drop-in deep bath as eight fully-adjustable jets deliver a powerful hydromassage, while the built-in heater maintains the water at your desired temperature to create a soothing, spa-like environment. Realize your vision. It’s all at the touch of your finger…
Features

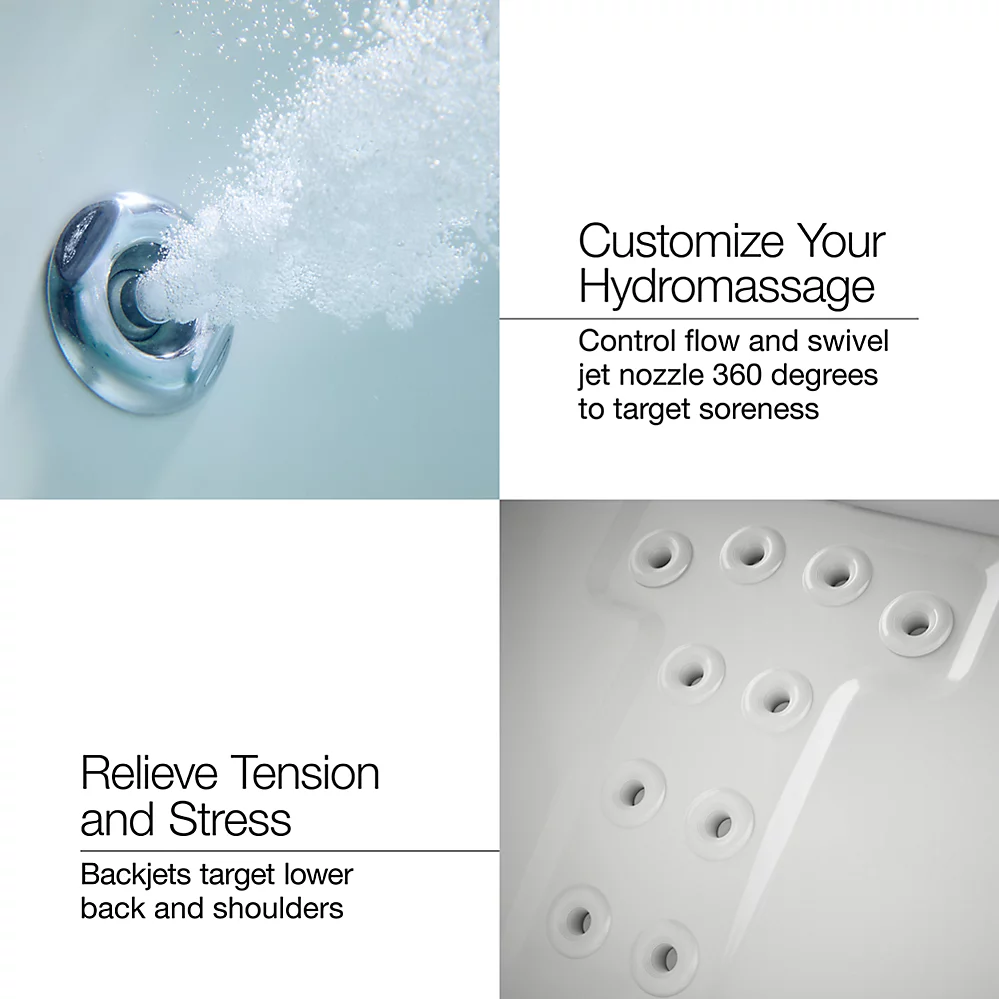

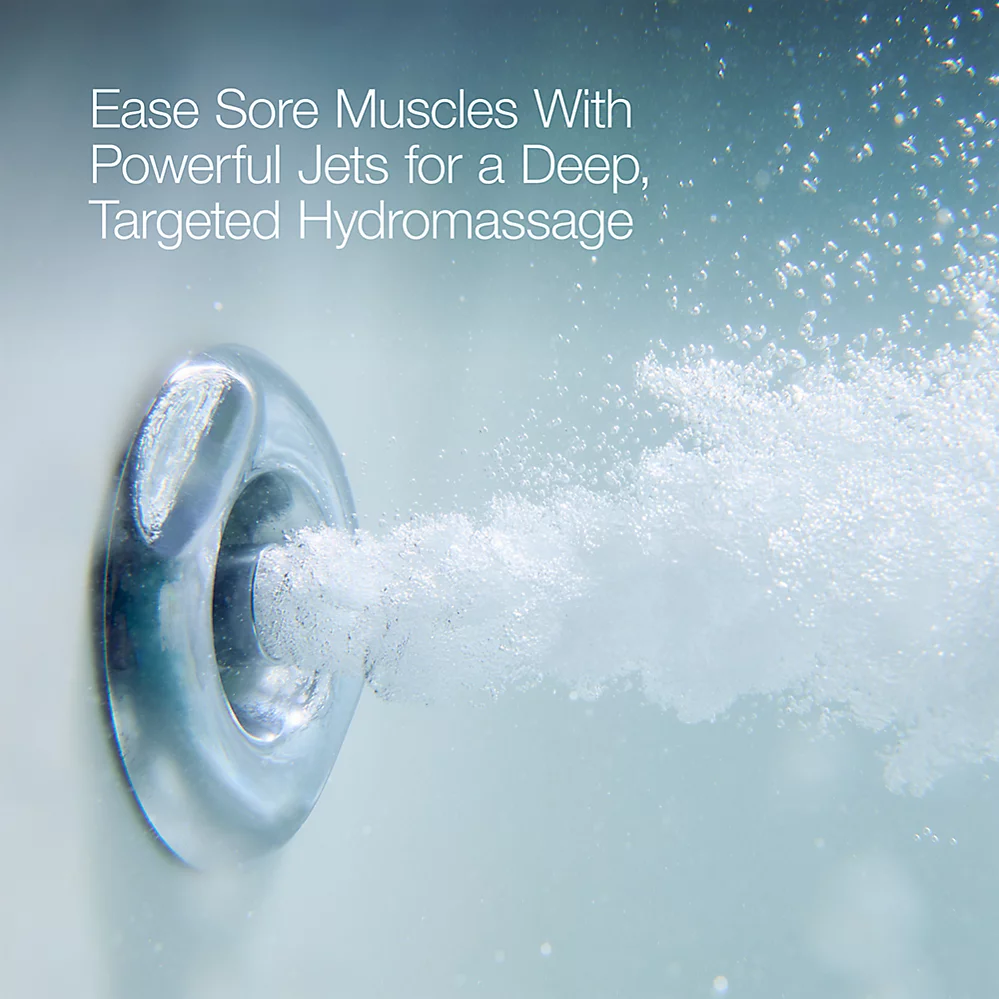

Eight Proflex® hydromassage jets can be individually adjusted for water flow and direction
Single-speed whirlpool offers performance and value with 8 fully adjustable jets

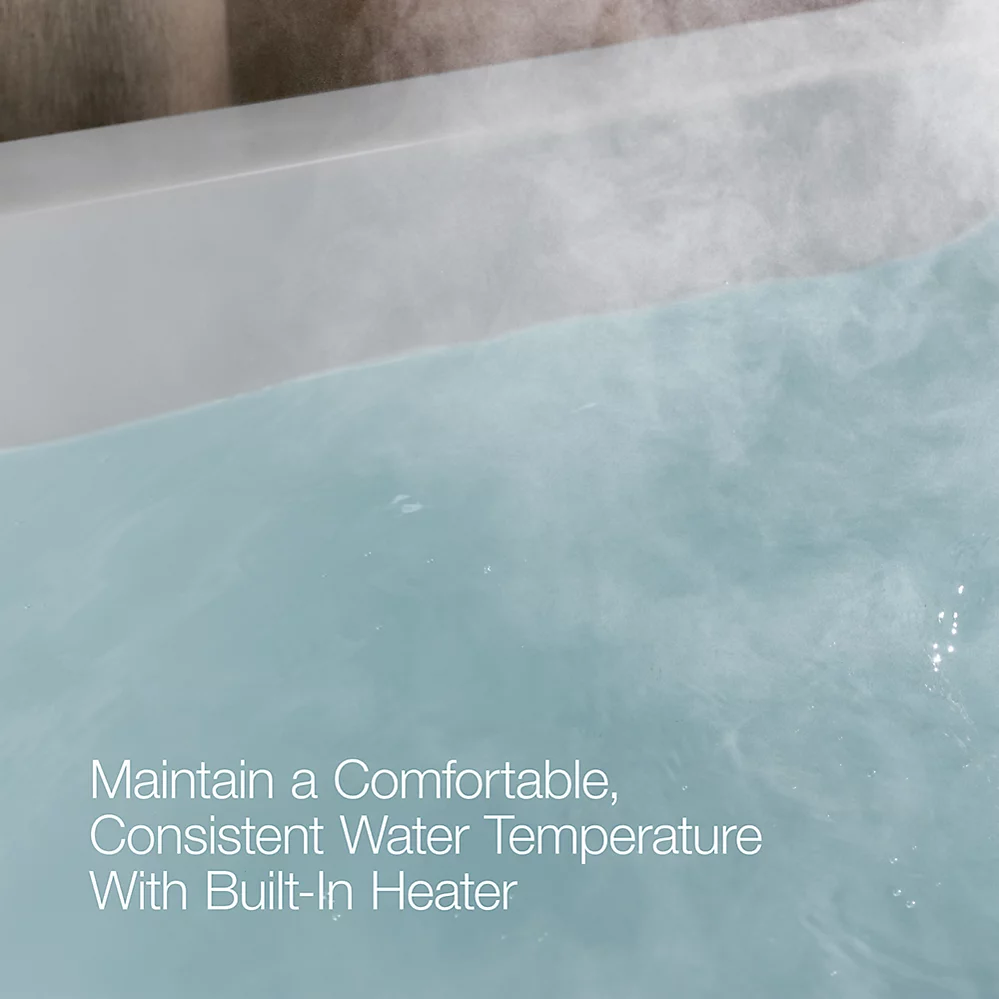

Built-in heater
Slotted overflow allows for deep soaking
Oval basin creates a spacious bathing experience
Wide ledge on one side is ideal for deck-mount faucet and/or handshower
Integral lumbar support
Textured bottom surface
Material
Acrylic
Installation
Drop-in or undermount
Center drain
120 V electrical requirement allows for easy installation with standard outlet
Requires two dedicated circuits
Required Products/Accessories
K-7271 Brass Slotted Overflow Bath Drain
K-7272 PVC Slotted Overflow Bath Drain
Recommended Products/Accessories
K-814 Under-Mount Installation Kit
K-1491 Bath/Whirlpool Pillow
K-1601 Bath/whirlpool footstop, removable
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
0 White
96 Biscuit
NY Dune
95 Ice™ Grey
58 Thunder™ Grey
7 Black Black
Required Electrical Service
Two dedicated circuits required, protected with Class A GroundFault Circuit-Interrupter (GFCI). Outside North America, this device may be known as a Residual Current Device (RCD).
Pump: 120 V, 15 A, 60 Hz
Heater: 120 V, 15 A, 60 Hz

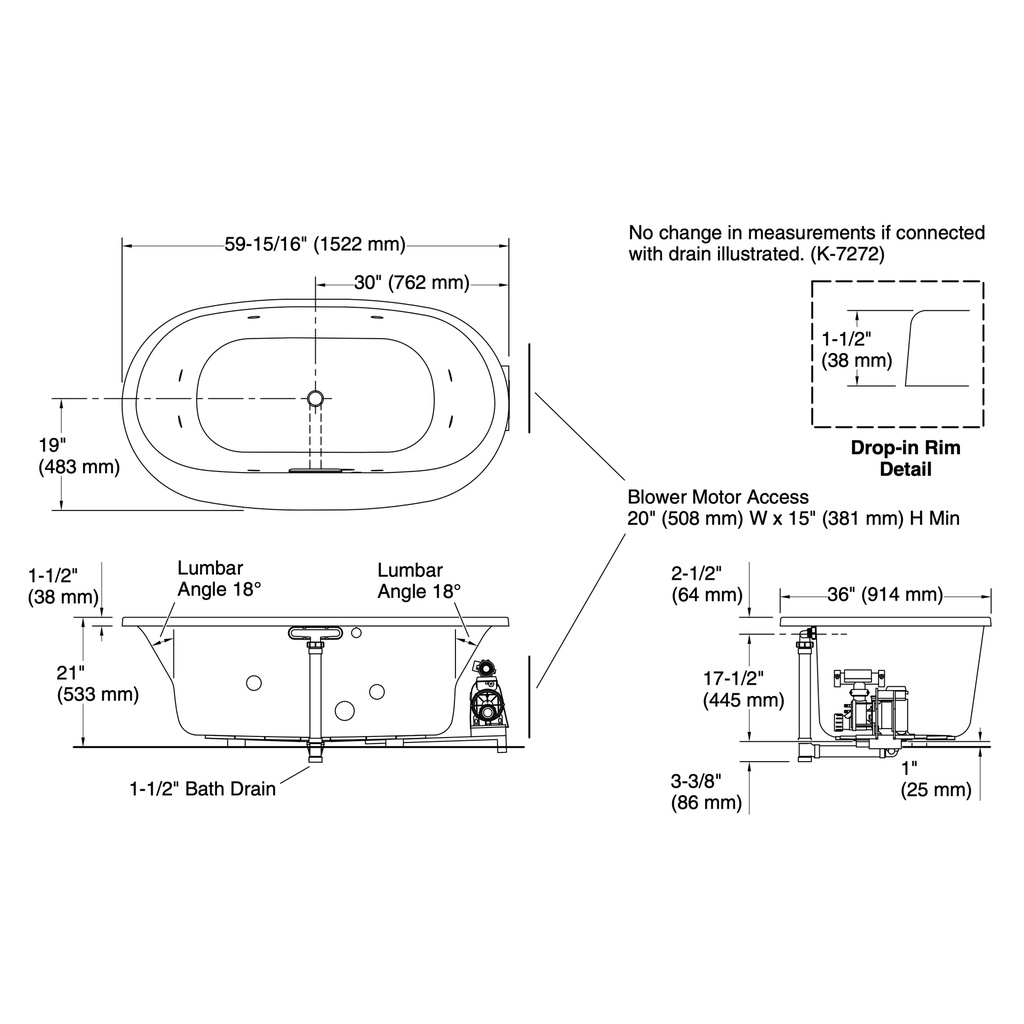

Technical Information
All product dimensions are nominal.
Drain location: Center
Basin area, bottom: 43-1/8" x 25-11/16" (1096 mm x 653 mm)
Basin area, top: 55-3/16" x 28-5/16" (1402 mm x 719 mm)
Weight: 68 lbs (30.8 kg)
Minimum floor load: 52.3 lbs/ft² (255.4 kg/m²)
Water depth: 16-5/16" (415 mm)
Water capacity: 72.03 gal (272.7 L)
Electrical component rating:
Pump: 120 V, 7 A, 60 Hz
Heater: 120 V, 12 A, 60 Hz
