Kohler 5713-W1-0 Underscore 59-3/4" x 35-3/4" Heated Drop-in Bath White
Underscore®
59-3/4" x 35-3/4" drop-in bath with Bask® heated surface
K-5713-W1-0
Color/Finish: White
Streamlined for simplicity, the KOHLER® Underscore oval bath exudes refined style with contemporary flair. The Bask heated surface warms your back, shoulders, and neck with adjustable temperature settings to create a soothing, spa-like environment. A slotted overflow drain allows for a luxuriously 59-3/4" x 35-3/4" oval drop-in deep bath as you relax against the comfortable sloped backrest.
Features
Bask® heated surface creates spa-like relaxation with soothing warmth on your back, shoulders, and neck
Three heat settings allow you to customize the surface temperature
Integral lumbar support
Oval basin creates a spacious bathing experience

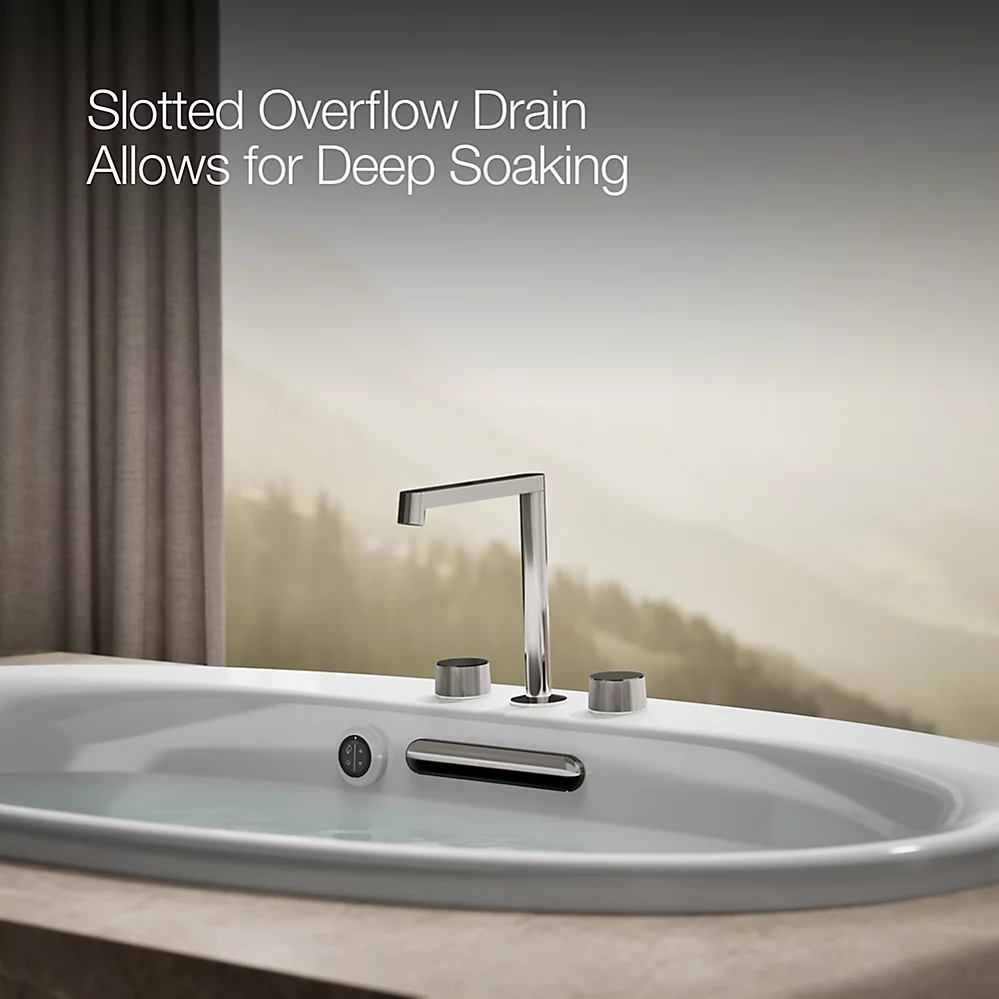

Slotted overflow allows for deep soaking
Material
Acrylic
Installation
Requires Clearflo slotted overflow bath drain (sold separately)
Center drain
Drop-in or undermount
Required Products/Accessories
K-7271 Brass Slotted Overflow Bath Drain
K-7272 PVC Slotted Overflow Bath Drain
Recommended Products/Accessories
K-814 Under-Mount Installation Kit
K-23726 Drain treatment
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
0 White
96 Biscuit
95 Ice™ Grey
7 Black Black
Required Electrical Service
One circuit required, protected with Class A Ground-Fault
Circuit-Interrupter (GFCI). Outside North America, this device may be known as a Residual Current Device (RCD).
Heated Surface: 120 V, 15 A, 60 Hz

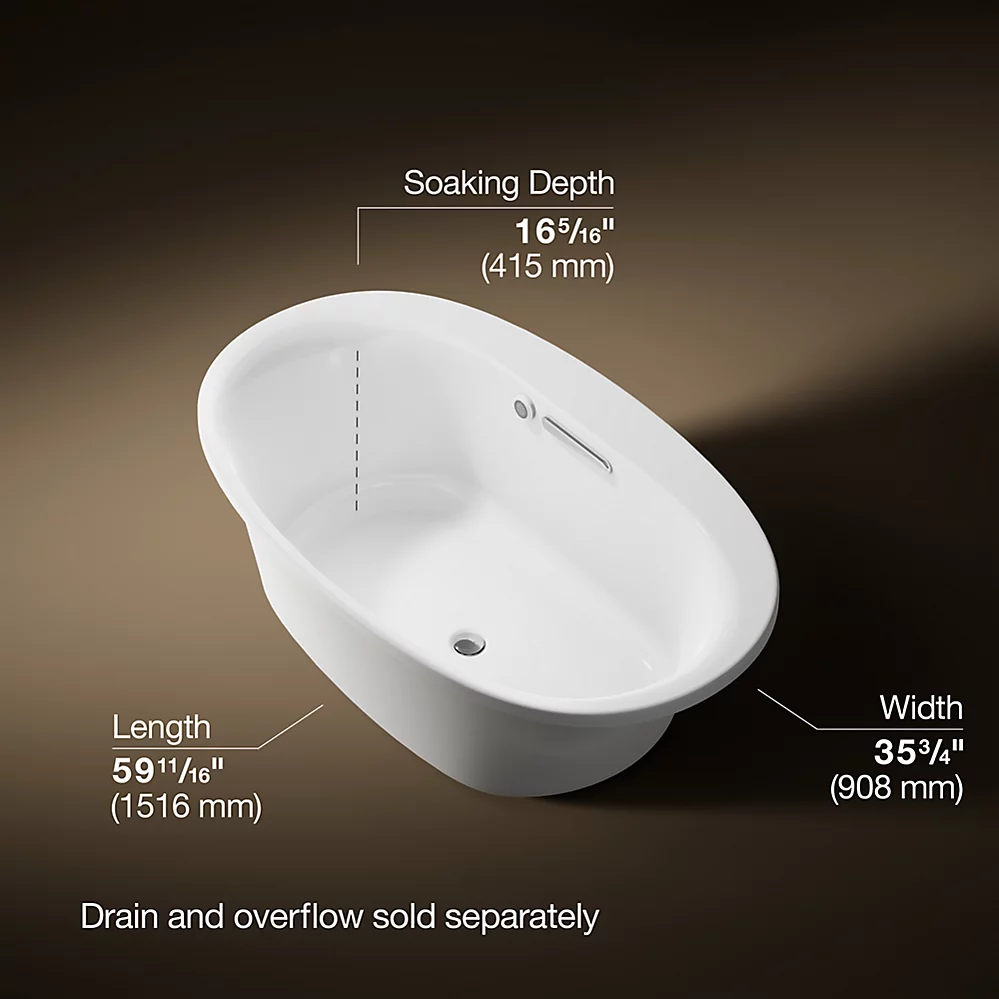

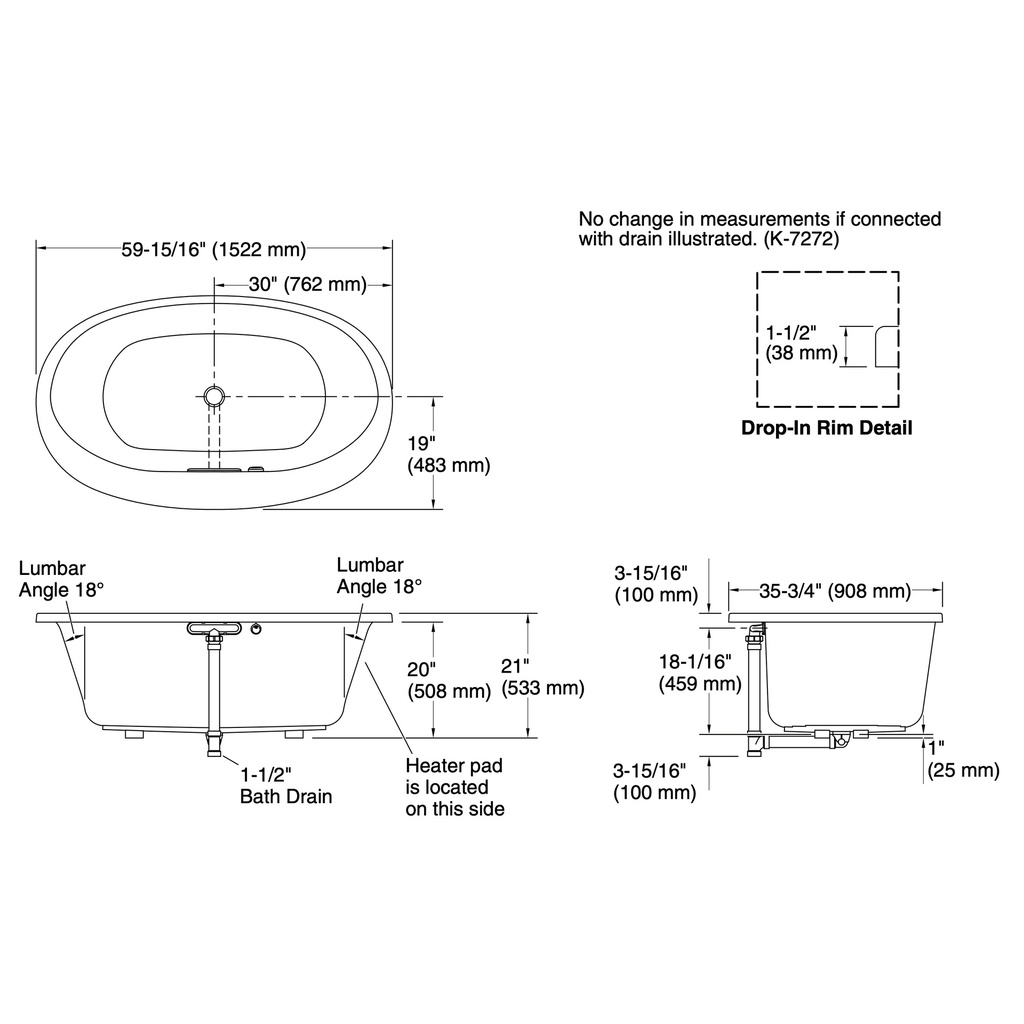

Technical Information
All product dimensions are nominal.
Drain location: Center
Basin area, bottom: 43" x 25-5/8" (1093 mm x 651 mm)
Basin area, top: 55-9/16" x 28-3/8" (1411 mm x 720 mm)
Weight: 91 lbs (41.3 kg)
Minimum floor load: 49.3 lbs/ft² (240.7 kg/m²)
Water depth: 16-5/16" (415 mm)
Water capacity: 72.017 gal (272.6 L)
Template: Drop-in, 1268438-7, required, included
Electrical component rating:
Heated Surface: 120 V, 1.1 A, 60 Hz, 65W
