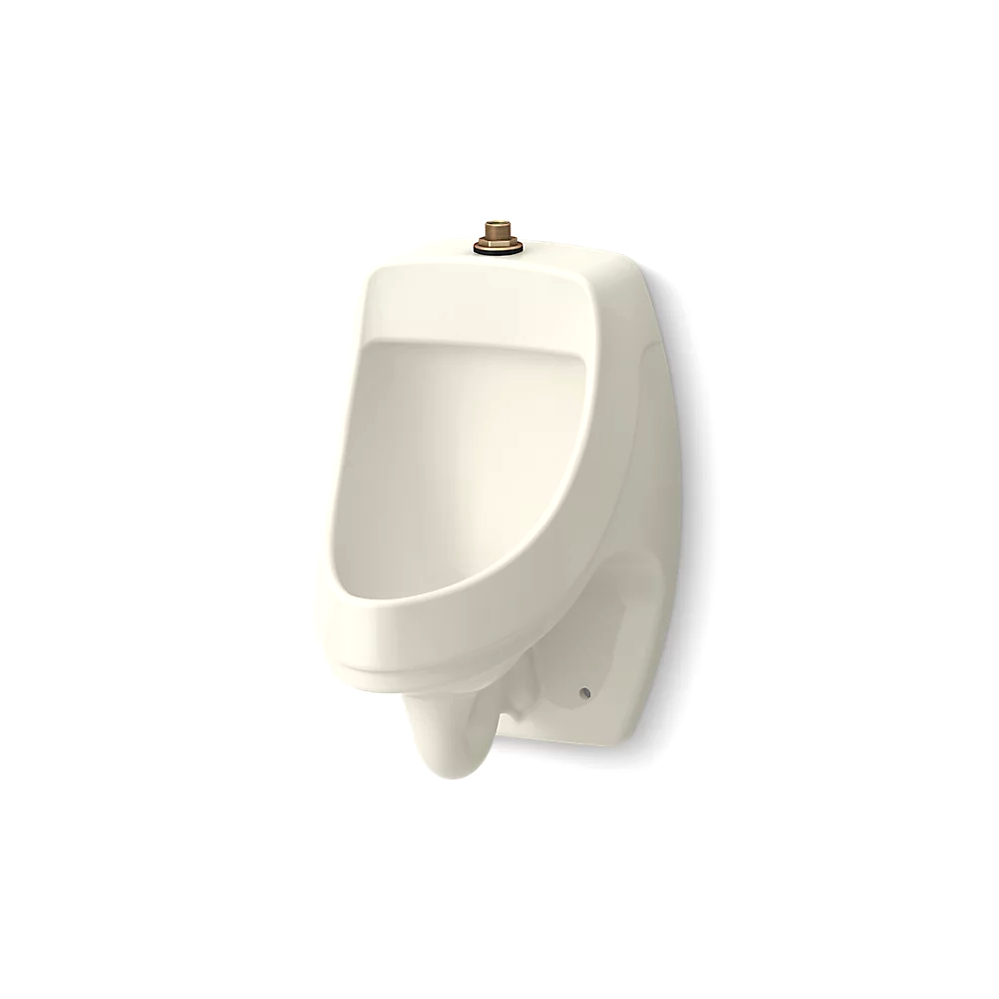

Kohler 5452-ET-96 Dexter Washdown Wall Mount Top Spud Urinal Biscuit
Dexter™
Washout half-stall 0.125 gpf urinal, top spud
K-5452-ET-96
Color/Finish: Biscuit
The straightforward design of the Dexter urinal brings KOHLER styling and functionality to any application. Equipped with a washout flush system, the Dexter 1-pint (0.125 gallon) urinal combines water savings with a compact wall-print perfect for smaller commercial bathrooms. This Dexter urinal is ideal for customers who want to conserve water but do not want a waterless urinal.
Features
Washout urinal
3/4" (19 mm) top spud
1 pint or 0.125 gpf (0.47 lpf)
Includes inlet and outlet spuds and hangers
Includes anti-backsplash wall
14-3/4" (375 mm) extended lip
Material
Vitreous china
Recommended Products/Accessories
K-23725 Cast iron cleaner
K-76317 Urinal flushometer, 0.125 gpf
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
0 White
96 Biscuit
7 Black Black
Technical Information
All product dimensions are nominal.
Spud size: 3/4"", Inlet, Top
Min. Water per Flush: 0.125 gpf (0.5 lpf)
Max. Water per Flush: 0.125 gpf (0.5 lpf)
Designed for the above water use when installed with a water-saving flushometer.
Pressure and Supply Requirements
Fixture pressure min (static): 25 psi (172.4 kPa)
Fixture pressure max (static): 80 psi (551.6 kPa)
