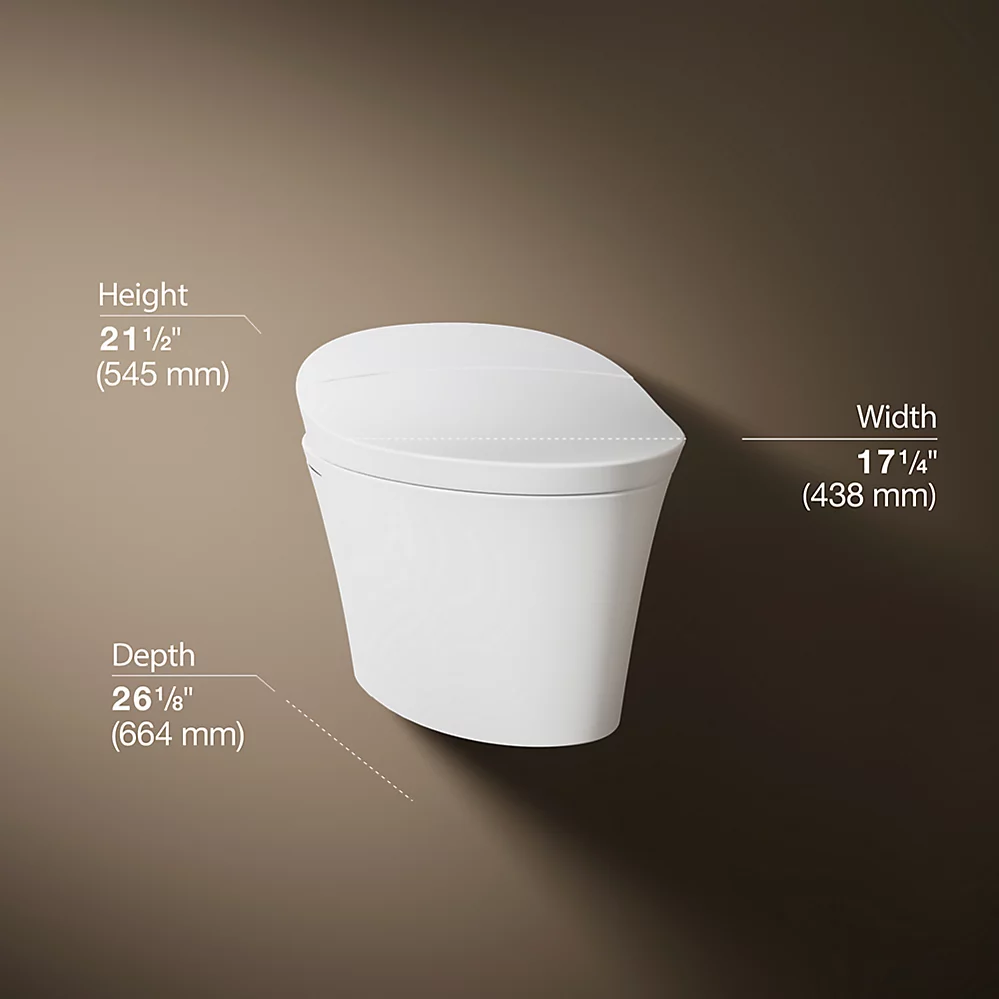

Kohler 5402-0 Veil One Piece Elongated Smart Toilet White
Veil®
One-piece elongated smart toilet, dual-flush
K-5402-0
Color/Finish: White
The KOHLER® Veil wall-hung smart toilet offers integrated personal cleansing while saving up to 8" of precious bathroom space over KOHLER®'s longest floor-mount models. The mounting hardware is completely concealed, giving Veil a sleek, seamless look that is incredibly easy to clean. This one-piece elongated toilet's sculpted core delivers a suite of precision features finely tuned to provide optimum hygiene and ultimate individual comfort, from personal cleansing to an LED nightlight to hands-free opening, closing and flushing. All of the features are easy to control on a touchscreen LCD remote control. In addition to the remote, you can control the Full and Eco flush using the touchless, Honed White actuator plate included with the toilet.
Features
One-piece wall-hung toilet with integrated cleansing functionality
Elongated bowl offers added room and comfort
Mounting hardware is completely concealed for sleek looks and easy cleaning
Dual flush offers a choice of 0.8 or 1.6 gpf (3.0 or 6.0 lpf)
Stainless steel wand offers adjustable spray shape, position, water pressure, temperature, pulsate, and oscillate functions
Front and rear wash modes provide warm water for cleansing
Self-cleaning function uses UV light and electrolyzed water systems to automatically clean the wand surfaces
Warm-air drying system with adjustable temperature settings
Automatic deodorization system
Heated seat with adjustable temperature settings

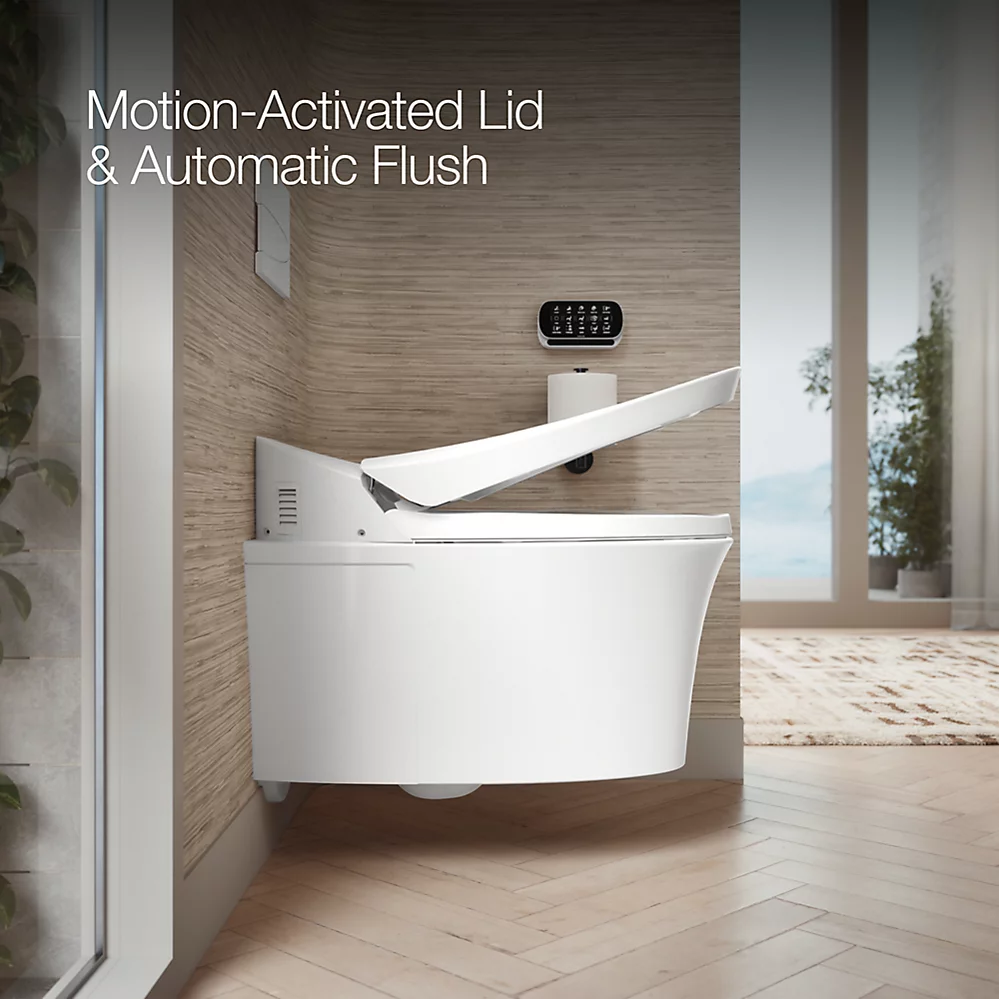

Motion-activated, hands-free opening/closing of cover
Automatically flushes toilet after use
LED lighting illuminates the bowl to serve as a nightlight
English-language touch-screen LCD remote control
Touchless actuator plate in Honed White
Dual-flush technology allows you to choose between a full or partial flush
Includes complete toilet and seat, in-wall tank and carrier, actuator plate, and LCD remote control
Installation
See installation guide and installation video for more detailed information
This product is not designed or intended for bariatric use
Recommended Products/Accessories
K-23726 Drain treatment
Included Components
K-18647 In-wall tank and carrier for K-76395 Veil® wall-hung smart toilet
K-76395 Wall-hung compact elongated smart toilet bowl, dual-flush
Required Electrical Service
One dedicated circuit required.
120 V, 15 A, 60 Hz

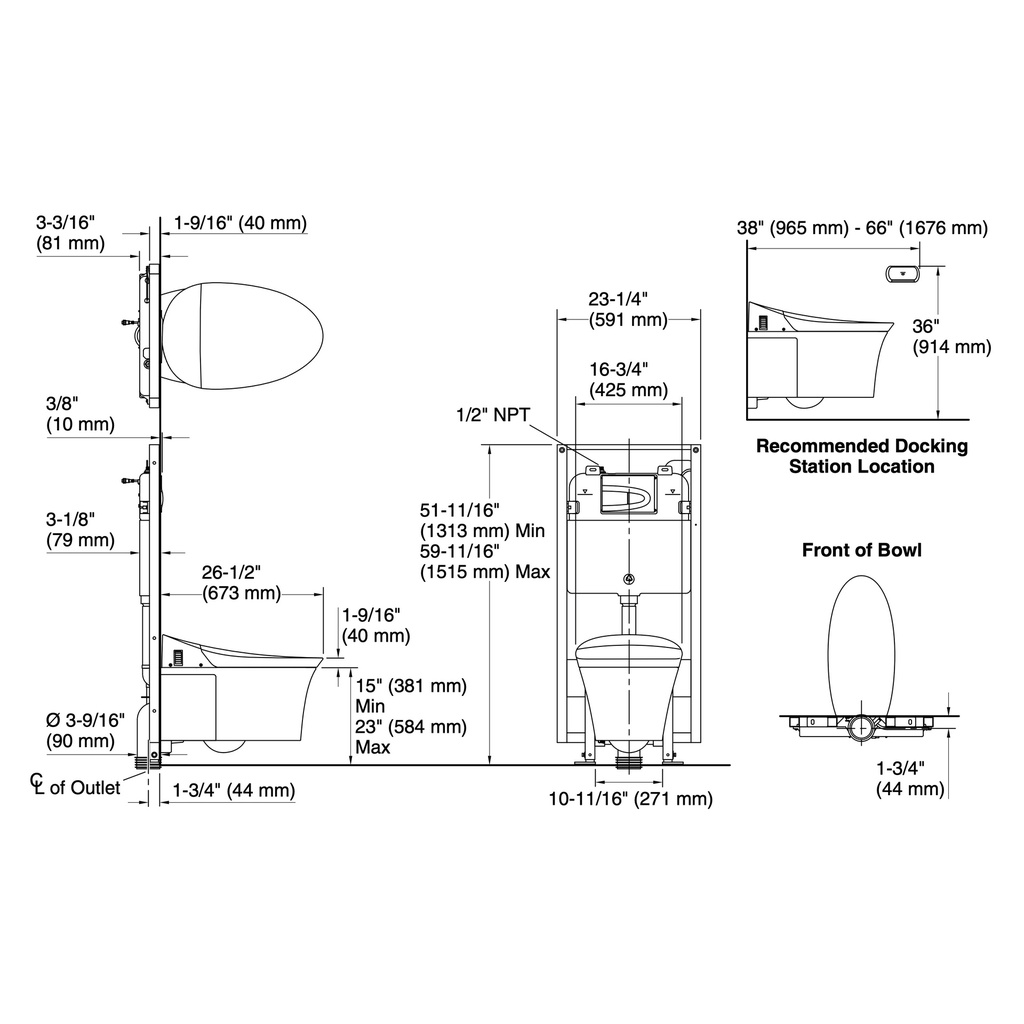

Technical Information
All product dimensions are nominal.
Toilet type: Wall-mount
Waste Outlet: Wall
Bowl shape: Elongated
Flush type: Class Five
Trap passageway: 2-9/16" (65 mm)
Rough-in: 12" (305 mm)
Seat-mounting holes: 5-1/2" (140 mm)
