Kohler 5401-PA-0 Veil One Piece Compact Elongated Smart Toilet White
Veil®
One-piece compact elongated smart toilet, dual-flush
K-5401-PA-0
Color/Finish: White
Sculpted with flowing and balanced curves, the KOHLER® Veil® one-piece elongated smart toilet pairs bold minimalist style with the comfort of personal cleansing. Pump-assisted flushing delivers peak flush performance every time. A full suite of convenient features includes heated seat, nightlight, hands-free opening/closing and automatic flush, plus a touchscreen remote. With emergency backup flushing at the touch of a button, you're always covered in the event of a power outage.
Features
Compact, streamlined one-piece smart toilet with integrated personal cleansing
Elongated bowl offers added room and comfort
Comfort Height® feature offers chair-height seating that makes sitting down and standing up easier for most adults
Tankless design with direct water supply
Stainless steel wand offers adjustable spray shape, position, water pressure, temperature, pulsate, and oscillate functions
Front and rear wash modes provide warm water for cleansing
Self-cleaning function uses UV light and electrolyzed water systems to automatically clean the wand surfaces
Warm-air drying system with adjustable temperature settings
Automatic deodorization system
Heated seat with adjustable temperature settings

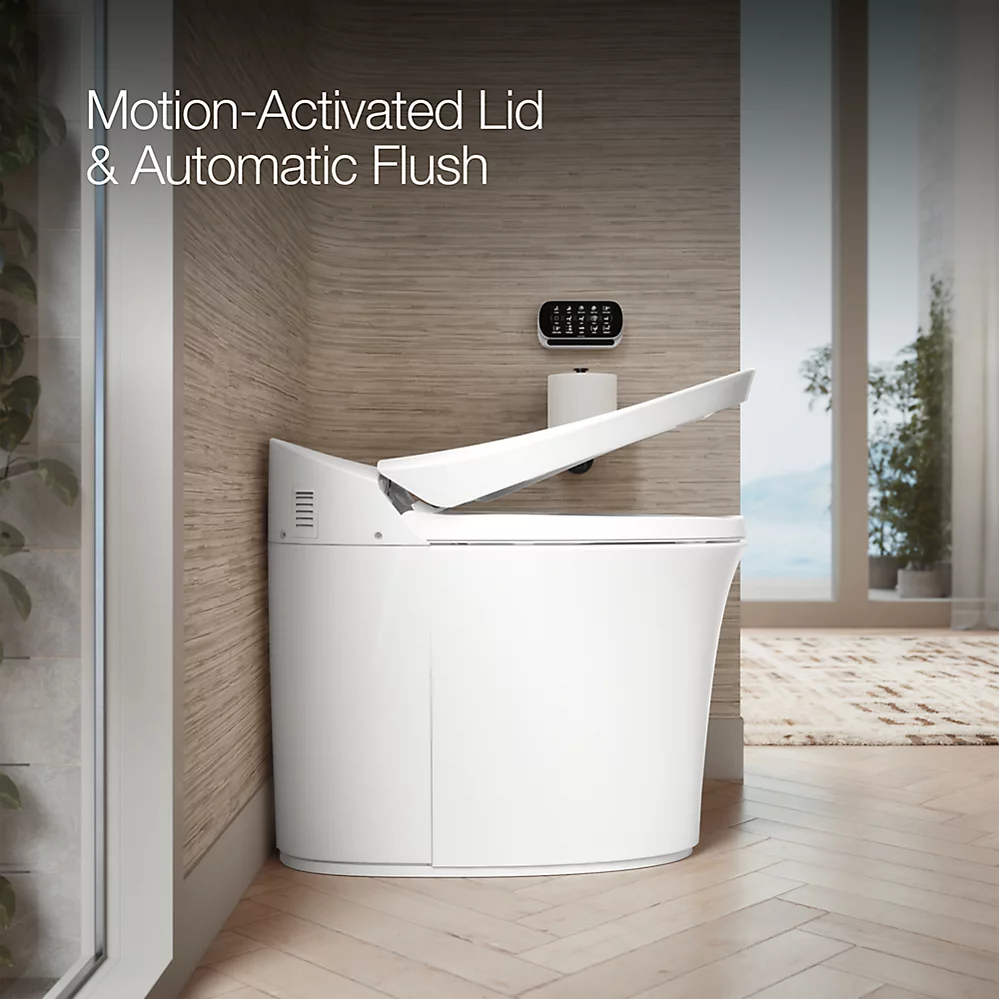

Motion-activated, hands-free opening/closing of cover
Quiet-Close™ elongated lid and seat prevents slamming
LED lighting illuminates the bowl to serve as a nightlight
English-language touch-screen LCD remote control
Emergency flush supports up to 100 flushes during power outage with simple touch-button activation
Dual-flush technology allows you to choose between a full or partial flush
Pump-assisted flushing for strong flush performance
Includes complete toilet and seat, supply stop valve, braided inlet supply hose, power cord, and remote control
Dual flush offers a choice of 0.8 or 1.28 gpf (3.0 or 4.5 lpf)
Installation
Standard 12" (305 mm) rough-in
Required Electrical Service
One dedicated circuit required, protected with Class A GroundFault Circuit-Interrupter (GFCI). Outside North America, this device may be known as a Residual Current Device (RCD).
120 V, 15 A, 60 Hz

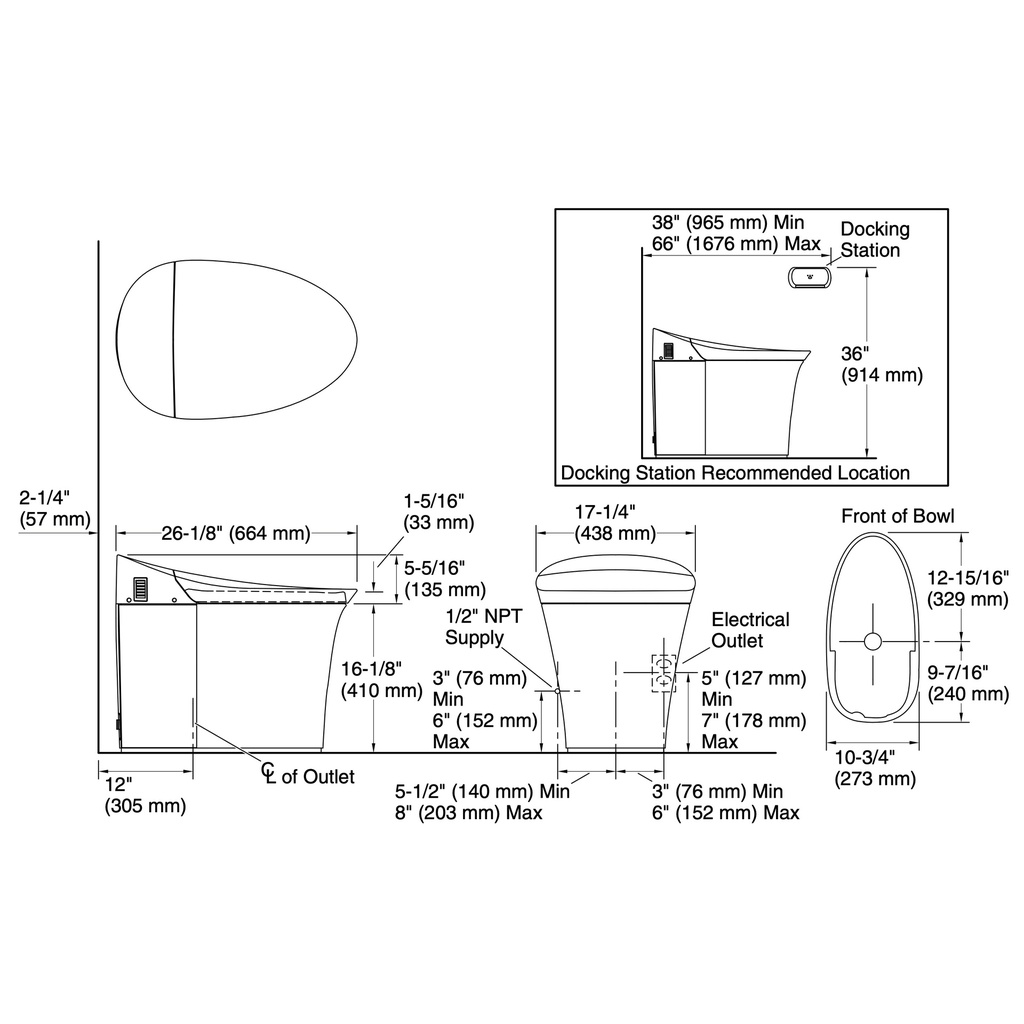

Technical Information
All product dimensions are nominal.
Toilet type: Floor-mount
Waste Outlet: Floor
Bowl shape: Elongated
Flush type: Class Five, Power
Trap passageway: 1-15/16" (49 mm)
Water surface size: 7-15/16" x 5-5/8" (202 mm x 143 mm)
Rough-in: 12" (305 mm)
Fixture Supply Requirements
Min flow rate: 6 gpm (22.7 lpm)
