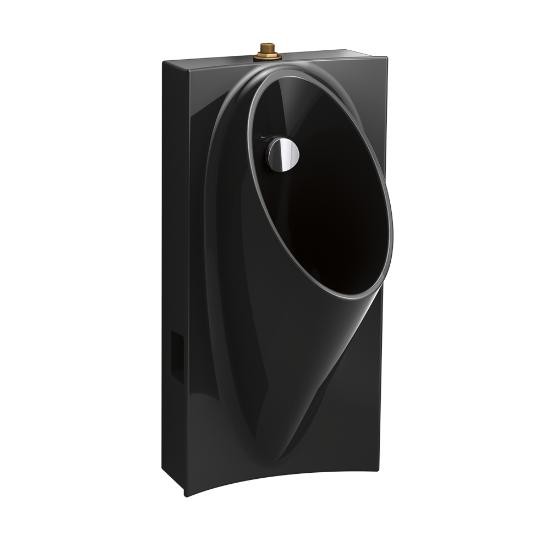

Kohler 5244-ET-7 Steward Hybrid Washout Urinal Top Supply Black
Steward®
Washout half-stall 0.125 gpf urinal, top spud
K-5244-ET-7
Color/Finish: Black
Modeled after the popular Steward waterless urinals, this Steward Hybrid urinal combines a sleek design aesthetic with a rinsing flush that prevents drainline issues and reduces maintenance. At 0.125 gpf, this high-efficiency urinal offers 80% water savings compared to standard 1.0-gpf urinals. The large footprint covers the old urinal wall print, making this model ideal for water conservation replacement projects.
Features
Revolutionary funnel design virtually eliminates splashback
KOHLER-engineered water flushing spreader successfully rinses the inverted back wall, sides, and front of the urinal basin for a more sanitary customer experience
Ultra-low consumption. Operates at 0.125 gpf (0.47 lpf)
3/4" (19 mm) top spud
Includes removable strainer, 2" outlet spud, universal mounting bracket, and hangers
Offers 80% water savings compared to standard 1.0-gpf urinals
This product can help a building earn Water Efficiency points in LEED® Green Building Rating System
Washout urinal
0.125 gpf (0.47 lpf)
15-5/8" (397 mm) extended rim
Material
Vitreous china

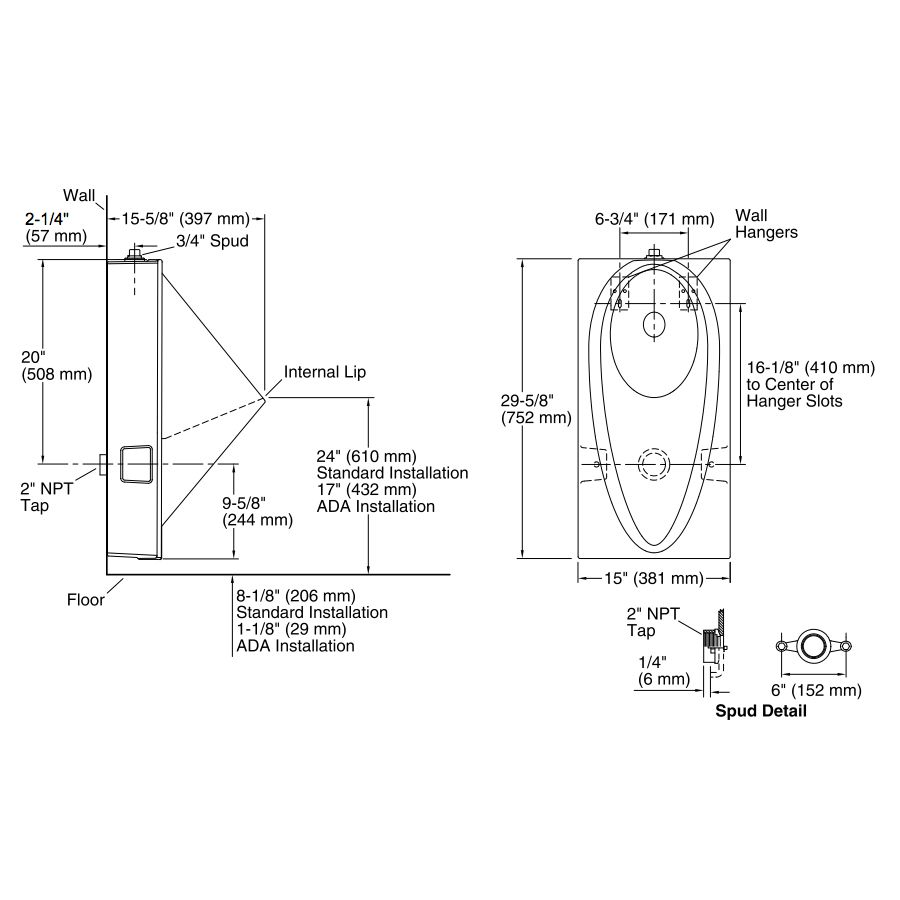

Installation
29-5/8" H x 15" W x 15-5/8" D
Large footprint covers old urinal wall print
Recommended Products/Accessories
K-23726 Drain treatment
K-4929 Waterless Urinal Maintenance Balls
K-76317 Urinal flushometer, 0.125 gpf
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
0 White
7 Black Black
Technical Information
All product dimensions are nominal.
Spud size: 3/4"", Inlet, Top
Min. Water per Flush: 0.125 gpf (0.5 lpf)
Max. Water per Flush: 0.125 gpf (0.5 lpf)
Designed for the above water use when installed with a water-saving flushometer.
