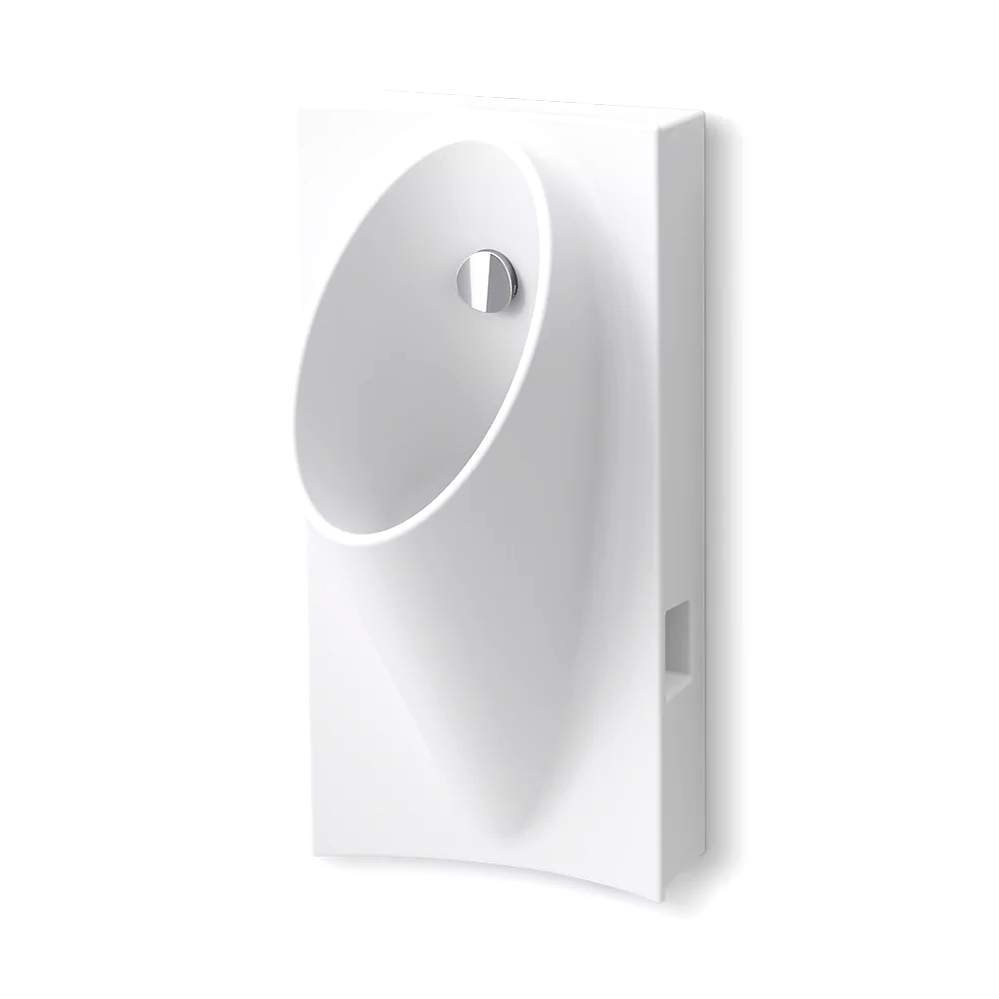

Kohler 5244-ER-0 Steward Hybrid Rear Spud Urinal White
Steward®
Washout half-stall 0.125 gpf urinal, rear spud
K-5244-ER-0
Color/Finish: White
Modeled after the popular Steward waterless urinals, this Steward Hybrid urinal combines a sleek design aesthetic with a rinsing flush that prevents drainline issues and reduces maintenance. At 0.125 gpf, this high-efficiency urinal offers 80% water savings compared to standard 1.0-gpf urinals. The large footprint covers the old urinal wall print, making this model ideal for water conservation replacement projects.
Features
Revolutionary funnel design virtually eliminates splashback
KOHLER-engineered water flushing spreader successfully rinses the inverted back wall, sides, and front of the urinal basin for a more sanitary customer experience
Ultra-low consumption. Operates at 0.125 gpf (0.47 lpf)
1/2" (12.7 mm) flexible rear supply hose
Includes removable strainer, 2" outlet spud, universal mounting bracket, and hangers
Offers 80% water savings compared to standard 1.0-gpf urinals
This product can help a building earn Water Efficiency points in LEED® Green Building Rating System
Material
Vitreous china
Installation
Large footprint covers old urinal wall print
Recommended Products/Accessories
K-4929 Waterless Urinal Maintenance Balls

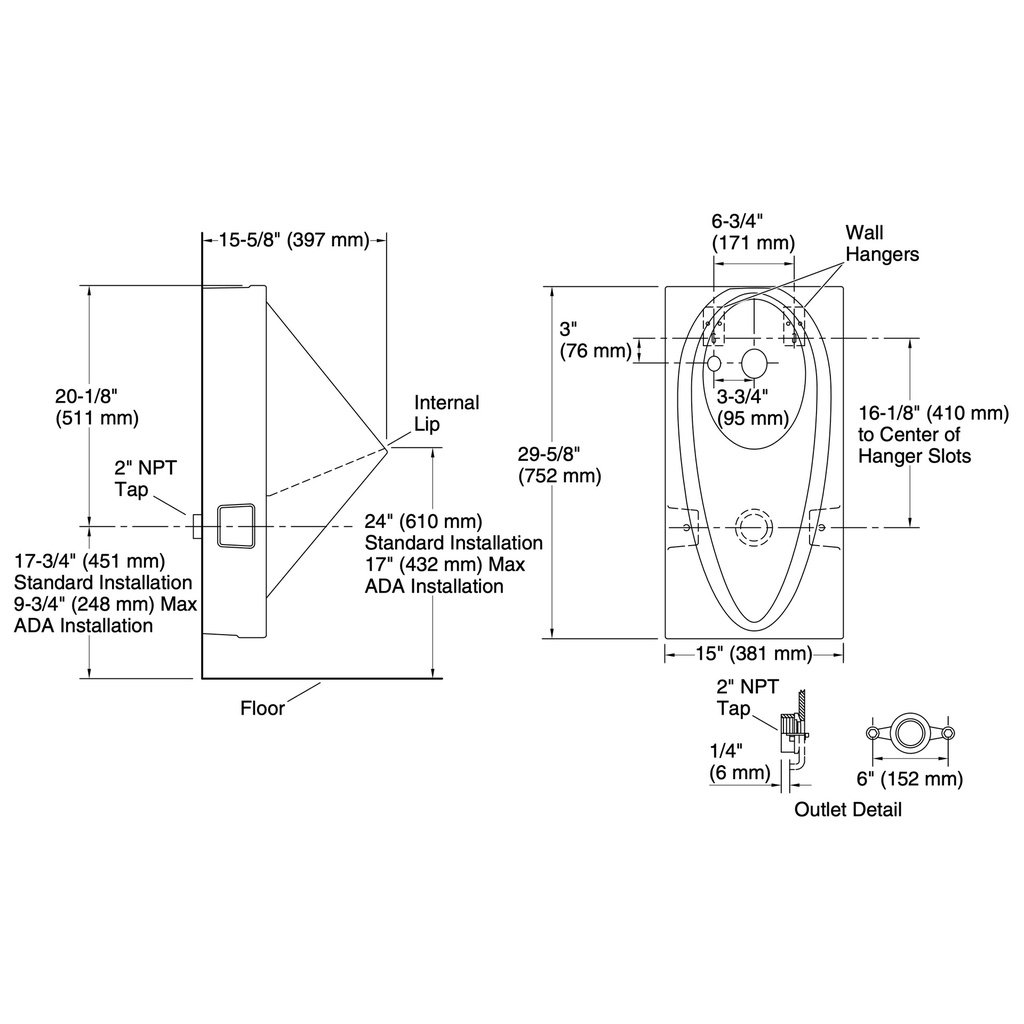

Technical Information
All product dimensions are nominal.
Spud size: 3/4"", Inlet, Rear
Spud size: 2"", Outlet, Rear
Min. Water per Flush: 0.125 gpf (0.5 lpf)
Max. Water per Flush: 0.125 gpf (0.5 lpf)
Designed for the above water use when installed with a water-saving flushometer.
