Kohler 506-0 Mendota 60" x 32" Alcove Bath Right Drain White
Mendota®
60" x 32" alcove bath, right drain
K-506-0
Color/Finish: White
This KOHLER® Mendota 60" x 32" rectangular alcove bath offers the convenience of alcove installation with an integral apron and the durable beauty of KOHLER® Cast Iron. Available in a palette of KOHLER® colors, this straightforward design is a complement to any décor. Safeguard® slip-resistant surface enhances safety.
Features

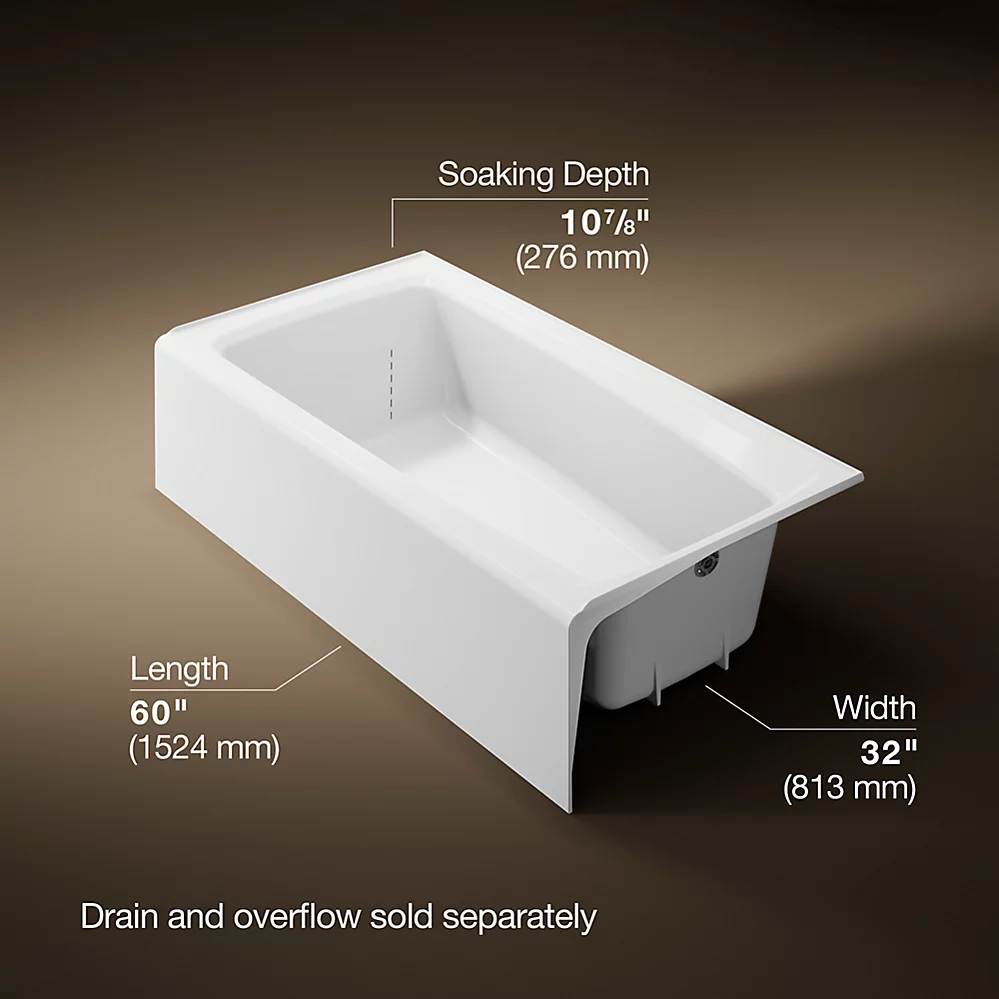

59-1/2"L x 32"W x 16-1/4"H
Standard 5' x 32" size for alcove installation
Integral apron for quick installation
Integral lumbar support
Safeguard® slip-resistant surface provides excellent traction underfoot
Material
KOHLER® enameled cast iron
Installation
Alcove
Integral flange
Right drain
Required Products/Accessories
K-T37391 Rotary-turn bath drain trim
K-T37392 Rotary-turn bath drain trim
K-37383 Rough-in cable bath drain, PVC, 30" cable with tubing
K-78438 30" cable bath drain
Recommended Products/Accessories
K-1491 Bath/Whirlpool Pillow
K-1601 Bath/whirlpool footstop, removable
K-7213 27" Cable Bath Drain
K-7214 27" Cable Bath Drain

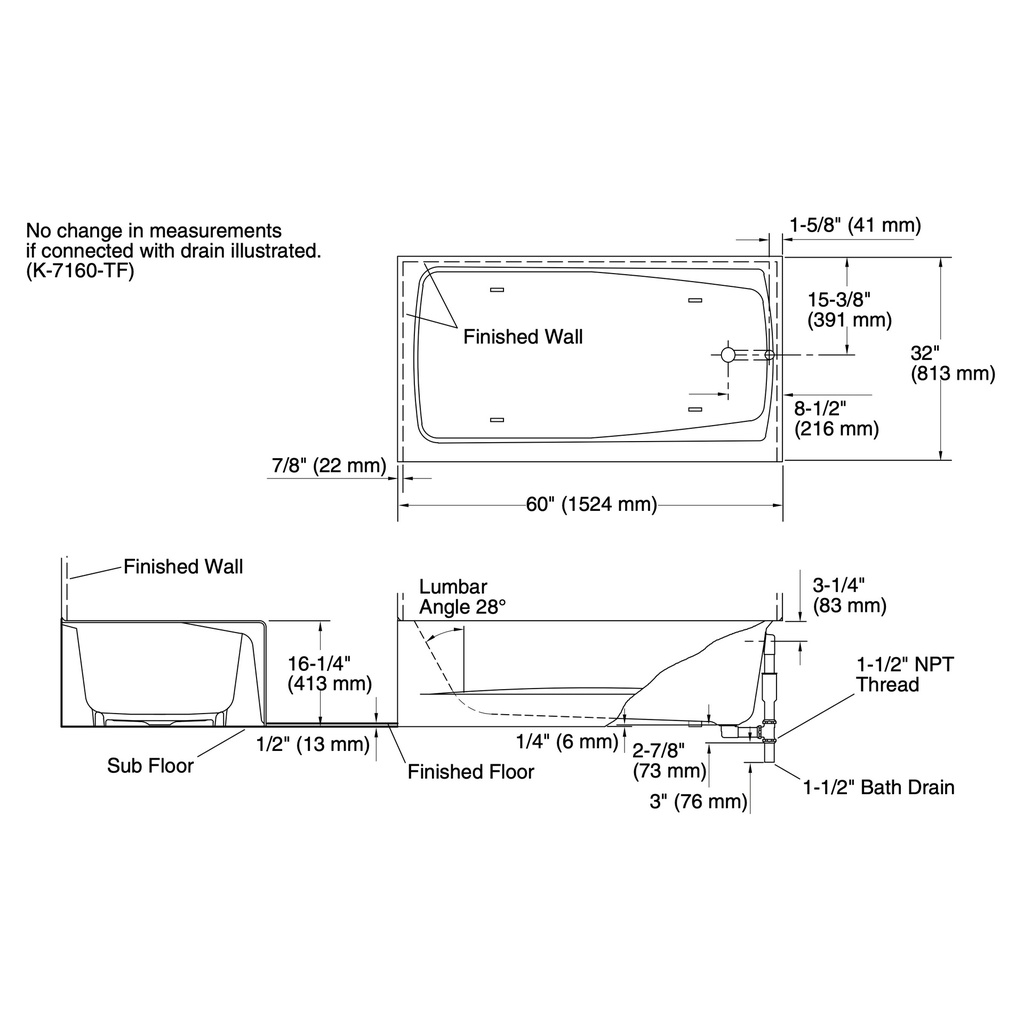

Technical Information
All product dimensions are nominal.
Drain location: Right
Basin area, bottom: 46" x 20" (1168 mm x 508 mm)
Basin area, top: 54" x 24" (1372 mm x 610 mm)
Weight: 351 lbs (159.2 kg)
Minimum floor load: 56 lbs/ft² (273.4 kg/m²)
Water depth: 10-7/8" (276 mm)
Water capacity: 45 gal (170.3 L)
Minimum flat for door: 1-7/8" (47 mm)
