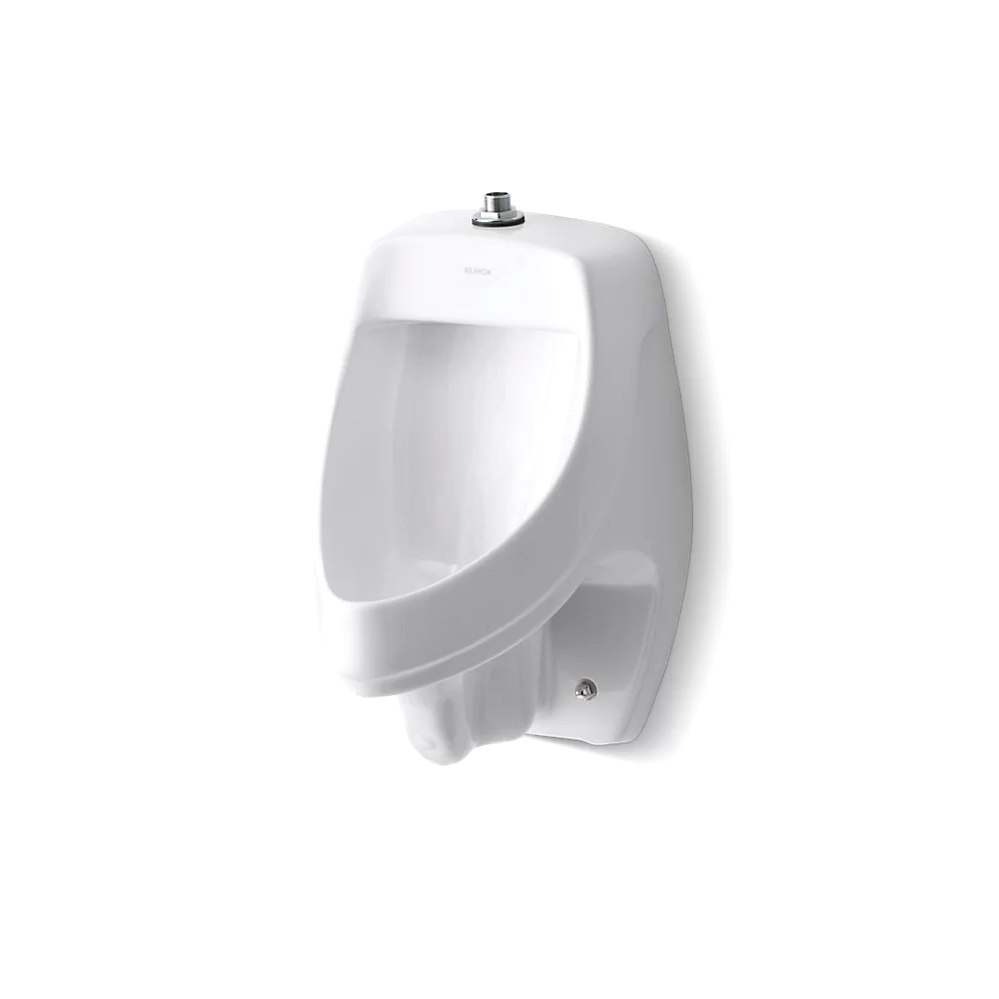

Kohler 5016-ET-0 Dexter Elongated Top Spud Urinal White
Dexter™
Siphon-jet wall-mount 0.5 or 1.0 gpf urinal with top spud
K-5016-ET-0
Color/Finish: White
The straightforward design of the Dexter elongated urinal brings KOHLER styling and functionality to any application. The compact size is ideal for smaller public restrooms, and the back-wall geometry limits splashback for a cleaner user experience. This model features a 3/4" top spud.
Features
Siphon jet
3/4" (19 mm) top spud
0.5 or 1.0 gpf (1.9 or 3.8 lpf) based on valve selected
Includes inlet and outlet spuds and hangers
Includes anti-backsplash wall
14-1/2" (368 mm) extended rim
0.5 or 1.0 gpf (1.9 or 3.8 lpf)
Material
Vitreous china
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
0 White
96 Biscuit
7 Black Black

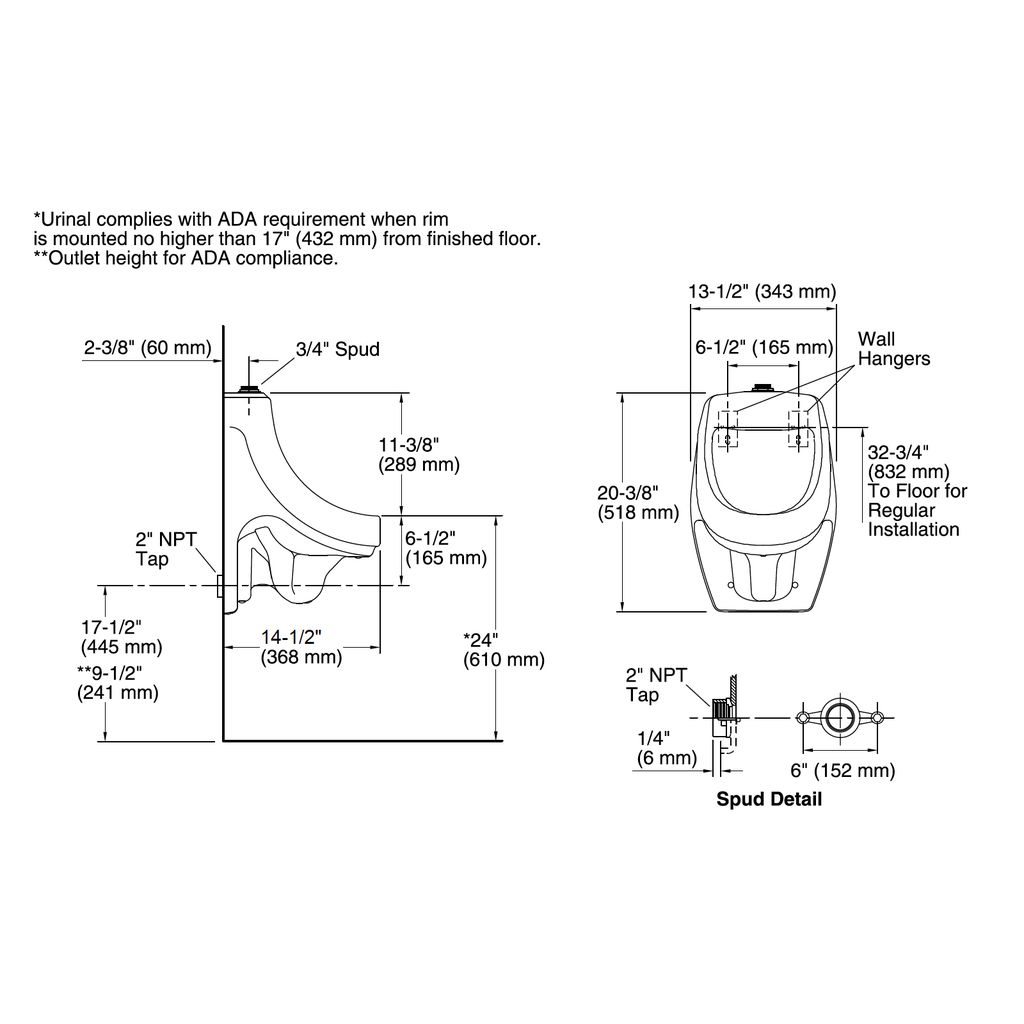

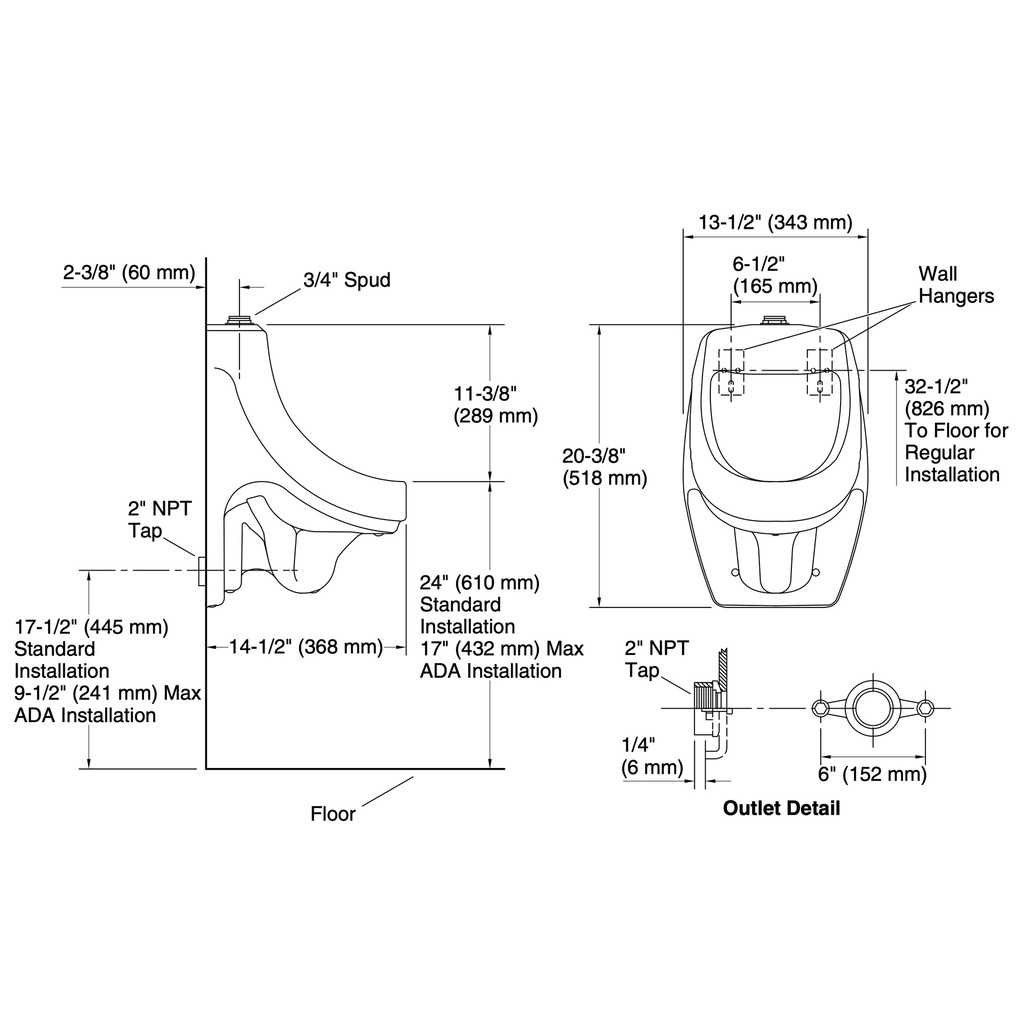

Technical Information
All product dimensions are nominal.
Spud size: 3/4"", Inlet, Top
Min. Water per Flush: 0.5 gpf (1 lpf)
Max. Water per Flush: 1 gpf (3.8 lpf)
Designed for the above water use when installed with a water-saving flushometer.
