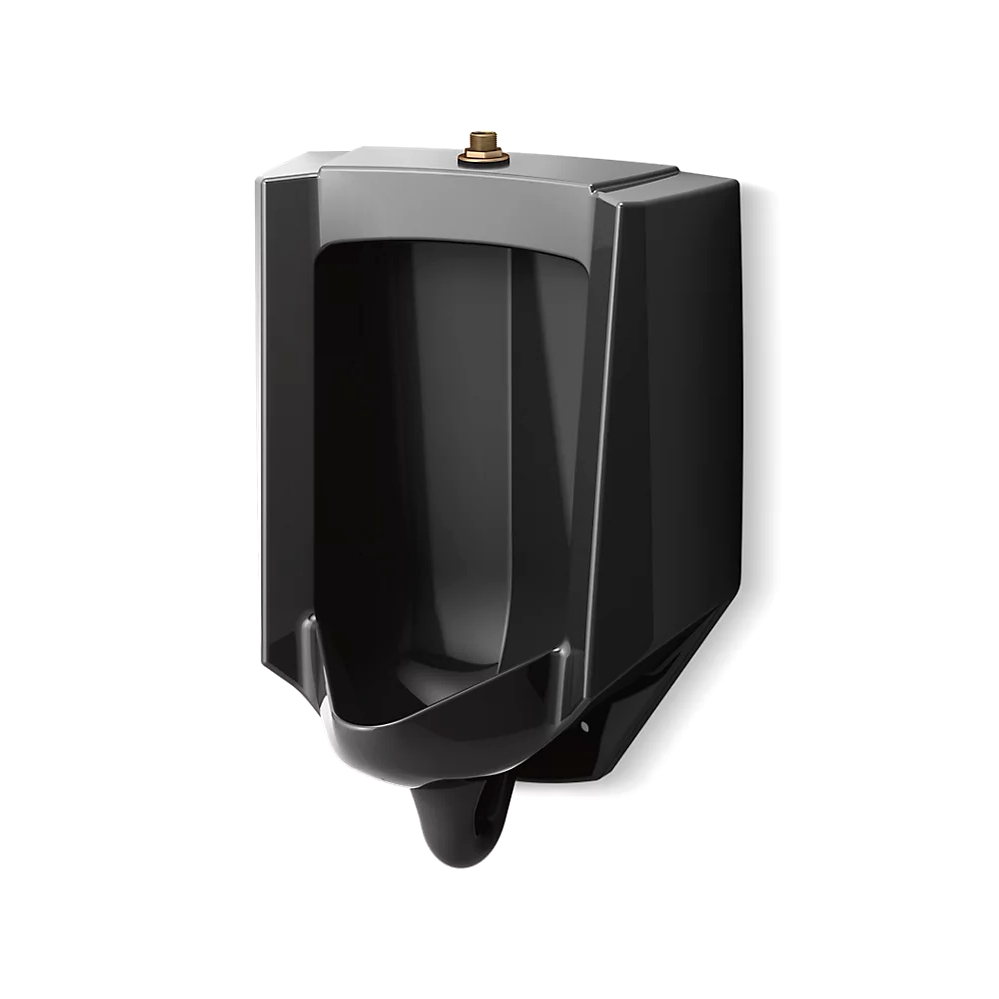

Kohler 4991-ET-7 Bardon Accuflush High Efficiency Urinal Black
Bardon™
High-Efficiency Urinal (HEU), washout, wall-hung, 0.125 gpf to 1.0 gpf, top spud
K-4991-ET-7
Color/Finish: Black
The newly redesigned Bardon urinal provides flexible flushing options along with a bold new contemporary look. Based on your selected flushometer, the Bardon operates in the range from 0.125 (1/8th) gallon to 1.0 gallon per flush. When paired with a 0.125 gpf flushometer this urinal is ideal for water conservation installations, and qualifies as a High-Efficiency Urinal (HEU) that can help a building earn Water Efficiency points in the LEED(R) Green Building Rating System.
Features
Washout urinal
3/4" (19 mm) top spud
0.125 - 1.0 gpf (0.47 - 3.8 lpf)
Will replace K-4904-ET
Material
Vitreous china

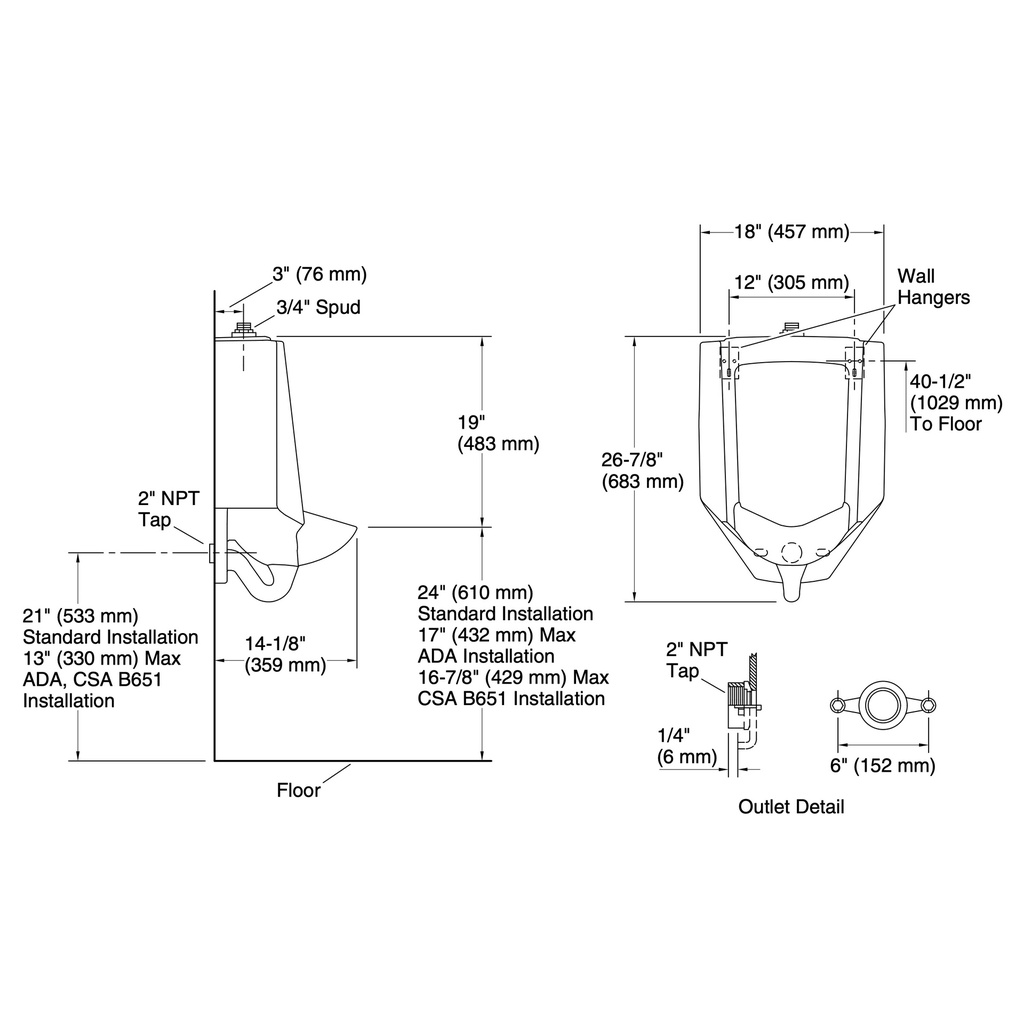

Installation
14" (356 mm) extended rim
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
0 White
96 Biscuit
7 Black Black
Technical Information
All product dimensions are nominal.
Flush Type: Washout
Spud size: Inlet, Top
Min. Water per Flush: 0.125 gpf (0.5 lpf)
Max. Water per Flush: 1 gpf (3.8 lpf)
Designed for the above water use when installed with a water-saving flushometer.
Pressure and Supply Requirements
Fixture pressure min (static): 35 psi (241.3 kPa)
Fixture flow rate min: 25 gpm (94.6 lpm)
Fixture pressure max (static): 80 psi (551.6 kPa)
