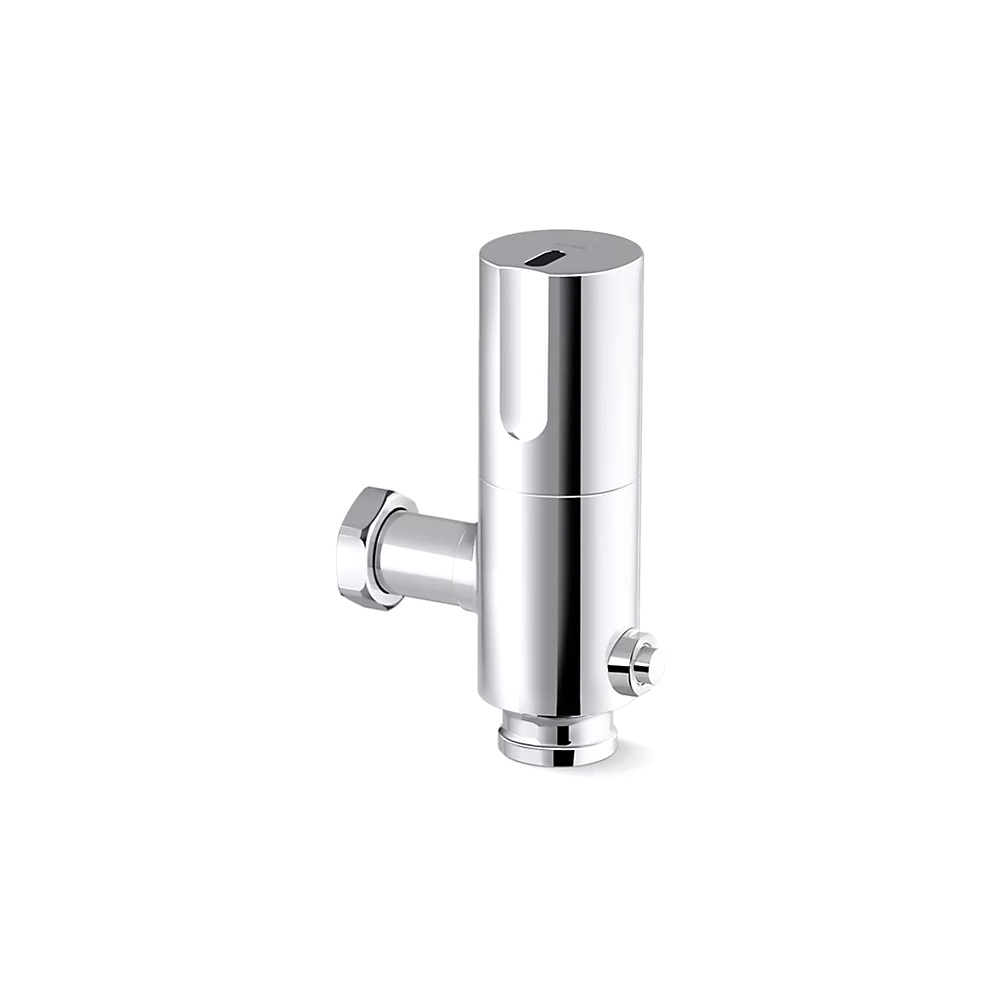

Kohler 40UH00G20-RF-CP Mach Wave Touchless Retrofit Urinal Flushometer Polished Chrome
Mach® WAVE
Touchless retrofit urinal flushometer, HES-powered, 0.5 gpf
K-40UH00G20-RF-CP
Color/Finish: Polished Chrome
Operating with a sophisticated electronic sensor, touchless flushometers with Mach WAVE technology feature highly accurate, dependable performance. These low water consumption flushometer valves, which offer attractive options for any commercial or institutional installation, comply with the guidelines of the Americans with Disabilities Act (ADA).
Features
0.5 gpf (1.9 lpf)
Activation distance is factory-set
Chloramine and chlorine resistance on all rubber components exposed to waterway
Engineered for optimal performance with KOHLER® commercial fixtures
125-micron filter protects internal components
No external flush volume adjustment ensures water conservation
24-hour automatic sentinel flush keeps trapway fresh
Mechanical override enables flushometer to be used manually even during a power outage
Powered by a 30 year/875,000 cycle hybrid energy cell, based on 72 uses per day
Less stop valve and tailpiece
Patented piston technology for superior flush volume accuracy
Technology
Flushometer activates when hand is waved over electronic infrared WAVE sensor
Material
Brass construction with durable Polished Chrome finish
Installation
Intended for urinal installations with 3/4" (19 mm) top spud coupling connection
Recommended Products/Accessories
1421939 Flushometer Arm Extension Kit
1509698 Pressure Gauge Kit, 1/8”
Optional Products/Accessories
GP1118986 Flushometer Extension Kit
K-10313 Flushometer 12" rough-in kit
Technical Information

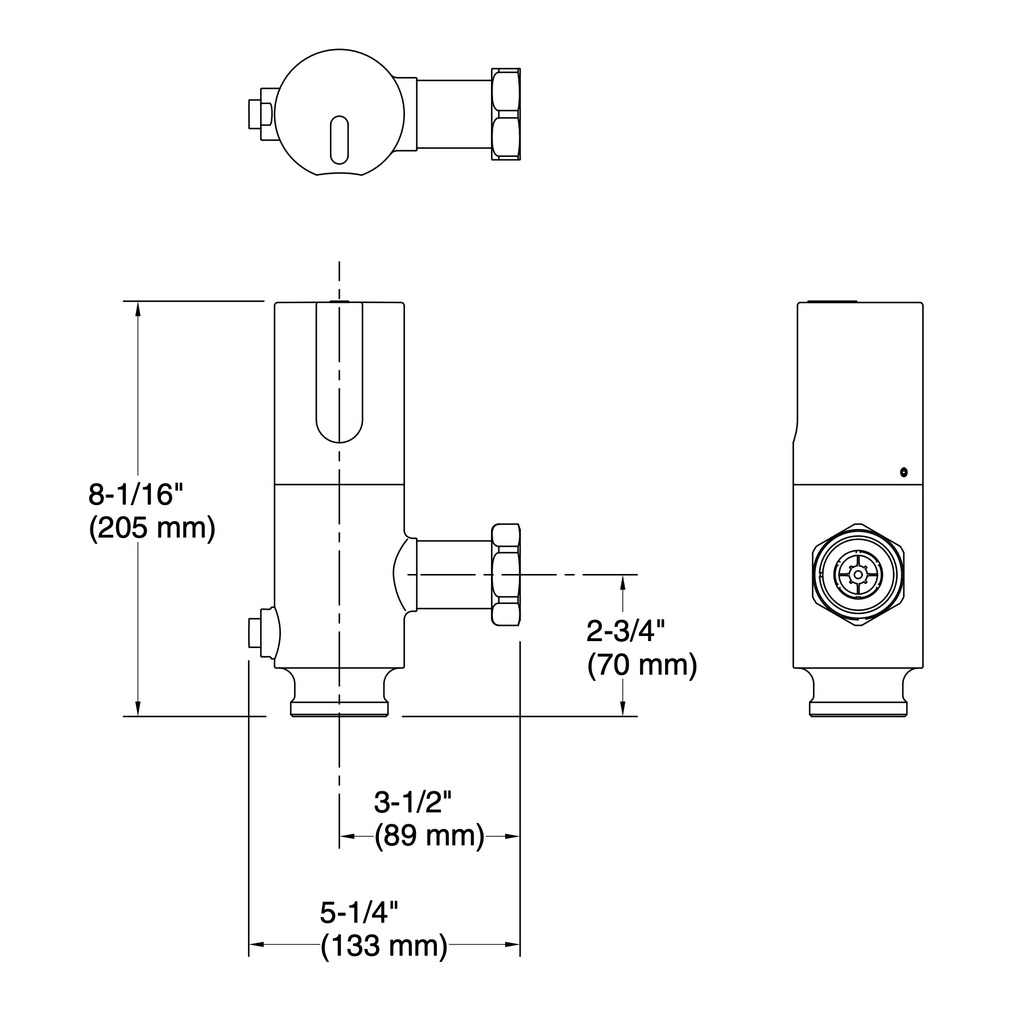

All product dimensions are nominal.
Spout:
Pressure/fixture Supply Requirements
Fixture pressure max (static): 80 psi (551.6 kPa)
Fixture pressure min (static): 25 psi (172.4 kPa)
Min flowing pressure: 25 psi (172.4 kPa)
Min flow rate: 25 gpm (94.6 lpm)
