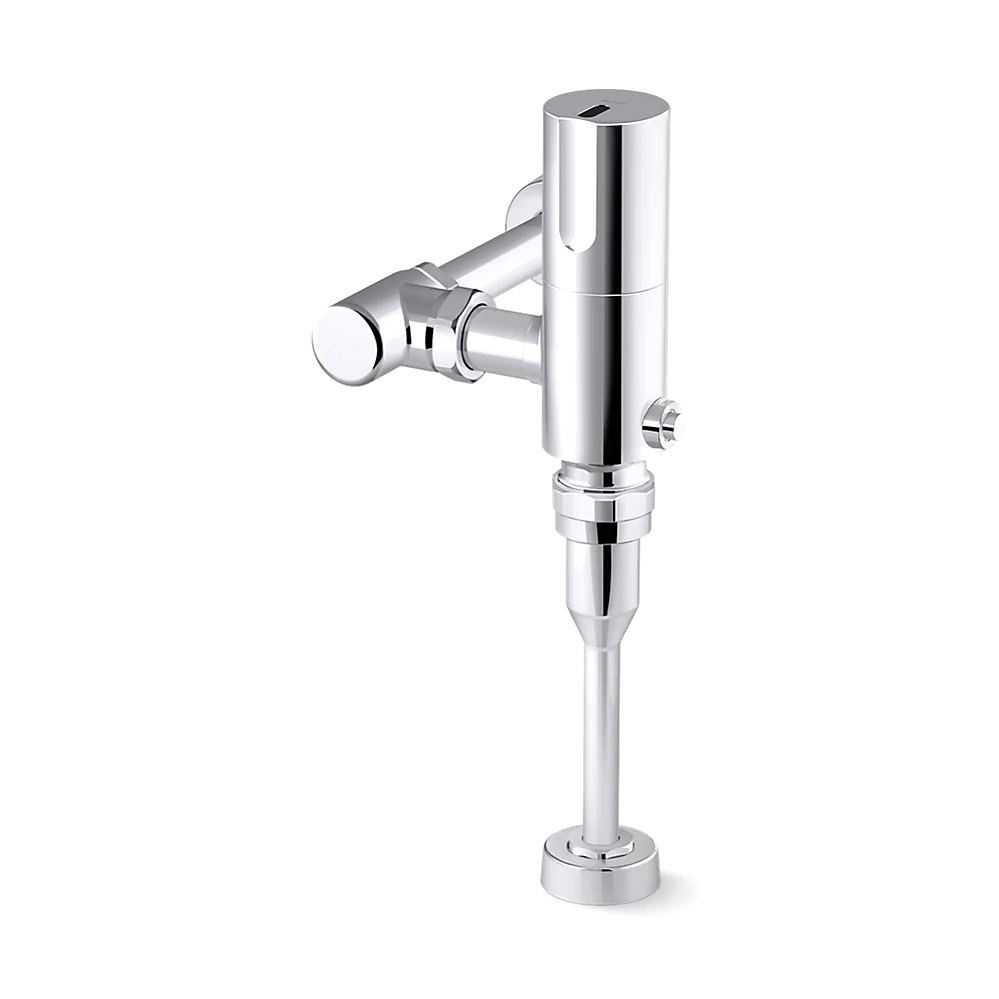

Kohler 40UD00G20-CP Mach Wave Touchless Urinal Flushometer Polished Chrome
Mach® WAVE
Touchless urinal flushometer, DC-powered, 0.5 gpf
K-40UD00G20-CP
Color/Finish: Polished Chrome
WAVE technology offers hygienic touchless operation on command. Activating only when a hand is waved directly over the flushometer, the sensor eliminates random flushing that can be frightening for children. And by removing false actuations, WAVE technology provides even greater water savings.
Features
0.5 gpf (1.9 lpf)
Activation distance is factory-set
Chloramine and chlorine resistance on all rubber components exposed to waterway
Engineered for optimal performance with KOHLER® commercial fixtures
125-micron filter protects internal components
High back pressure vacuum breaker
Locking stop cap provides protection against vandalism
No external flush volume adjustment ensures water conservation
24-hour automatic sentinel flush keeps trapway fresh
Mechanical override enables flushometer to be used manually even during a power outage
Includes 1.5V AA alkaline batteries
Patented piston technology for superior flush volume accuracy
Technology
Flushometer activates when hand is waved over electronic infrared WAVE sensor
Material
Brass construction with durable Polished Chrome finish
Installation
Intended for urinal installations with 3/4" (19 mm) top spud coupling connection
Recommended Products/Accessories
1421939 Flushometer Arm Extension Kit
1509698 Pressure Gauge Kit, 1/8”
Optional Products/Accessories
GP1118986 Flushometer Extension Kit
K-10313 Flushometer 12" rough-in kit

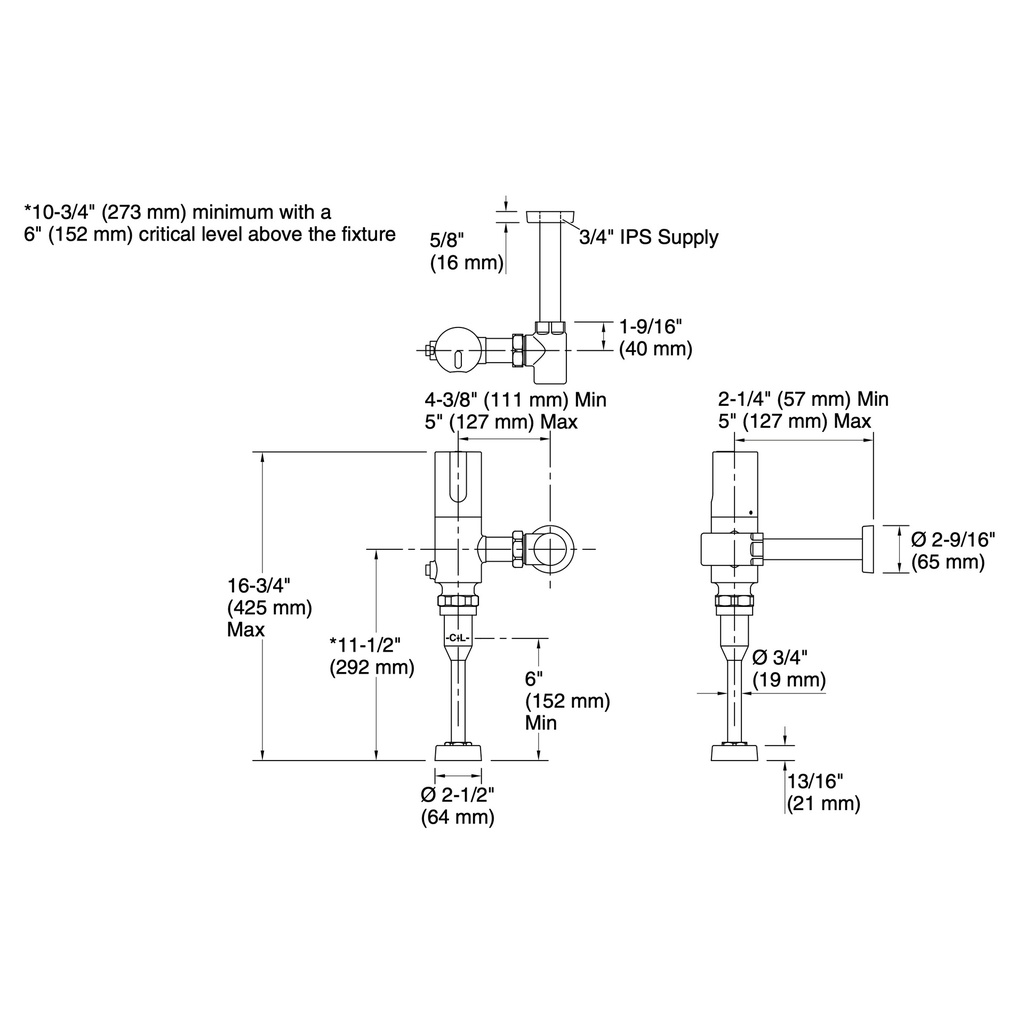

Technical Information
All product dimensions are nominal.
Spout:
Pressure/fixture Supply Requirements
Fixture pressure max (static): 80 psi (551.6 kPa)
Fixture pressure min (static): 25 psi (172.4 kPa)
Min flowing pressure: 25 psi (172.4 kPa)
Min flow rate: 25 gpm (94.6 lpm)
