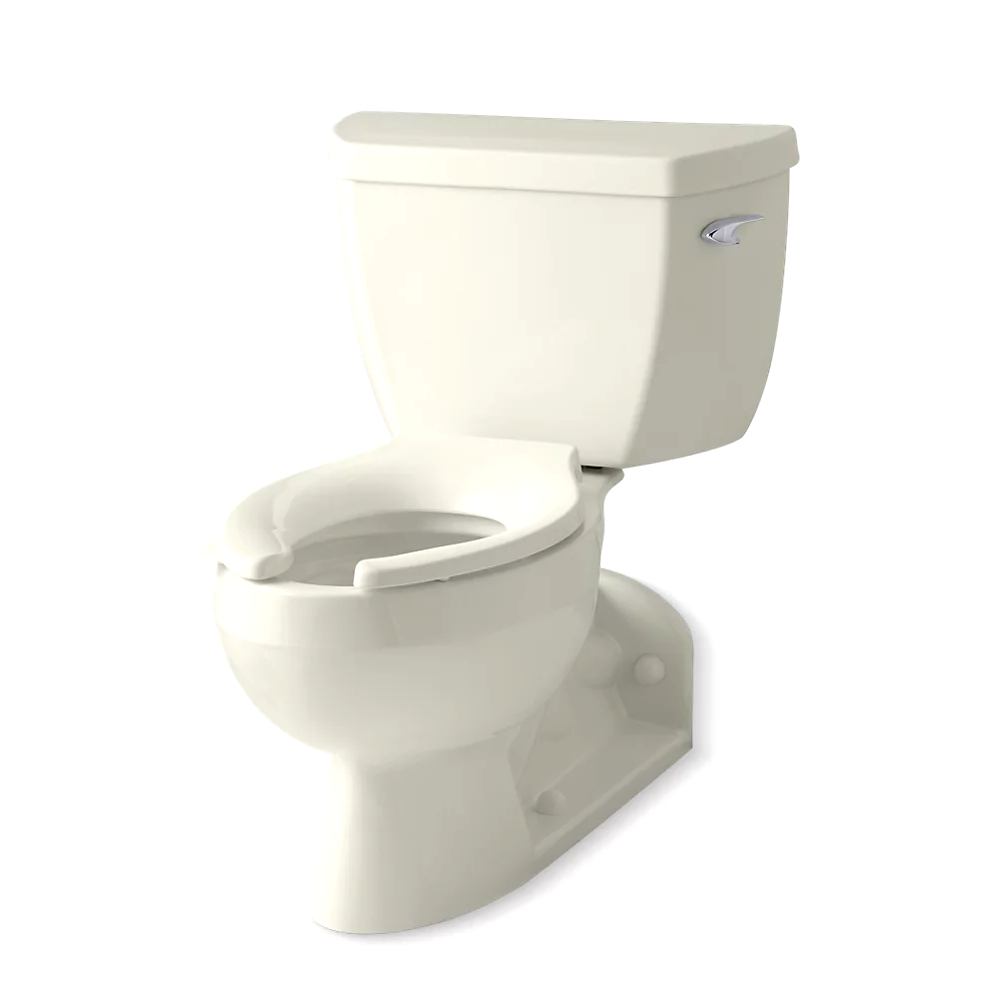

Kohler 3652-T-96 Barrington Two Piece Elongated Toilet Biscuit
Barrington™
Two-piece elongated toilet, 1.0 gpf
K-3652-T-96
Color/Finish: Biscuit
Barrington Pressure Lite 1.0 gpf toilets are perfect for those customers aggressively seeking the benefits of water conservation. This toilet qualifies for water rebate programs and contributes to LEED credits. An optimized 1.0-gallon flush setting reduces water consumption by more than 37% over 1.6-gallon toilets.
Features
Elongated bowl offers added room and comfort
Equipped with Sloan FLUSHMATE® – Sloan® Valve Company
Polished Chrome trip lever
Rear outlet
Tank cover locks included
4" (102 mm) rough-in
1.0 gpf (3.8 lpf)
Installation
Seat and supply line sold separately
Recommended Products/Accessories
K-5588 Purefresh® Deodorizing elongated toilet seat
K-4108 PureWash® E750 Elongated bidet toilet seat with remote control
K-5420 Low-Profile Bolt Caps
Included Components
K-4327 Elongated toilet bowl
K-4484-T Toilet tank, 1.0 gpf
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
0 White
96 Biscuit
7 Black Black

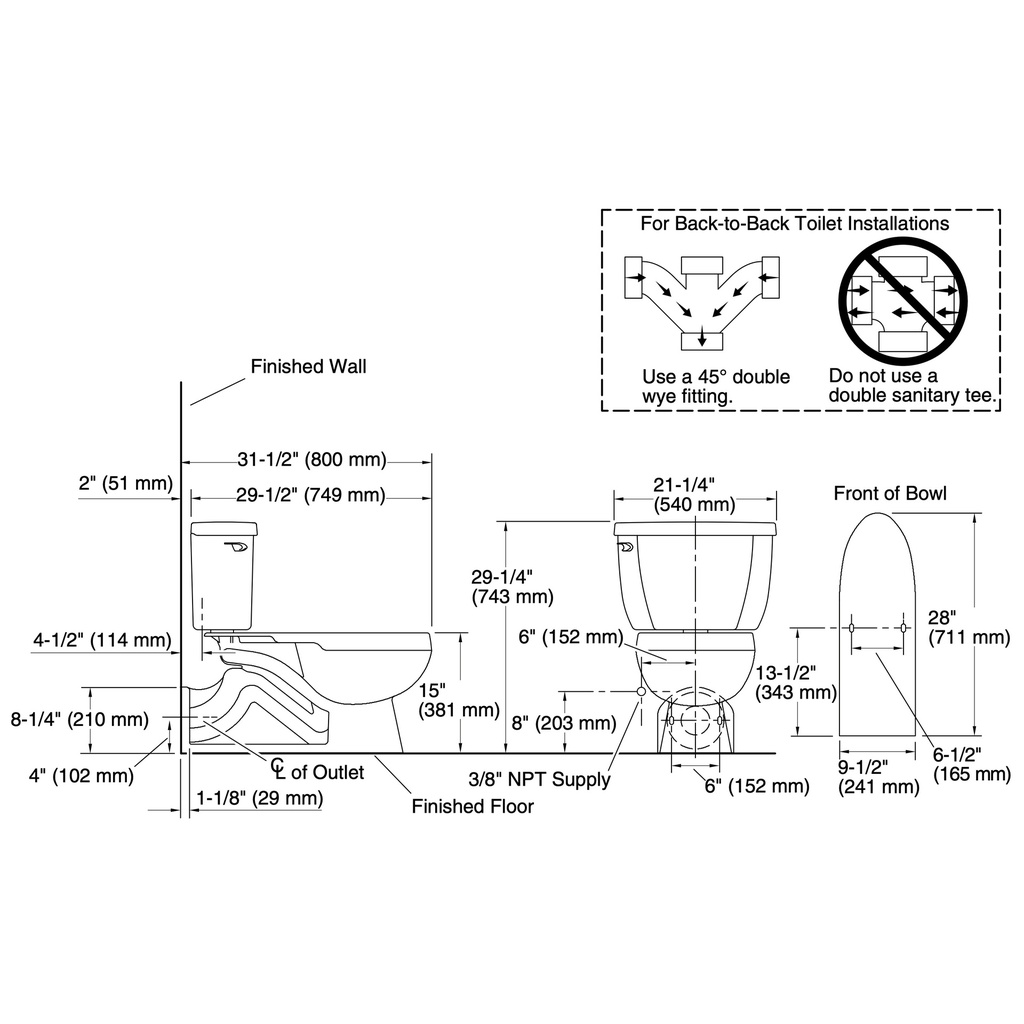

Technical Information
All product dimensions are nominal.
Toilet type: Floor-mount
Waste Outlet: Wall
Bowl shape: Elongated
Flush type: Pressure Lite
Trap passageway: 2-1/4" (57 mm)
Water surface size: 12" x 10" (305 mm x 254 mm)
Rim to water surface: 7" (178 mm)
Rough-in: 4" (102 mm)
Seat-mounting holes: 5-1/2" (140 mm)
Fixture Supply Requirements
Min static pressure: 35 psi (241.3 kPa)
Max static pressure: 80 psi (551.6 kPa)
