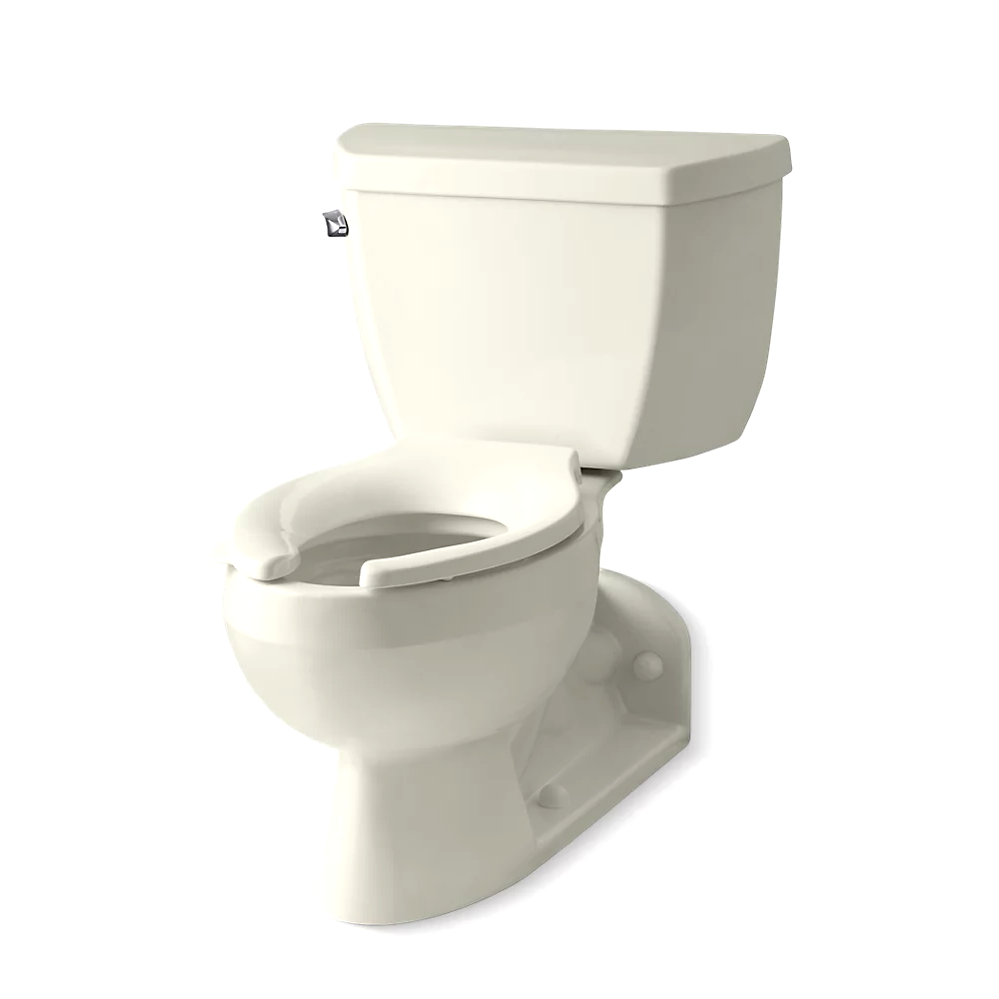

Kohler 3554-RA-96 Barrington Two Piece Elongated Toilet Biscuit
Barrington™
Two-piece elongated toilet, 1.6 gpf
K-3554-RA-96
Color/Finish: Biscuit
Get robust flushing power every time with KOHLER Pressure Assist technology. The Barrington Pressure Lite elongated toilet bowl drains horizontally - no sleeving, channeling, or drains running through floors. Combine with a seat to complete your Pressure Lite toilet.
Features
Elongated bowl offers added room and comfort
Equipped with Sloan FLUSHMATE® – Sloan® Valve Company
Polished Chrome trip lever
Rear outlet
4" (102 mm) rough-in
1.6 gpf (6.0 lpf)
Installation
Seat and supply line sold separately
Recommended Products/Accessories
K-5588 Purefresh® Deodorizing elongated toilet seat
K-4108 PureWash® E750 Elongated bidet toilet seat with remote control
K-5420 Low-Profile Bolt Caps
Included Components
K-4327 Elongated toilet bowl
K-4645-RA Toilet tank, 1.6 gpf
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
0 White
96 Biscuit

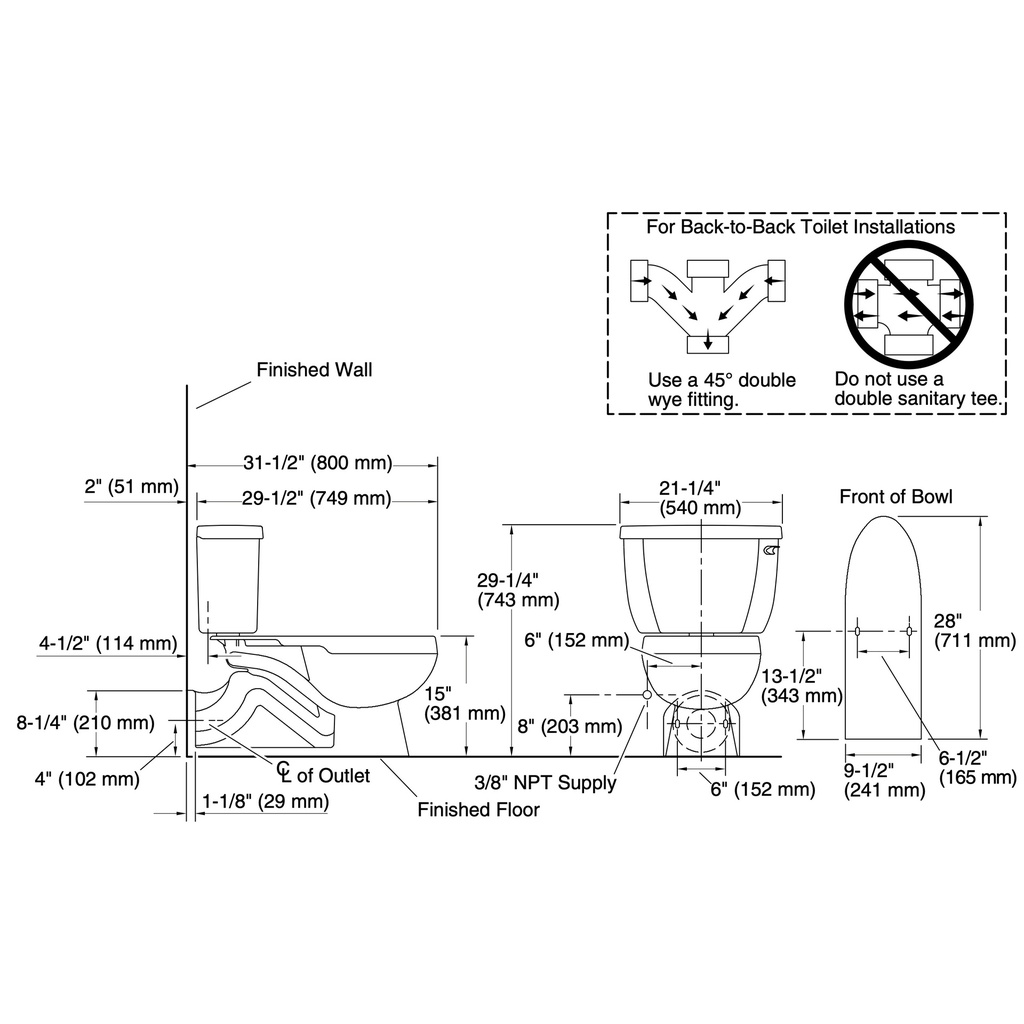

Technical Information
All product dimensions are nominal.
Toilet type: Floor-mount
Waste Outlet: Wall
Bowl shape: Elongated
Flush type: Pressure Lite
Trap passageway: 2-1/4" (57 mm)
Water surface size: 12" x 10" (305 mm x 254 mm)
Rim to water surface: 7" (178 mm)
Rough-in: 4" (102 mm)
Seat-mounting holes: 5-1/2" (140 mm)
Fixture Supply Requirements
Min static pressure: 20 psi (137.9 kPa)
Max static pressure: 80 psi (551.6 kPa)
