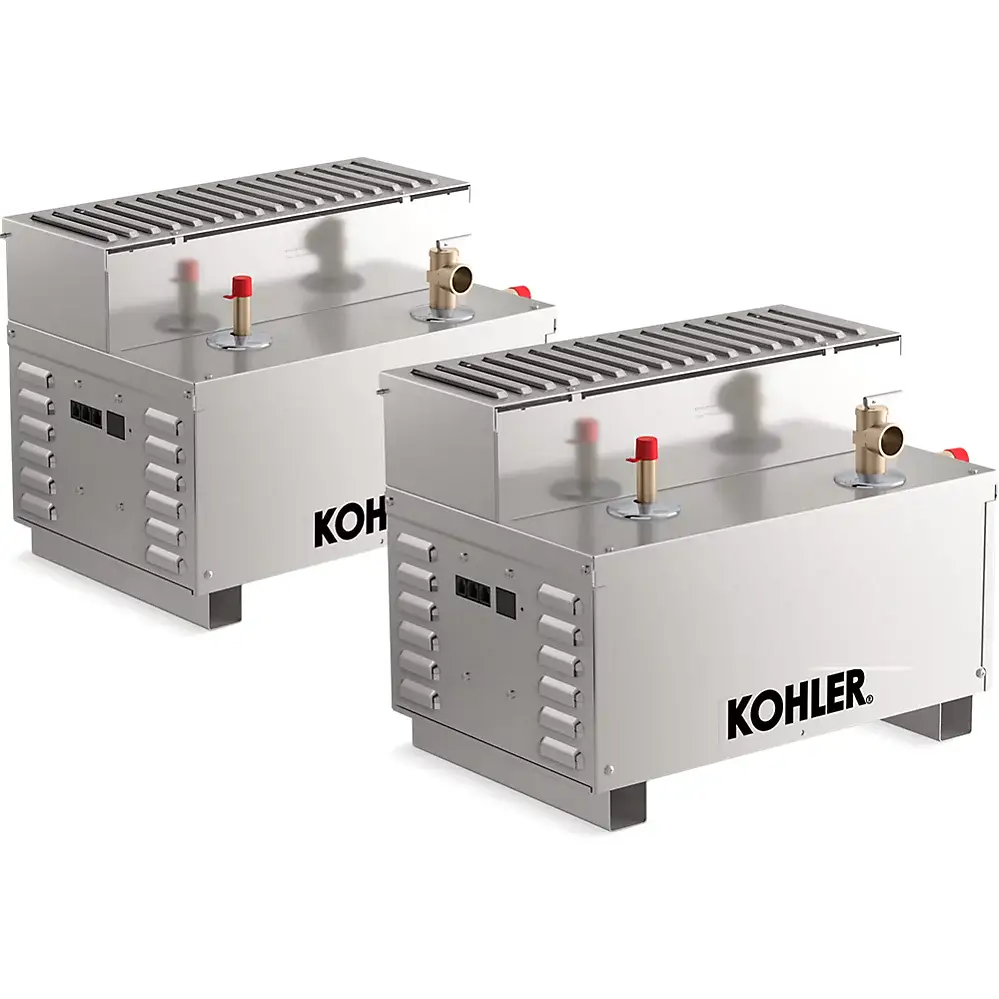

Kohler 32335-NA Invigoration Series 30 kW Steam Generator
Invigoration® Series
30 kW steam generator
K-32335-NA
Escape to the soothing comfort of your private steam shower, ready in just 60 seconds. With the press of a button, this 30-kilowatt steam generator delivers the benefits of steam, including respiratory relief, to turn your showering experience into a spa-like wellness retreat. Elevate your experience with KOHLER®.
Features
Fast-Response® technology produces a luxurious steam shower in 60 seconds
Power Clean™ technology offers one-touch automatic cleaning and safe maintenance
Constant Steam feature produces steam at a consistent rate, which greatly minimizes temperature fluctuations
Invigoration Series steam generators use approximately one gallon of water per 20-minute session, which is significantly less water than a traditional shower experience
1,000 cubic feet maximum volume rating for custom showering applications
To ensure safety, system automatically shuts down after 20 minutes if not reactivated by user
For use with Invigoration steam controller with round steam heads, requires K-5558 Invigoration Series tandem steam generator control kit (sold separately)
For use with Anthem+ or DTV+ controller with round steam heads, requires K-5549-K1 Invigoration Series tandem digital steam adapter kit (sold separately)
For use with Invigoration steam controller with square or linear steam heads, requires K-32312 Invigoration Series steam controller, 1260090 UI controller dual generator cable kit, and choice of two K-32310 square steam heads or two K-32309 linear steam heads (all sold separately)
For use with Anthem+ or DTV+ controller with square or linear steam heads, requires K-32311 Invigoration Series digital steam adapter, 1260089 DTV dual generator cable kit, and choice of two K-32310 square steam heads or two K-32309 linear steam heads (all sold separately)
Material
Generator is constructed of insulated stainless steel, which maintains the temperature while ensuring case is safe to the touch
Required Electrical Service
One dedicated circuit required.
Steam Generator: 240 V, 180 A, 50/60 Hz
Technical Information
All product dimensions are nominal.
Power source: Hardwire - AC, not included
Input water recommendations:
TDS: 0-0 ppm
Hardness: 0-60 ppm
Time to Steam: 0-0 sec
Electrical component rating:
Steam Generator: 240 V, 90 A, 50/60Hz
Spout:
Max Inlet Pressure: 70 psi (482.6 kPa)
Recommended Feed Water Quality:
Water hardness: 60 ppm (3.5 gpg)
Total water alkalinity: 150 ppm (8.8 gpg)
