Kohler 29330-0-0 Volute 70-7/8" x 30-3/8" Freestanding Bath With Base White
Volute®
70-7/8" x 30-3/8" freestanding bath with base
K-29330-0-0
Color/Finish: White
The KOHLER® Volute freestanding bath collection is a contemporary take on the classic charm of KOHLER® enameled cast iron. Designed to make an enduring statement of beauty, KOHLER® enameled cast iron is scratch- and stain-resistant. The modern lines of the collection’s design allow for the lowest threshold in Kohler’s freestanding bath category, making entering and exiting the bath effortless, and combine with the timeless allure of the cast iron to create an unforgettable look in any bathing space.
Available in two shapes and as many sizes, the Volute freestanding bath collection also offers you the choice of a shroud or bath base in black or white. And because Volute baths are manufactured with the drain and overflow preinstalled, they are less complicated to set up. To complete your 70-7/8" x 30-3/8" oval alcove bath, K-36361 drain trim kits are available in several finishes to coordinate with KOHLER® bathroom faucets and accessories.
Features
Freestanding design creates a striking focal point in your bathing area
Oval basin creates a spacious bathing experience
Integral lumbar support on both ends

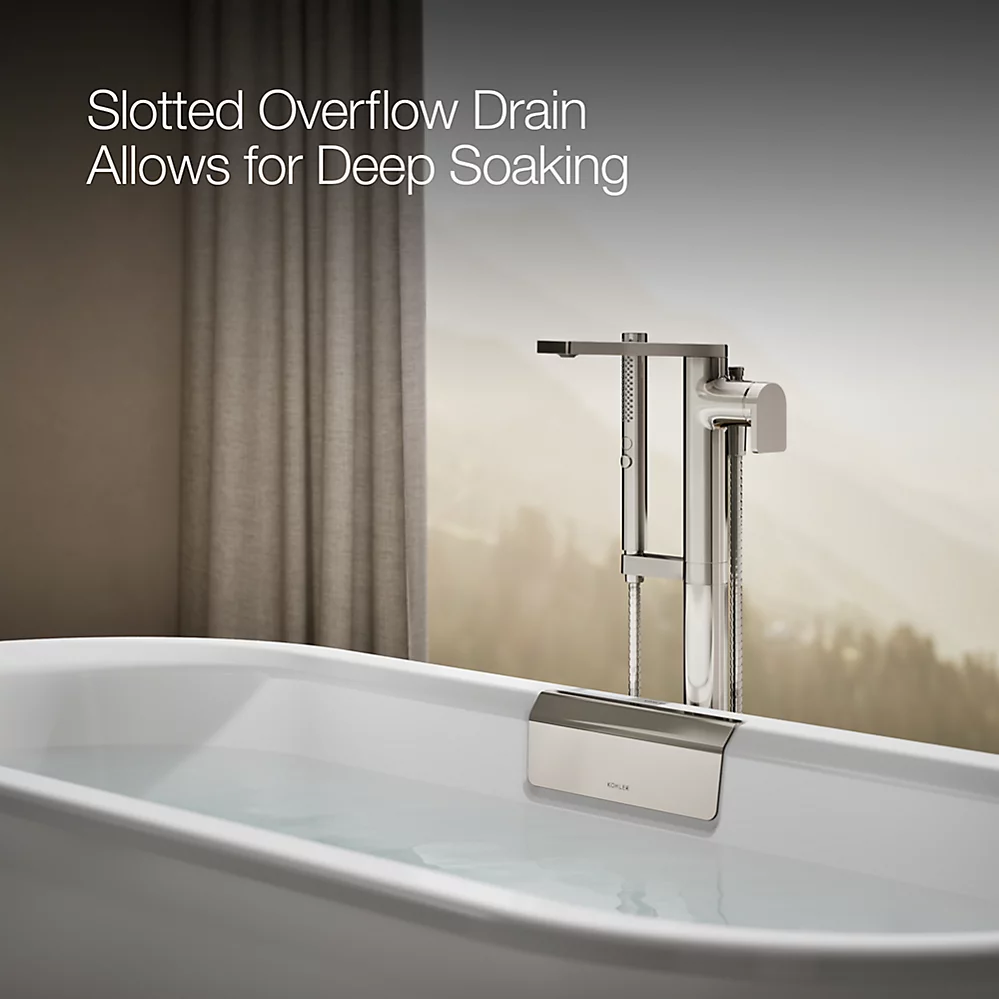

Slotted overflow allows for deep soaking
12-1/16" (306 mm) deep-soaking depth provides a luxurious bathing experience
Safeguard® slip-resistant surface provides excellent traction underfoot
Center drain
Drain and integral overflow preinstalled to reduce installation time
Color-matched pedestal base creates a sleek appearance
Requires K-36361 Volute bath drain trim (sold separately)
Low step-over height allows easy entry and exit
Material
KOHLER® enameled cast iron bath
Painted exterior in White
Reinforced resin pedestal base with White painted finish
Brass drain
Installation
Freestanding
Required Products/Accessories
For freestanding installation
K-36361 Bath drain trim

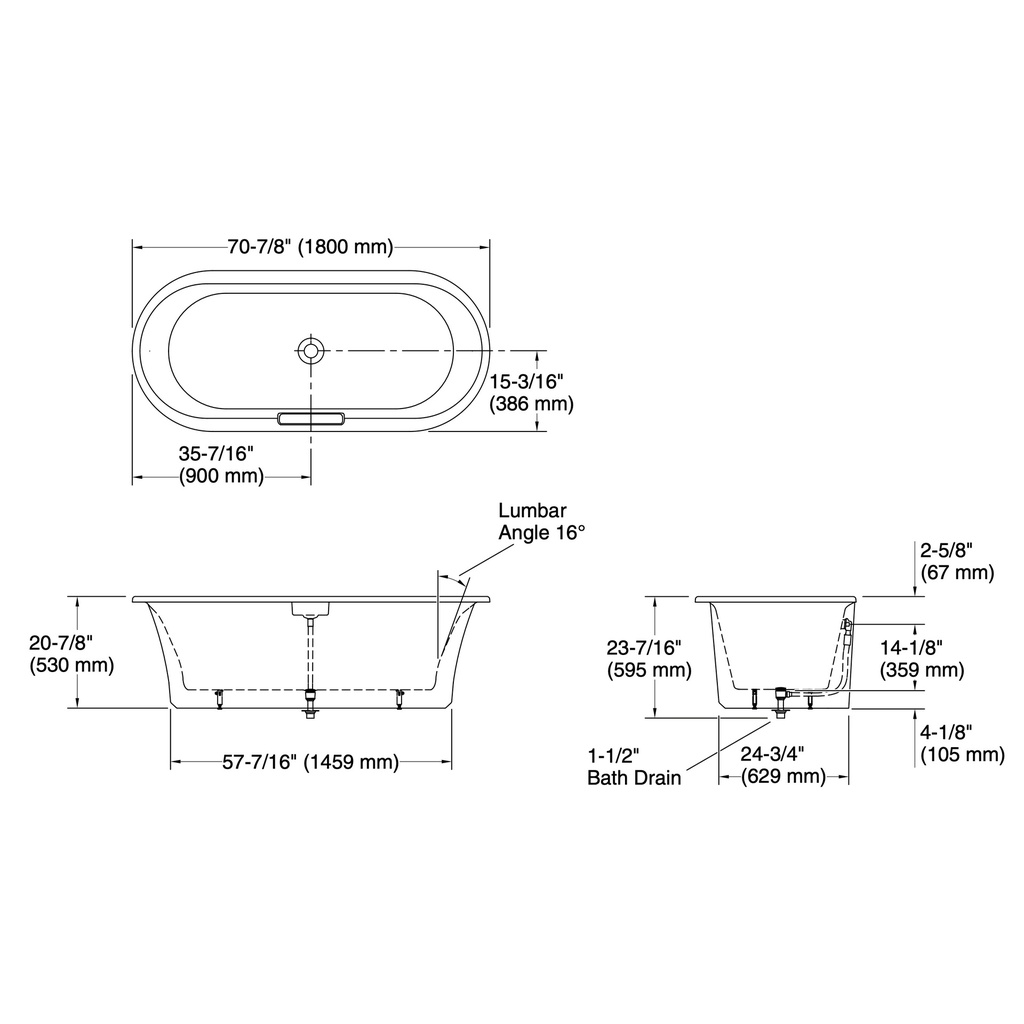

Technical Information
All product dimensions are nominal.
Drain location: Center
Basin area, bottom: 58-1/8" x 22-3/16" (1476 mm x 564 mm)
Basin area, top: 68-1/8" x 25-11/16" (1731 mm x 652 mm)
Weight: 356 lbs (161.5 kg)
Minimum floor load: 57.8 lbs/ft² (282.2 kg/m²)
Water depth: 13-1/8" (333 mm)
Water capacity: 57.63 gal (218.2 L)
