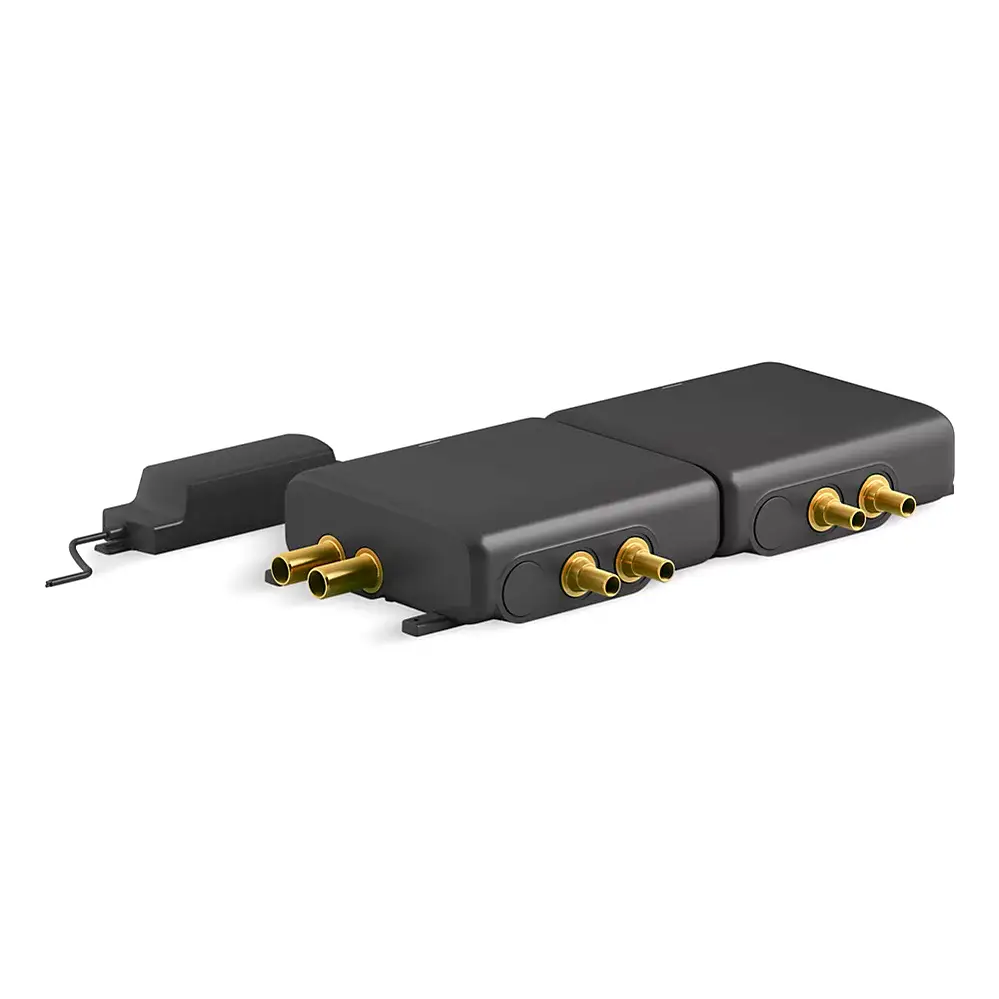

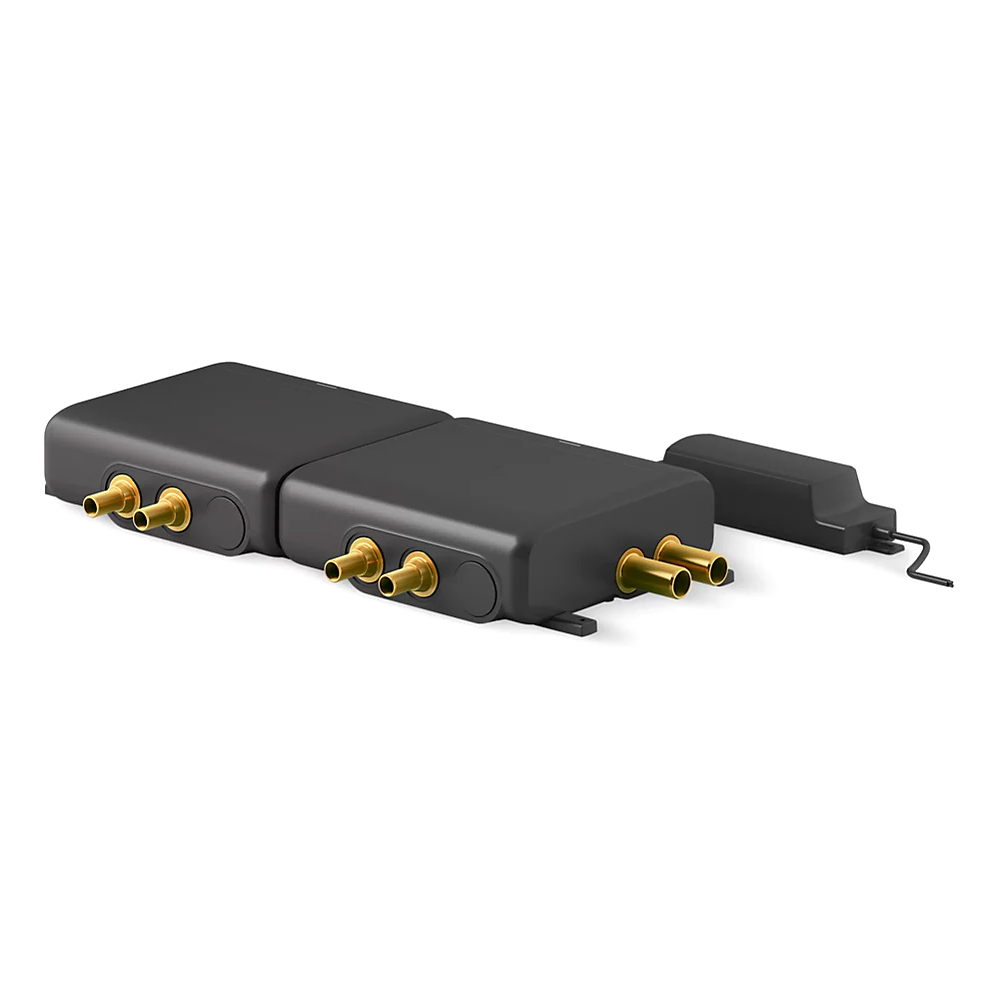

Kohler 28211-NA Anthem Four Port Digital Thermostatic Valve
Anthem®
Four-port digital thermostatic valve
K-28211-NA
Experience precise control over your shower with KOHLER® Anthem four-port digital thermostatic valve. Engineered for use with the Anthem digital control, this advanced valve enables you to independently manage four shower outlets, creating two separate temperature and flow zones for a truly personalized shower.
The digital thermostatic technology ensures consistent water temperature and flow, while the plug-and-play installation streamlines setup. Optional eco mode allows you to conserve water by activating just one outlet at a time.
Features
Digitally controlled thermostatic mixing valve
Antiscald protection
Built-in temperature and flow control
Allows for two different temperature and flow zones in your shower
Selecting "low flow" mode on setup limits total flow to 1.75 gpm (6.6 lpm) for installations where water conservation or CEC-compliance is desired
Use with the KOHLER Konnect® app to unlock additional Anthem system features, Kohler-developed experiences, and system updates
Up to 22 gpm (83 lpm) flow rate at 45 psi (3.1 bar) with maximum flow of 9.5 gpm (36 lpm) from one outlet

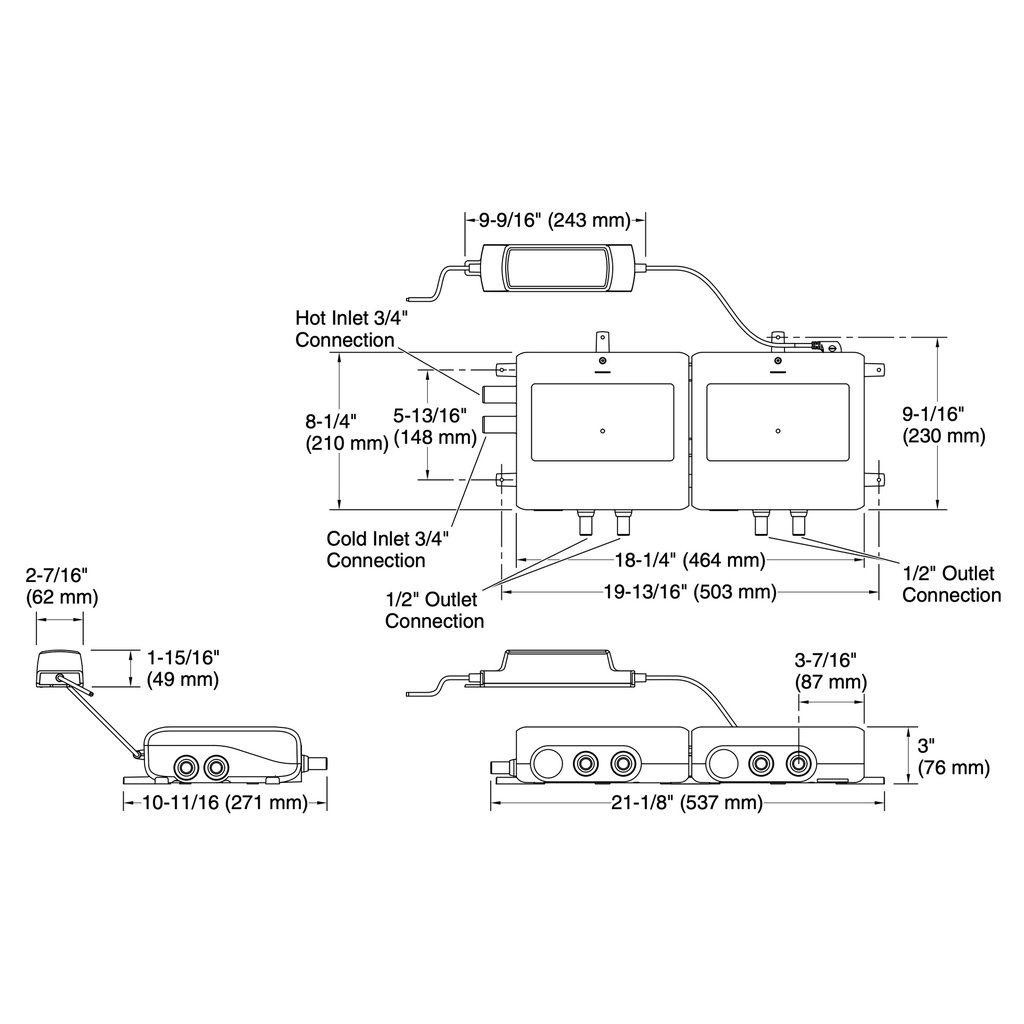

Four independently controllable 1/2" (13 mm) outlets with brass tube connections
3/4" (19 mm) inlets with brass tube connections
Material
Reinforced engineering-grade thermoplastic body
Installation
Mounts within standard 2" x 4" (38 x 102 mm) walls
Install valve approximately 32' (9754 mm) away from the digital control (cable supplied with control)
Prewired with two-prong plug for connection to 120 V GFCI receptacle
After digital control is connected to valve and power source, follow on-screen prompts for easy setup; no Internet needed. (Digital control sold separately)
Required Products/Accessories
For wall-mount installation
K-28214 Digital control
Optional Products/Accessories
K-28213 Remote on/off button for digital thermostatic valve
Required Electrical Service
One circuit required, protected with Class A Ground-Fault
Circuit-Interrupter (GFCI). Outside North America, this device
may be known as a Residual Current Device (RCD).
Thermostatic valve: 120 V, 1.6 A, 60 Hz
Technical Information
All product dimensions are nominal.
Power source: Plug - AC, included
Electrical component rating:
Thermostatic valve: 120 V, 1.6 A, 60 Hz
Spout:
Cable length: Data, 32 ft (9.8 m)
Bluetooth® range: 33 ft (10.1 m)
Bluetooth® version: 5.0
Max. Ambient temp: 122°F (50°C)
Min. Operating temp: 34°F (1.1°C)
Max. Operating temp: 122°F (50°C)
Shower Valve: Flow Rate (Max) @ 45 psi 22.5 gal/min (85.2 l/min)
