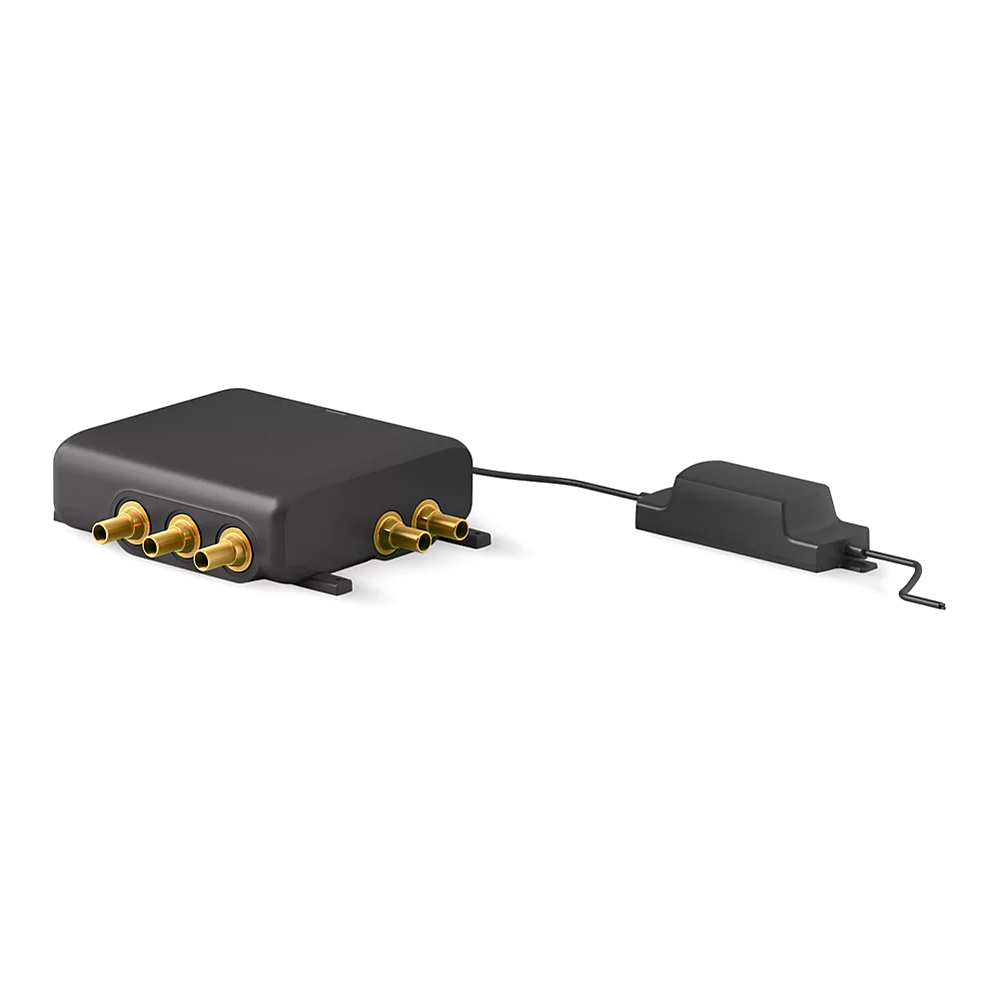

Kohler 28210-NA Anthem Three Port Digital Thermostatic Valve
Anthem®
Three-port digital thermostatic valve
K-28210-NA
Digital thermostatic technology provides accurate, precise, and consistent temperature and flow in your showering system. This precision-engineered, best-in-class digital thermostatic valve is designed for use with the Anthem digital control. Its easy plug-and-play design makes installation simple.
With three independently controllable outlet ports, this valve is ideally suited for applications where three shower outlets are required. Optional built-in eco mode lets you use just one outlet at a time to conserve water.
Features
Digitally controlled thermostatic mixing valve
Antiscald protection
Built-in temperature and flow control
Selecting "low flow" mode on setup limits total flow to 1.75 gpm (6.6 lpm) for installations where water conservation or CEC-compliance is desired
Use with the KOHLER Konnect® app to unlock additional Anthem system features, Kohler-developed experiences, and system updates
Up to 12 gpm (45.4 lpm) flow rate at 45 psi (3.1 bar) with maximum flow of 9.5 gpm (36 lpm) from one outlet
Three independently controllable 1/2" (13 mm) outlets with brass tube connections
1/2" (13 mm) inlets with brass tube connections
Material
Reinforced engineering-grade thermoplastic body
Installation
Install valve approximately 32' (9754 mm) away from the digital control (cable supplied with control)
Mounts within standard 2" x 4" (38 x 102 mm) walls
Prewired with two-prong plug for connection to 120 V GFCI receptacle
After digital control is connected to valve and power source, follow on-screen prompts for easy setup; no Internet needed. (Digital control sold separately)
Required Products/Accessories
For wall-mount installation
K-28214 Digital control
Optional Products/Accessories
K-28213 Remote on/off button for digital thermostatic valve
Required Electrical Service
One circuit required, protected with Class A Ground-Fault
Circuit-Interrupter (GFCI). Outside North America, this device may be known as a Residual Current Device (RCD).
Thermostatic valve: 120 V, 1 A, 60 Hz
Technical Information

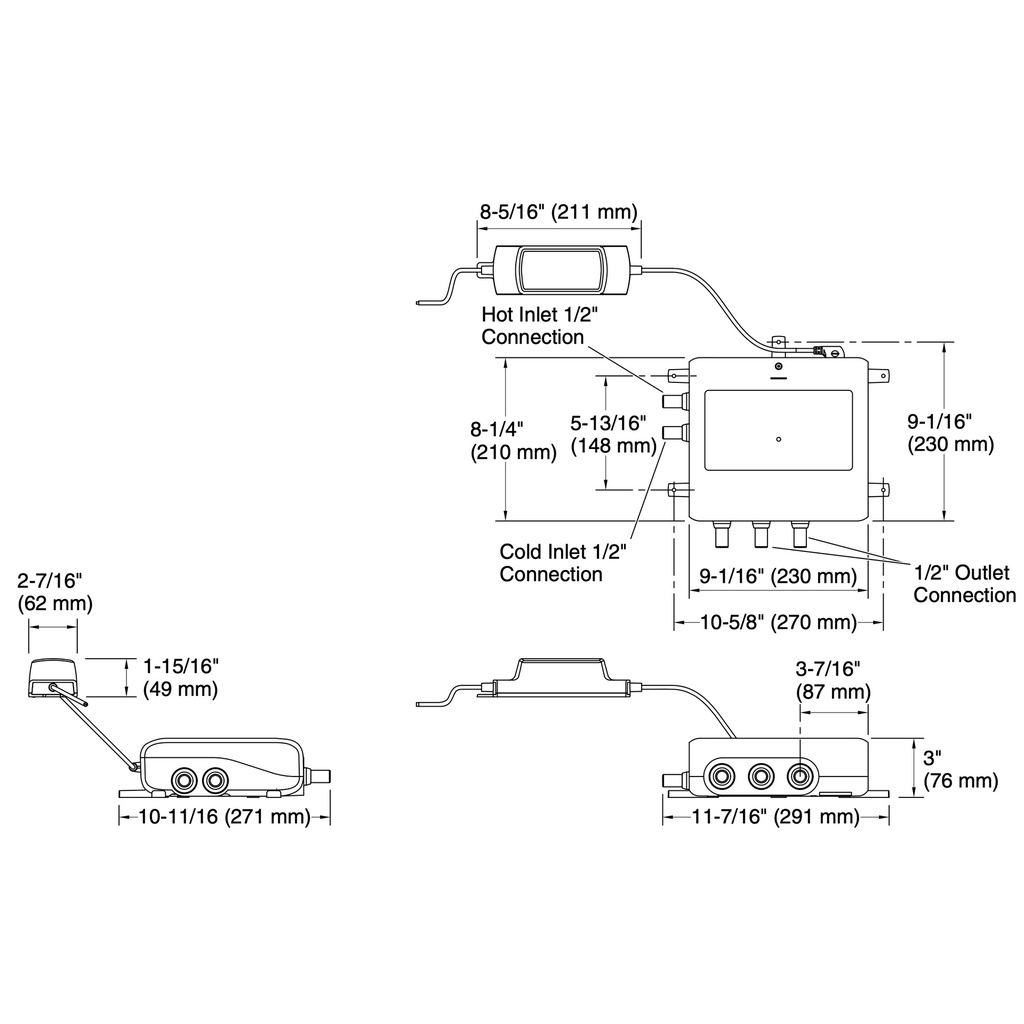

All product dimensions are nominal.
Power source: Plug - AC, included
Electrical component rating:
Thermostatic valve: 120 V, 1 A, 60 Hz
Spout:
Cable length: Data, 32 ft (9.8 m)
Bluetooth® range: 33 ft (10.1 m)
Bluetooth® version: 5.0
Max. Ambient temp: 122°F (50°C)
Min. Operating temp: 34°F (1.1°C)
Max. Operating temp: 122°F (50°C)
Shower Valve:
Flow Rate (Max) @ 45 psi 12 gal/min (45.4 l/min)
