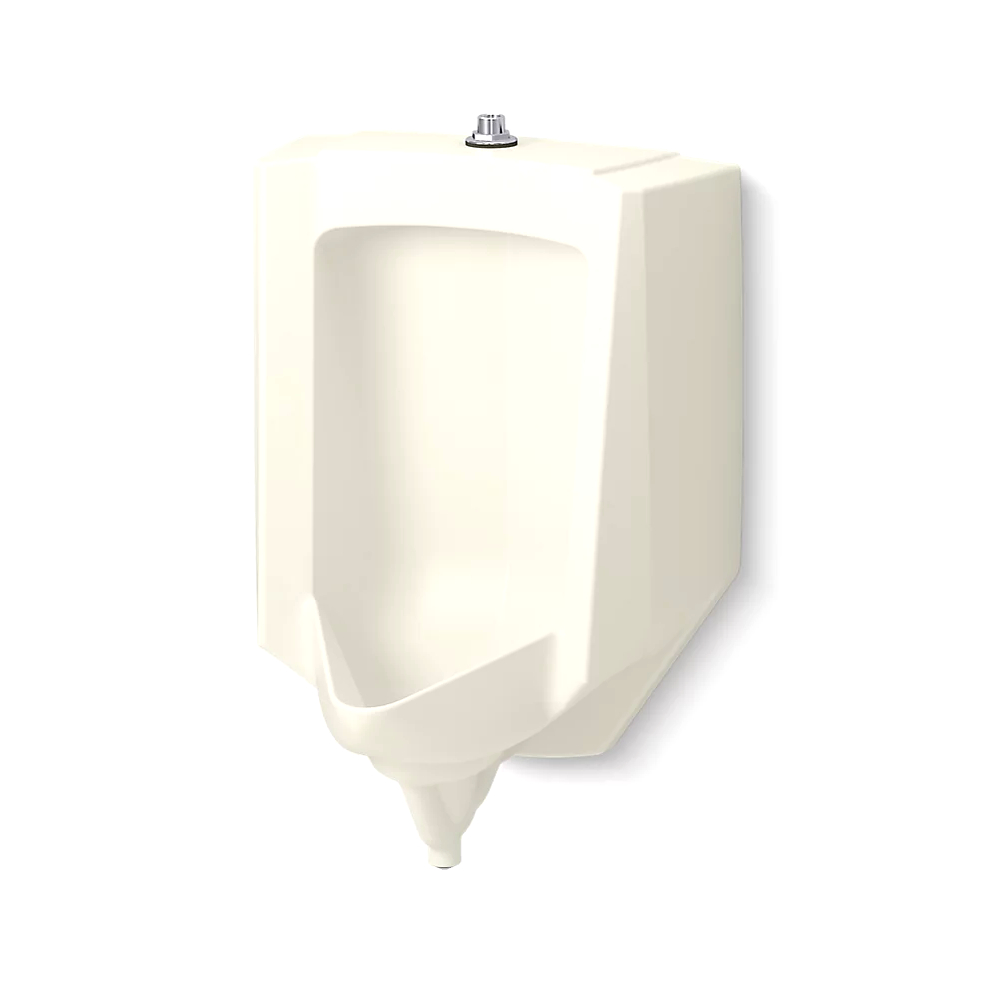

Kohler 25048-ET-96 Stanwell Top Spud Blowout Urinal Biscuit
Stanwell™
Blow-out half-stall 0.5–1.0 gpf urinal, top spud
K-25048-ET-96
Color/Finish: Biscuit
This new release of the Stanwell urinal features the same streamlined style and dimensions as the original but with new enhancements including a more water-efficient flush rate of 0.5 to 1.0 gpf. The inlet spud has been reduced from 1-1/4" to the industry standard 3/4". Rough-in and wall-print dimensions remain the same as the K-4972 Stanwell, and the powerful blow-out action flushes like a bowl and offers quiet performance.
Features
Blow-out flush action
3/4" (19 mm) top spud
Uses 0.5 to 1.0 gallons per flush
Material
Vitreous china
Installation
Note: If urinal is being purchased as a retrofit for K-4972, a 3/4" valve tailpiece is also required; existing 1-1/4" valve tailpiece is not compatible
Replaces K-4972-ET
Recommended Products/Accessories
K-23725 Cast iron cleaner
Optional Products/Accessories
1363456 Retrofit Flushometer Tailpiece, 3/4”
Available Colors/Finishes
Color tiles intended for reference only.
Color Code Description
0 White
96 Biscuit
7 Black Black

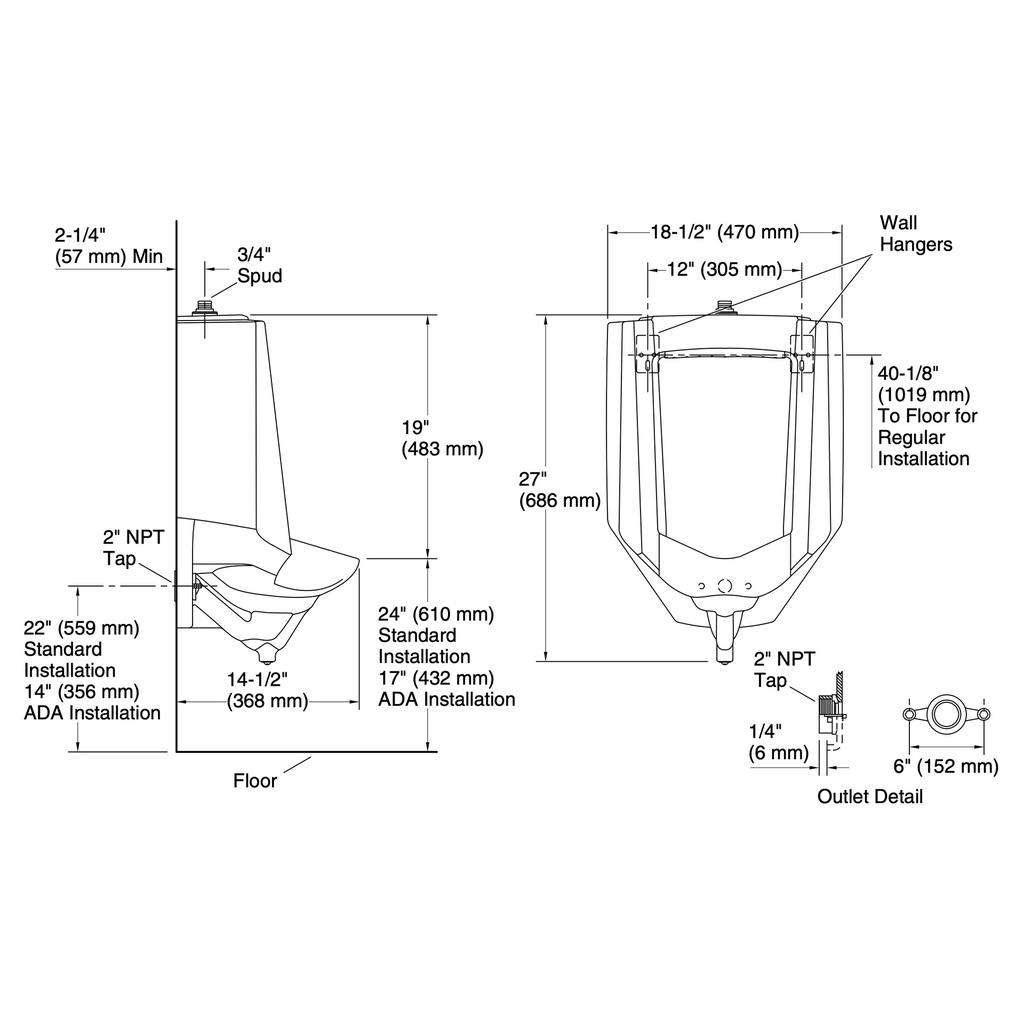

Technical Information
All product dimensions are nominal.
Spud size: 3/4", Inlet, Top
Min. Water per Flush: 0.5 gpf (1 lpf)
Max. Water per Flush: 1 gpf (3.8 lpf)
Designed for the above water use when installed with a water-saving flushometer.
Pressure and Supply Requirements
Fixture pressure min (static): 25 psi (172.4 kPa)
Fixture pressure max (static): 80 psi (551.6 kPa)
