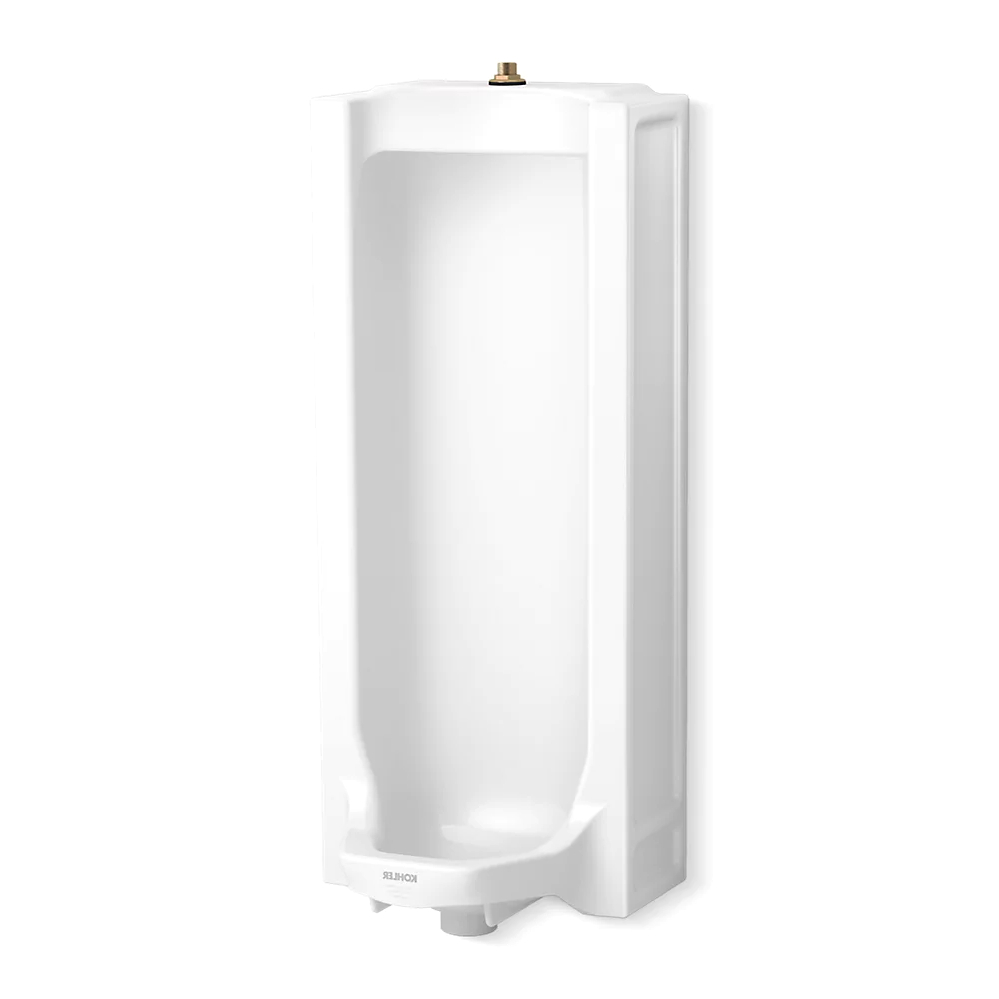

Kohler 25039-T-0 Branham Full Stall Washout Urinal With Top Spud White
Branham™
Full stall washout urinal with top spud
K-25039-T-0
Color/Finish: White
The straightforward design of the Branham urinal brings KOHLER styling and functionality to any application. Constructed of durable vitreous china, it is available in a palette of KOHLER colors to complement any decor.
Features
Full-stall wash-down urinal
0.5 or 1.0 gpf (1.9 or 3.8 lpf)
Lip of urinal installs below floor level for easier cleaning around fixture
Full length sidewalls provide added privacy
External trapway
3/4" (19 mm) top spud
Drain sold separately
Material
Vitreous china
Installation
Replaces K-4920-T
Optional Products/Accessories
K-9172 Urinal Strainer
K-9183 Urinal Strainer
Included Components
18376 Urinal Spud Accessory 3/4"
Available Colors/Finishes
Color Code Description
0 White
96 Biscuit
7 Black Black
Technical Information

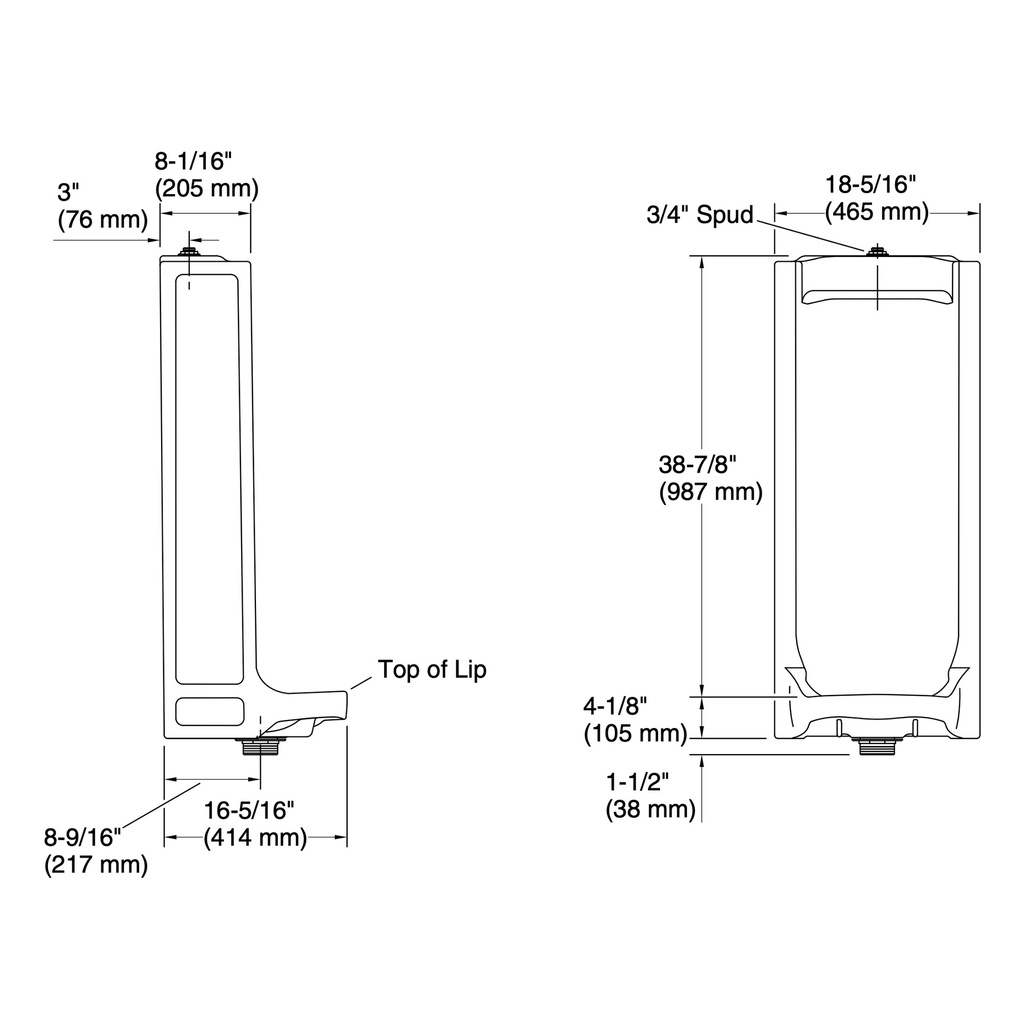

All product dimensions are nominal.
Spud size: 3/4, Inlet, Top
Min. Water per Flush: 0.5 gpf (1 lpf)
Max. Water per Flush: 1 gpf (3.8 lpf)
Designed for the above water use when installed with a water-saving flushometer.
Pressure and Supply Requirements
Fixture pressure min (static): 20 psi (137.9 kPa)
Fixture pressure max (static): 80 psi (551.6 kPa)
