Kohler 1967-GHW-0 Sunstruck 65-1/2" x 35-1/2" Freestanding Heated Bubble Massage Air Bath White
Sunstruck®
65-1/2" x 35-1/2" freestanding Heated BubbleMassage™ air bath with Bask® heated surface and fluted shroud
K-1967-GHW-0
Color/Finish: White
Immerse yourself in a sanctuary of relaxation with KOHLER® Sunstruck, a freestanding Heated BubbleMassage air bath that envelops you in a soothing cushion of massaging bubbles. Airjets infuse humidified air into the water, creating a blissfully invigorating full-body massage, while the Bask® heated surface gently warms your back, shoulders, and neck for ultimate comfort.
The oval, ergonomic design cradles your body, inviting deep, restorative soaks. Graceful lines and a fluted shroud lend timeless appeal, making this versatile bath a beautiful fit for a variety of bathroom styles.
Features
Bask® heated surface creates spa-like relaxation with soothing warmth on your back, shoulders, and neck
Three heat settings allow you to customize the surface temperature
118 to 122 airjets release thousands of heated bubbles that surround and support the body in a warm massage
Automatic and manual purge cycles remove residual water from air channels after use
Variable-speed blower lets you adjust massage intensity to 18 levels
Freestanding design creates a striking focal point in your bathing area
16" (406 mm) depth offers a deep soaking experience
Integral lumbar support on both ends
Textured bottom surface
Wide ledge on one side is ideal for deck-mount faucet and/or handshower
Fluted shroud
Built-in 600W BubbleMassage™ heater warms humidified air before it enters the bath
Built-in 60W electric heater included to keep bath surface warm
Technology
Auto-shutoff timer on blower allows users to enjoy Heated BubbleMassage™ experience for 60 minutes before turning off

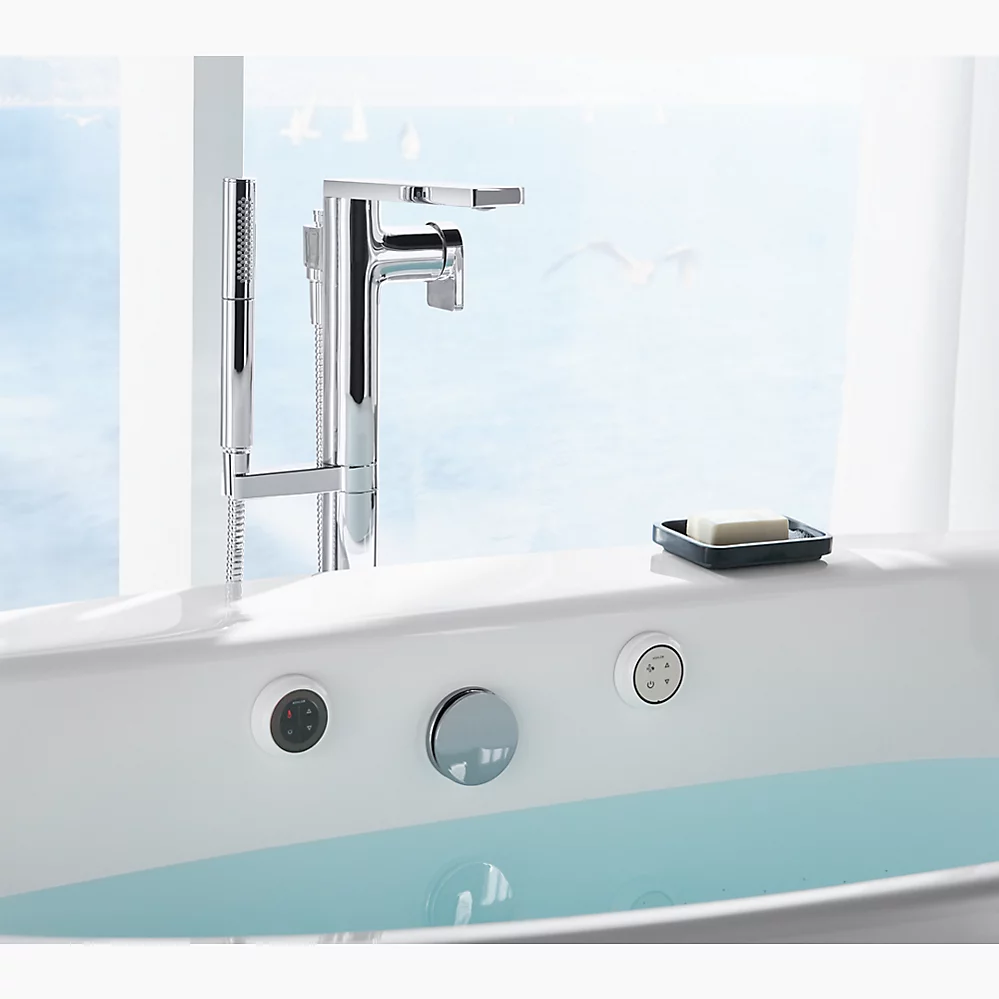

User interface: two separate electronic keypad controls for Heated BubbleMassage™ and Bask®
Material
Acrylic
Installation
Center drain
Freestanding
PureFlo drains are not recommended for a deck-mount faucet installation
120 V electrical requirement allows for easy installation with standard outlet
Requires two dedicated circuits
Remote blower motor installation required (relocation kit is included)
Required Products/Accessories
K-78438 30" cable bath drain
K-T37391 Rotary-turn bath drain trim
K-T37392 Rotary-turn bath drain trim
Recommended Products/Accessories
K-7265 Brass toe tap bath drain
Required Electrical Service
Two dedicated circuits required, protected with Class A GroundFault Circuit-Interrupter (GFCI). Outside North America, this device may be known as a Residual Current Device (RCD).
Blower, Heated Surface:
120 V, 15 A, 60 Hz
Heater: 120 V, 15 A, 60 Hz

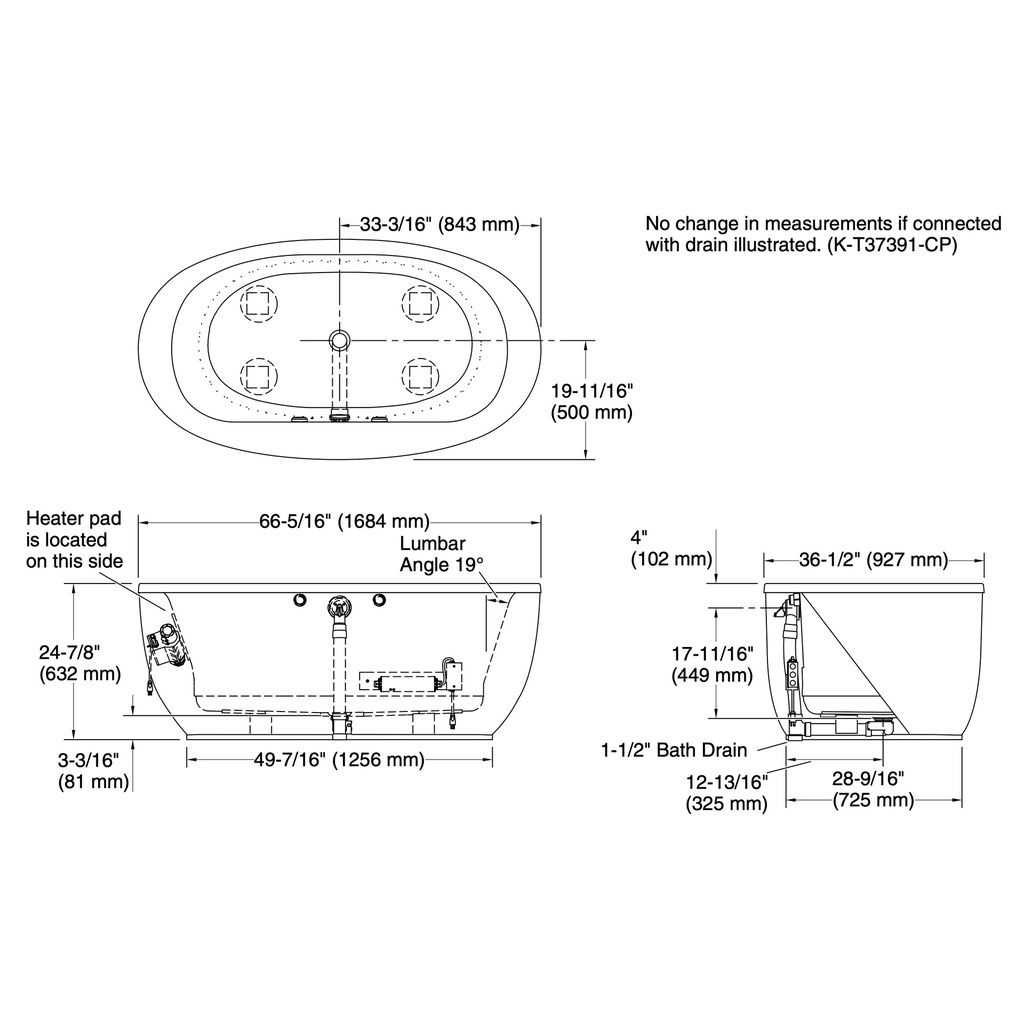

Technical Information
All product dimensions are nominal.
Drain location: Center
Basin area, bottom: 45-3/4" x 24-7/8" (1162 mm x 632 mm)
Basin area, top: 54-7/8" x 29-3/16" (1394 mm x 741 mm)
Weight: 110 lbs (49.9 kg)
Minimum floor load: 40.4 lbs/ft² (197.3 kg/m²)
Water depth: 15-3/4" (400 mm)
Water capacity: 72.6 gal (274.8 L)
Template: Footprint, 1245667, not required, not included
Electrical component rating:
Blower: 120 V, 10 A, 60 Hz
Heated Surface: 120 V, 0.5 A, 60 Hz
