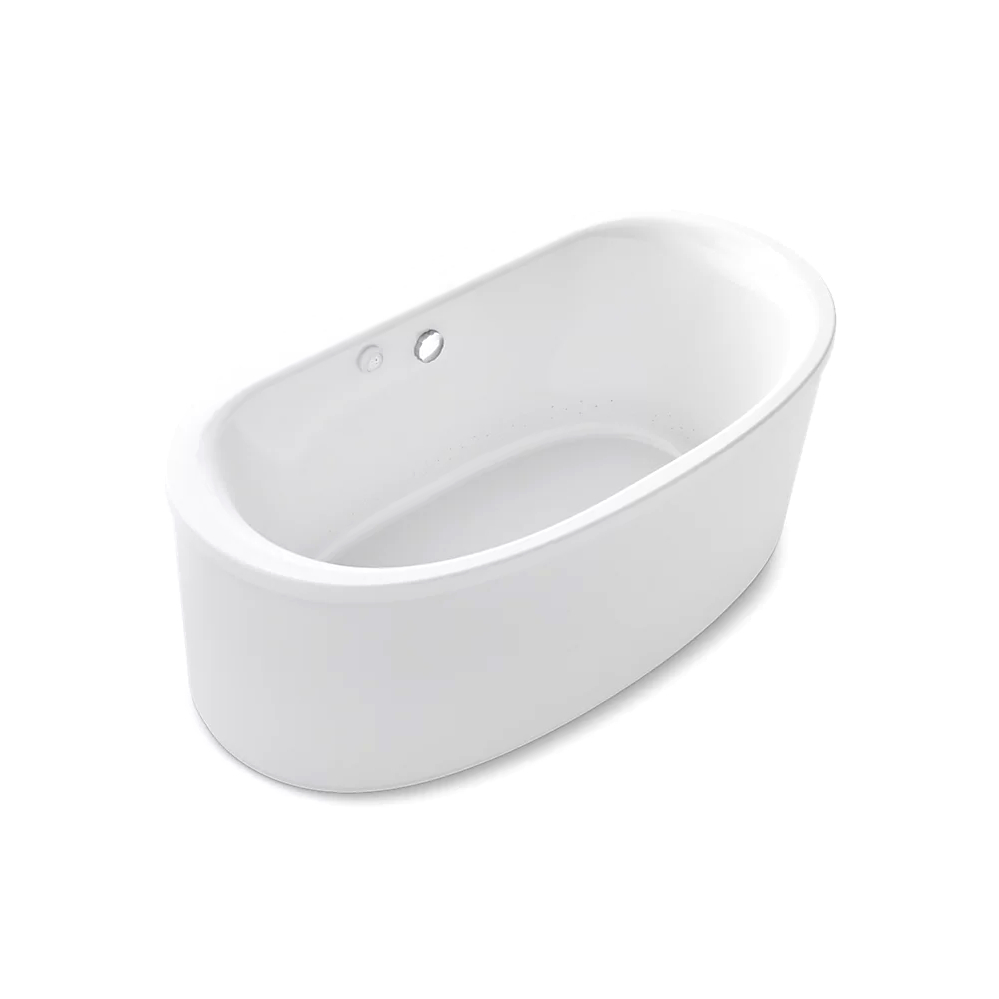

Kohler 1966-GHW-0 Sunstruck 65-1/2" x 35-1/2" Freestanding Heated Bubble Massage Air Bath White
Sunstruck®
65-1/2" x 35-1/2" freestanding Heated BubbleMassage™ air bath with Bask® heated surface and straight shroud
K-1966-GHW-0
Color/Finish: White
Completely surround your body in a soothing cushion of heated massaging bubbles in this Sunstruck® freestanding air bath. With airjets pushing humidified air through the water, this bath delivers a blissfully warm, invigorating full-body massage experience, while the heated surface warms your back, shoulders and neck.
The oval, ergonomic design supports your body for a deep, relaxing soak. With its gracefully shaped lines and straight shroud, this versatile bath complements a wide range of bathroom styles and offers easy three-step installation.
Features
Bask® heated surface creates spa-like relaxation with soothing warmth on your back, shoulders, and neck
Three heat settings allow you to customize the surface temperature
118 to 122 airjets release thousands of heated bubbles that surround and support the body in a warm massage
Automatic and manual purge cycles remove residual water from air channels after use
Variable-speed blower lets you adjust massage intensity to 18 levels
Freestanding design creates a striking focal point in your bathing area
16" (406 mm) depth offers a deep soaking experience
Integral lumbar support on both ends
Textured bottom surface
Wide ledge on one side is ideal for deck-mount faucet and/or handshower
Straight shroud
Built-in 600W BubbleMassage™ heater warms humidified air before it enters the bath
Built-in 60W electric heater included to keep bath surface warm
Technology
Auto-shutoff timer on blower allows users to enjoy Heated BubbleMassage™ experience for 60 minutes before turning off
User interface: two separate electronic keypad controls for Heated BubbleMassage™ and Bask®
Material
Acrylic
Installation
Center drain
Freestanding
PureFlo drains are not recommended for a deck-mount faucet installation
120 V electrical requirement allows for easy installation with standard outlet
Requires two dedicated circuits
Remote blower motor installation required (relocation kit is included)
Required Products/Accessories
K-T37391 Rotary-turn bath drain trim
K-T37392 Rotary-turn bath drain trim
Required Electrical Service
Two dedicated circuits required, protected with Class A GroundFault Circuit-Interrupter (GFCI). Outside North America, this device may be known as a Residual Current Device (RCD).
Blower, Heated Surface:
120 V, 15 A, 60 Hz
Heater: 120 V, 15 A, 60 Hz

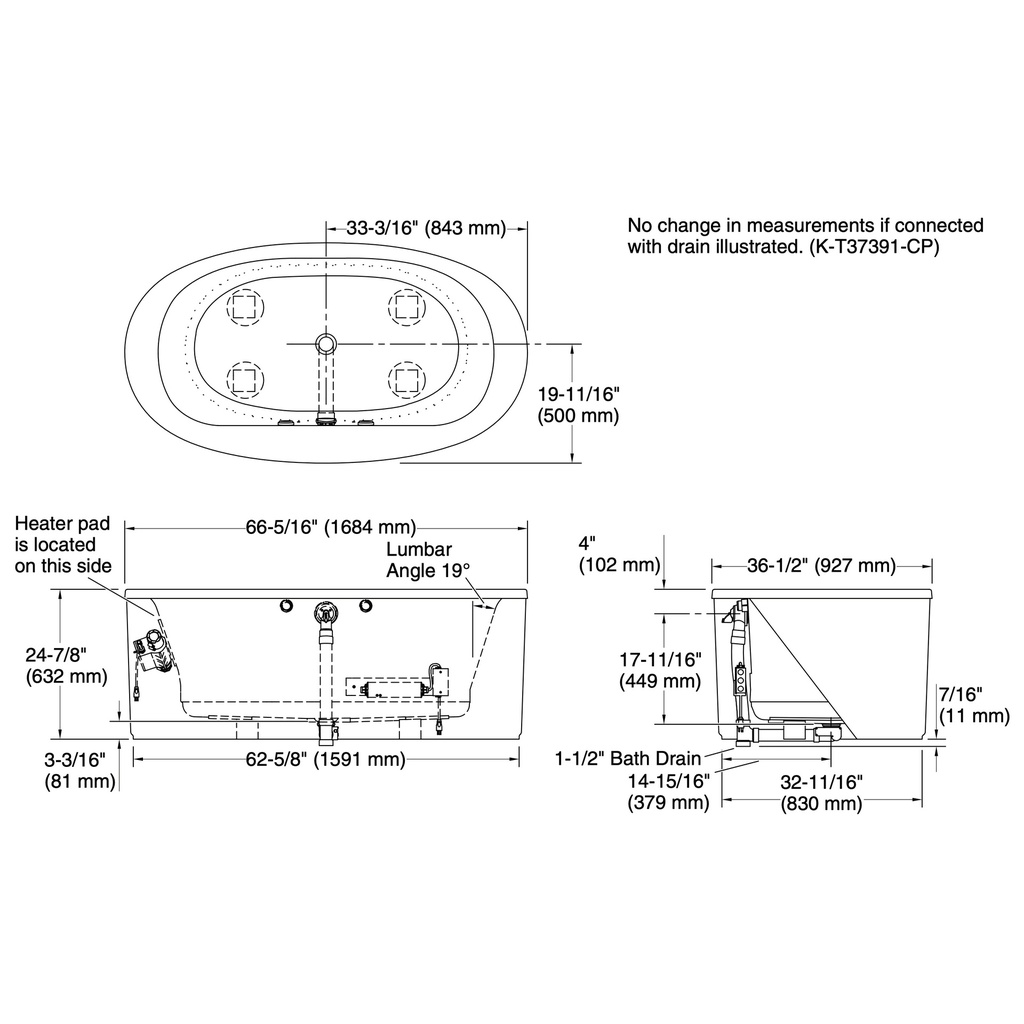

Technical Information
All product dimensions are nominal.
Drain location: Center
Basin area, bottom: 45-3/4" x 24-7/8" (1162 mm x 632 mm)
Basin area, top: 54-7/8" x 29-3/16" (1394 mm x 741 mm)
Weight: 91 lbs (41.3 kg)
Minimum floor load: 40.4 lbs/ft² (197.3 kg/m²)
Water depth: 15-3/4" (400 mm)
Water capacity: 72.6 gal (274.8 L)
Template: Footprint, 1245666, not required, not included
Electrical component rating:
Blower: 120 V, 10 A, 60 Hz
Heated Surface: 120 V, 0.5 A, 60 Hz
