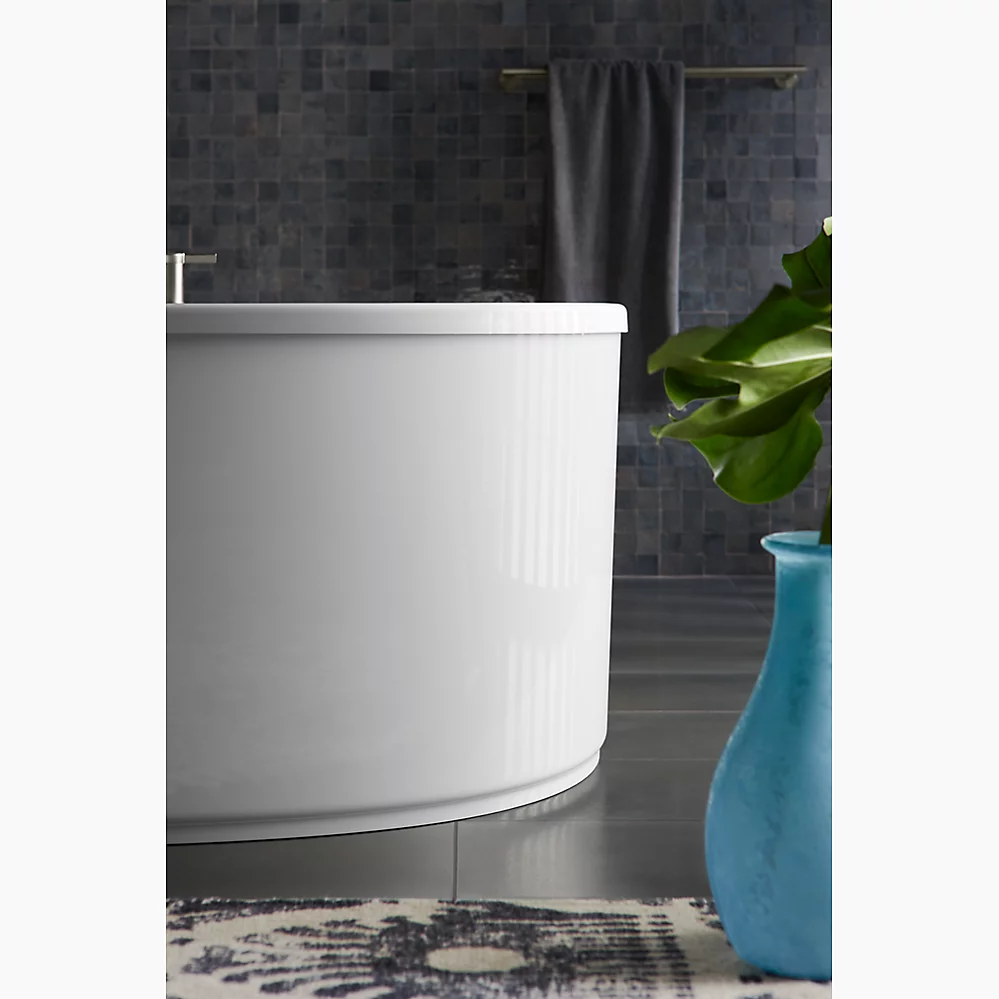

Kohler 1966-GH-0 Sunstruck 65-1/2" x 35-1/2" Freestanding Heated Bubble Massage Air Bath White
Sunstruck®
65-1/2" x 35-1/2" freestanding Heated BubbleMassage™ air bath with straight shroud
K-1966-GH-0
Color/Finish: White
Completely surround your body in a soothing cushion of heated massaging bubbles in this Sunstruck® freestanding air bath. With airjets pushing humidified air through the water, this bath delivers a blissfully warm, invigorating full-body massage experience.
The oval, ergonomic design supports your body for a deep, relaxing soak. With its gracefully shaped lines and straight shroud, this versatile bath complements a wide range of bathroom styles and offers easy three-step installation.
Features
118 to 122 airjets release thousands of heated bubbles that surround and support the body in a warm massage
Automatic and manual purge cycles remove residual water from air channels after use
Variable-speed blower lets you adjust massage intensity to 18 levels
Freestanding design creates a striking focal point in your bathing area
16" (406 mm) depth offers a deep soaking experience
Integral lumbar support on both ends
Textured bottom surface
Wide ledge on one side is ideal for deck-mount faucet and/or handshower
Straight shroud
Built-in 600W BubbleMassage™ heater warms humidified air before it enters the bath
Technology
Auto-shutoff timer on blower allows users to enjoy Heated BubbleMassage™ experience for 60 minutes before turning off
User interface: electronic keypad control
Material
Acrylic
Installation
Center drain
Freestanding
PureFlo drains are not recommended for a deck-mount faucet installation
120 V electrical requirement allows for easy installation with standard outlet
Requires one dedicated circuit
Remote blower motor installation required (relocation kit is included)
Required Products/Accessories
K-T37391 Rotary-turn bath drain trim
K-T37392 Rotary-turn bath drain trim
K-78438 30" cable bath drain
Recommended Products/Accessories
K-7265 Brass toe tap bath drain
K-23726 Drain treatment
Required Electrical Service
Two dedicated circuits required, protected with Class A GroundFault Circuit-Interrupter (GFCI). Outside North America, this device may be known as a Residual Current Device (RCD).
Blower: 120 V, 15 A, 60 Hz
Heater: 120 V, 15 A, 60 Hz

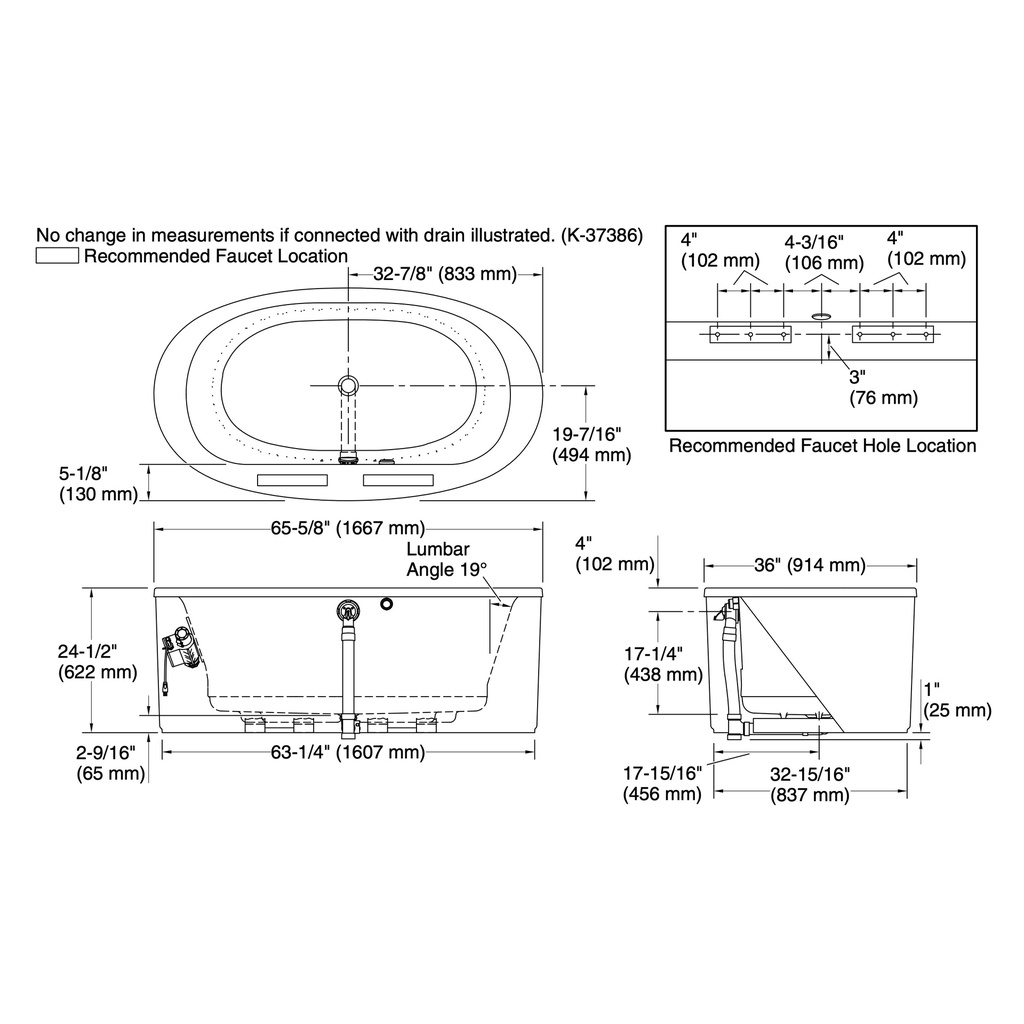

Technical Information
All product dimensions are nominal.
Drain location: Center
Basin area, bottom: 45-3/4" x 24-7/8" (1162 mm x 632 mm)
Basin area, top: 54-7/8" x 29-3/16" (1394 mm x 741 mm)
Weight: 100 lbs (45.4 kg)
Minimum floor load: 40.4 lbs/ft² (197.3 kg/m²)
Water depth: 15-3/4" (400 mm)
Water capacity: 72.6 gal (274.8 L)
Template: Footprint, 1245666, not required, not included
Electrical component rating:
Blower: 120 V, 10 A, 60 Hz
Heater: 120 V, 5 A, 60 Hz
