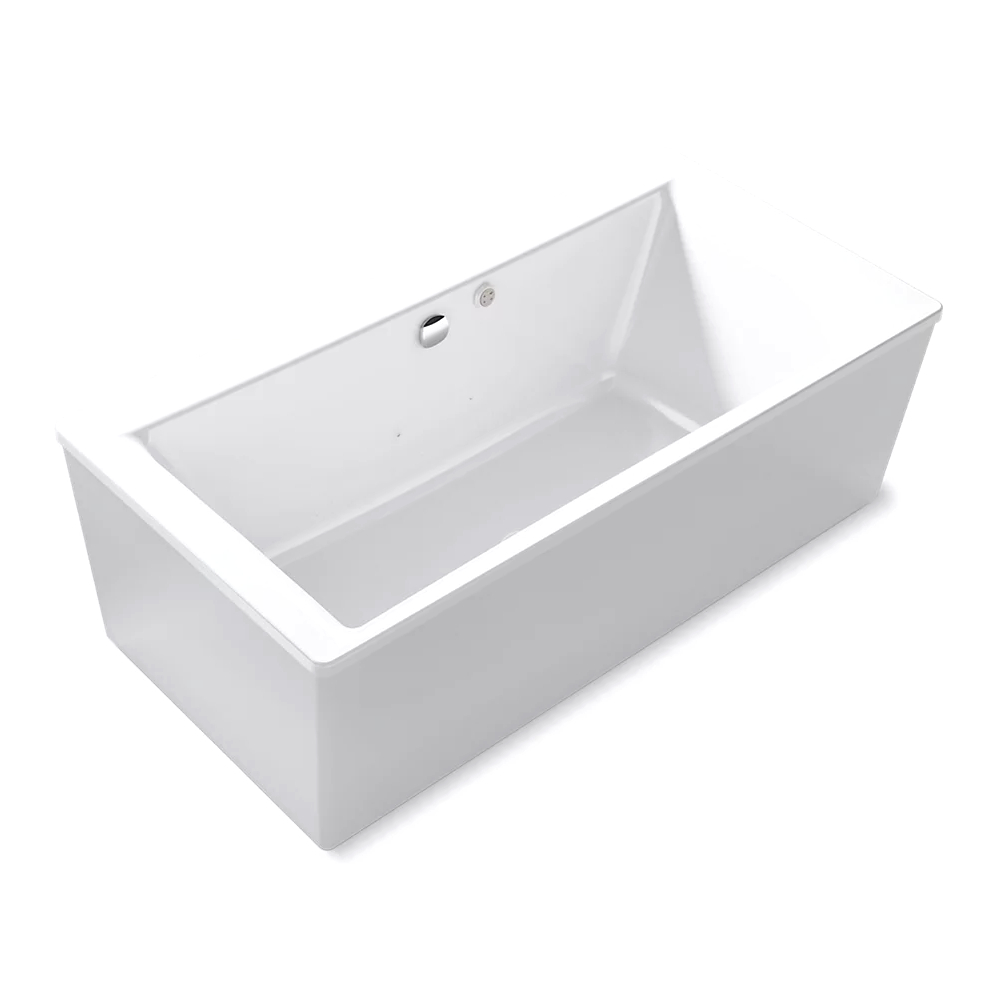

Kohler 1958-GH-0 Stargaze 72" x 36" Freestanding Heated Bubble Massage Air Bath White
Stargaze®
72" x 36" freestanding Heated BubbleMassage™ air bath with straight shroud
K-1958-GH-0
Color/Finish: White
Completely surround your body in a soothing cushion of heated massaging bubbles in this Stargaze® freestanding air bath. With airjets pushing humidified air through the water, this bath delivers a blissfully warm, invigorating full-body massage experience.
Made for deep soaking and relaxation, the ergonomic design lets you stretch out in full comfort. With its crisp, clean lines and straight shroud, this versatile bath complements a wide range of bathroom styles and offers easy three-step installation.
Features
118 to 122 airjets release thousands of heated bubbles that surround and support the body in a warm massage
Automatic and manual purge cycles remove residual water from air channels after use
Variable-speed blower lets you adjust massage intensity to 18 levels
Freestanding design creates a striking focal point in your bathing area
16" (406 mm) depth offers a deep soaking experience
Integral lumbar support on both ends
Textured bottom surface
Wide ledge on one side is ideal for deck-mount faucet and/or handshower
Straight shroud
Built-in 600W BubbleMassage™ heater warms humidified air before it enters the bath
Technology
Auto-shutoff timer on blower allows users to enjoy Heated BubbleMassage™ experience for 60 minutes before turning off
User interface: electronic keypad control
Material
Acrylic
Installation
Center drain
Freestanding
PureFlo drains are not recommended for a deck-mount faucet installation
120 V electrical requirement allows for easy installation with standard outlet
Requires one dedicated circuit
Remote blower motor installation required (relocation kit is included)
Required Products/Accessories
For freestanding installation
K-7265 Brass toe tap bath drain
Recommended Products/Accessories
K-23726 Drain treatment
Required Electrical Service
Two dedicated circuits required, protected with Class A GroundFault Circuit-Interrupter (GFCI). Outside North America, this device may be known as a Residual Current Device (RCD).
Blower: 120 V, 15 A, 60 Hz
Heater: 120 V, 15 A, 60 Hz

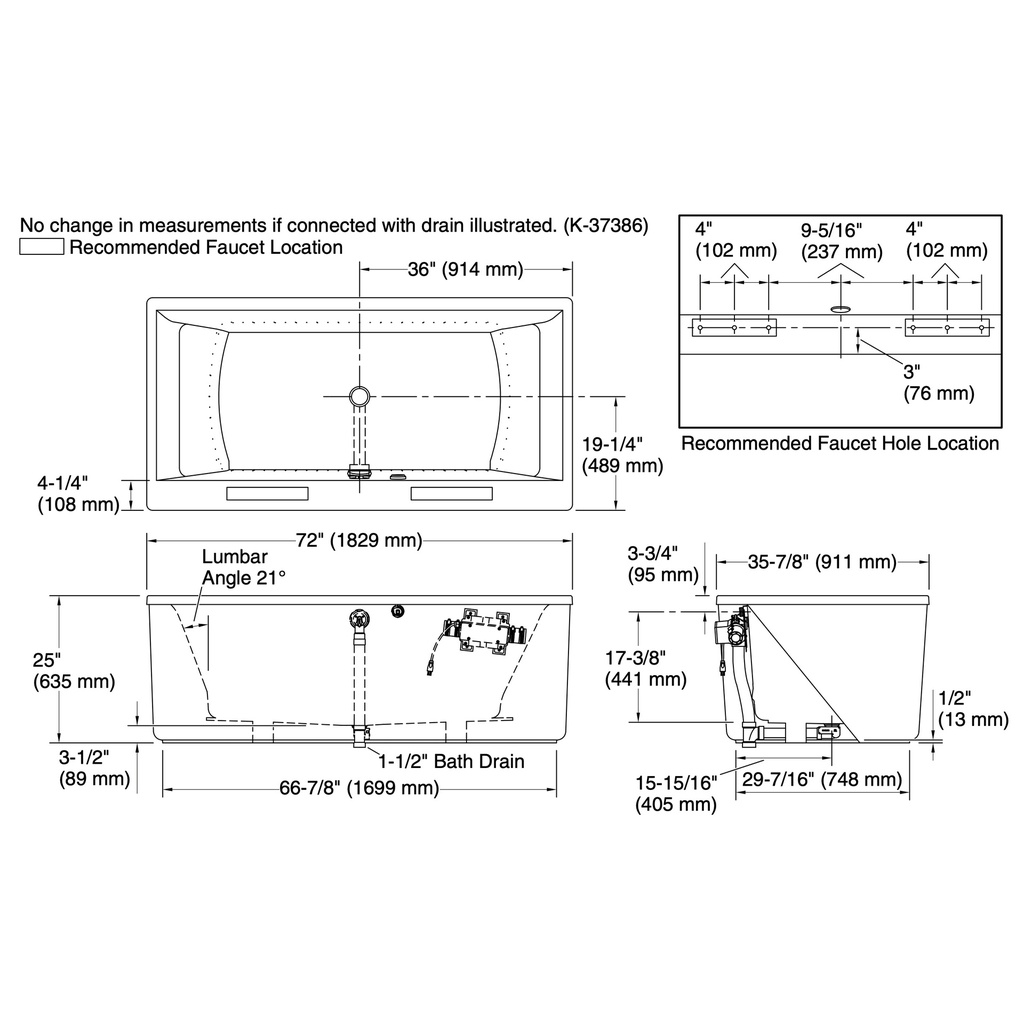

Technical Information
All product dimensions are nominal.
Drain location: Center
Basin area, bottom: 50-3/4" x 24-7/8" (1289 mm x 632 mm)
Basin area, top: 67-5/8" x 29-3/16" (1718 mm x 741 mm)
Weight: 100 lbs (45.4 kg)
Minimum floor load: 45 lbs/ft² (219.7 kg/m²)
Water depth: 15-11/16" (399 mm)
Water capacity: 90 gal (340.7 L)
Template: Footprint, 1245664, not required, included
Electrical component rating:
Blower: 120 V, 10 A, 60 Hz
Heater: 120 V, 5 A, 60 Hz
