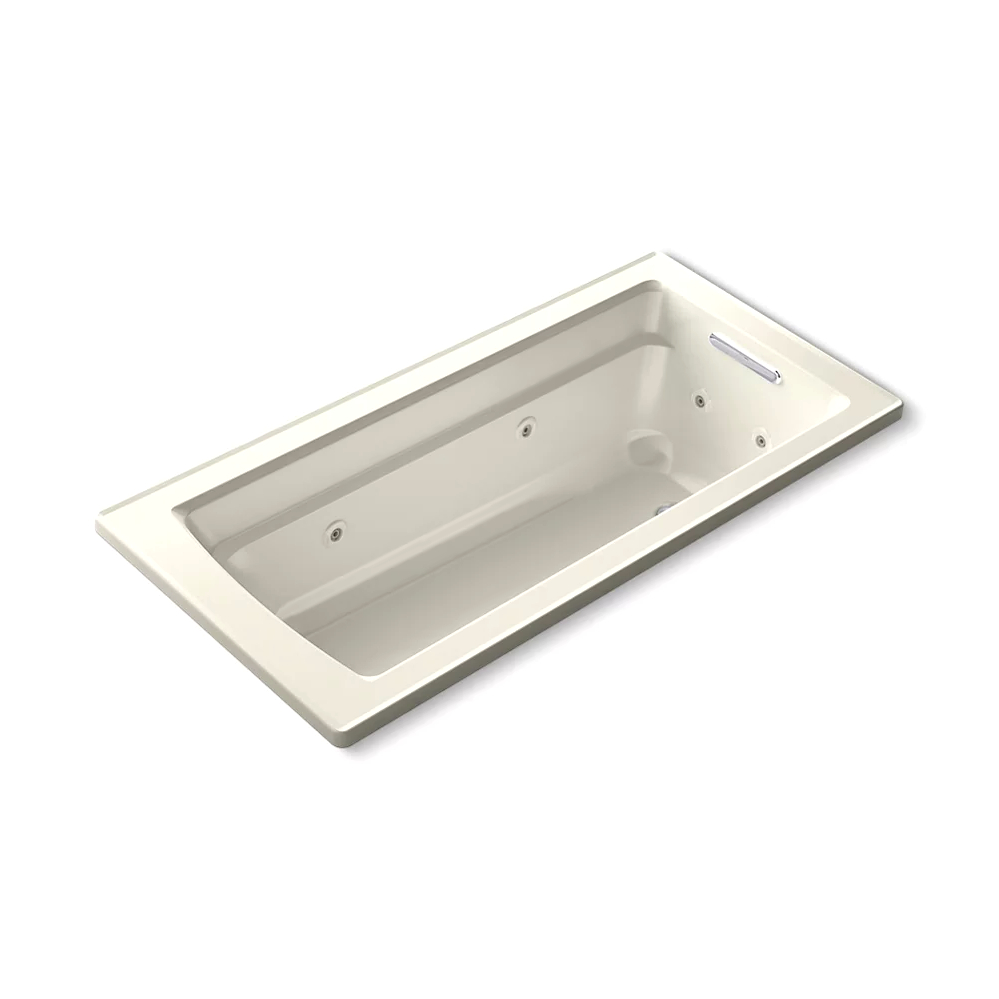

Kohler 1949-W1-96 Archer 66" x 32" Drop-in Whirlpool Heated Bath Biscuit
Archer®
66" x 32" drop-in whirlpool bath with Bask® heated surface
K-1949-W1-96
Color/Finish: Biscuit
Taking its design cues from traditional Craftsman furniture, the Archer line of baths reveals beveled edges and curved bases for a clean, sophisticated style. This bath offers a low step-over height while allowing deep, comfortable soaking.
Whirlpool jets relax away the day's tension as armrests and a lumbar arch gently support the natural curves of your body. In addition, the Bask heated surface warms your back, shoulders, and neck with adjustable temperature settings to create a soothing environment.
Features
Bask® heated surface creates spa-like relaxation with soothing warmth on your back, shoulders, and neck
Three heat settings allow you to customize the surface temperature

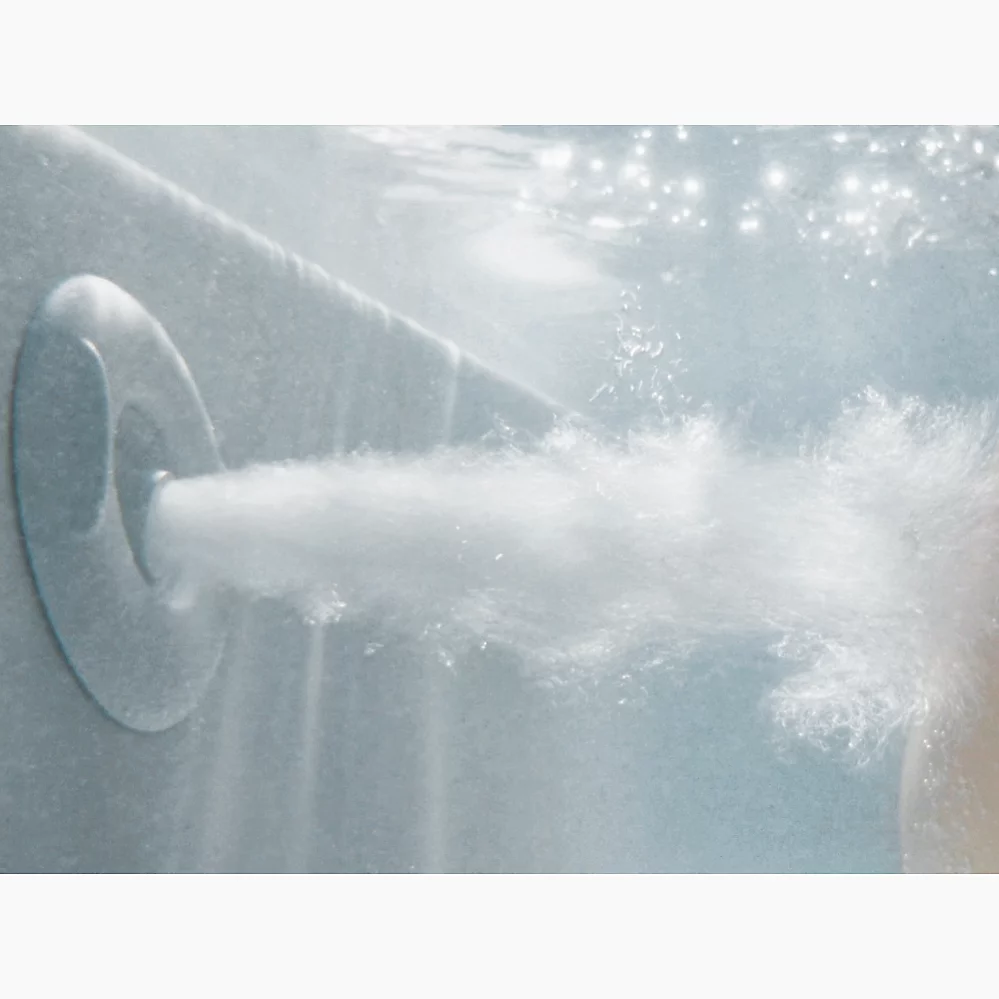

Single-speed whirlpool offers performance and value with 8 fully adjustable jets
Hydromassage flow and direction can be controlled at each jet
Comfort Depth® design offers a convenient 19" step-over height while retaining the same depth as a standard 21" bath
Integral lumbar support
Slotted overflow allows for deep soaking
Textured bottom surface
Coordinates with other products in the Archer collection
Hydrotherapy
Whirlpool
Material
Acrylic
Installation
Reversible drain
Drop-in
Required Products/Accessories
K-7271 Brass Slotted Overflow Bath Drain
K-7272 PVC Slotted Overflow Bath Drain
Recommended Products/Accessories
K-23726 Drain treatment
Required Electrical Service
One dedicated circuit required, protected with Class A GroundFault Circuit-Interrupter (GFCI). Outside North America, this device may be known as a Residual Current Device (RCD).
Pump, Heated Surface:
120 V, 15 A, 60 Hz

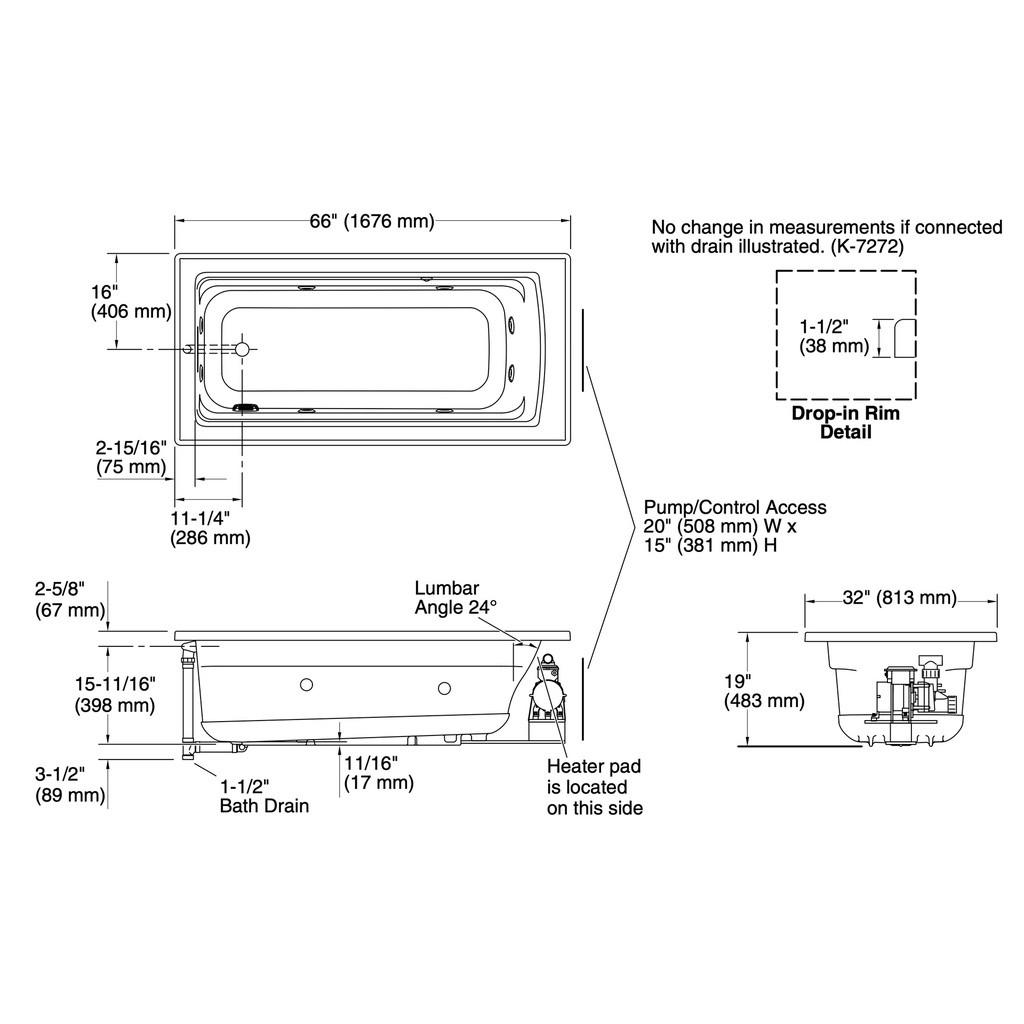

Technical Information
All product dimensions are nominal.
Drain location: Reversible
Basin area, bottom: 50-3/8" x 19-5/8" (1280 mm x 498 mm)
Basin area, top: 57-5/16" x 24-1/16" (1456 mm x 611 mm)
Weight: 116 lbs (52.6 kg)
Minimum floor load: 47.2 lbs/ft² (230.5 kg/m²)
Water depth: 15-5/16" (389 mm)
Water capacity: 66 gal (249.8 L)
Cutout: Drop-in, 64-1/2" x 30-1/2" (1638 mm x 775 mm)
Electrical component rating:
Pump: 120 V, 7 A, 60 Hz
Heated Surface: 120 V, 0.5 A, 60 Hz, 65
